Product Overview

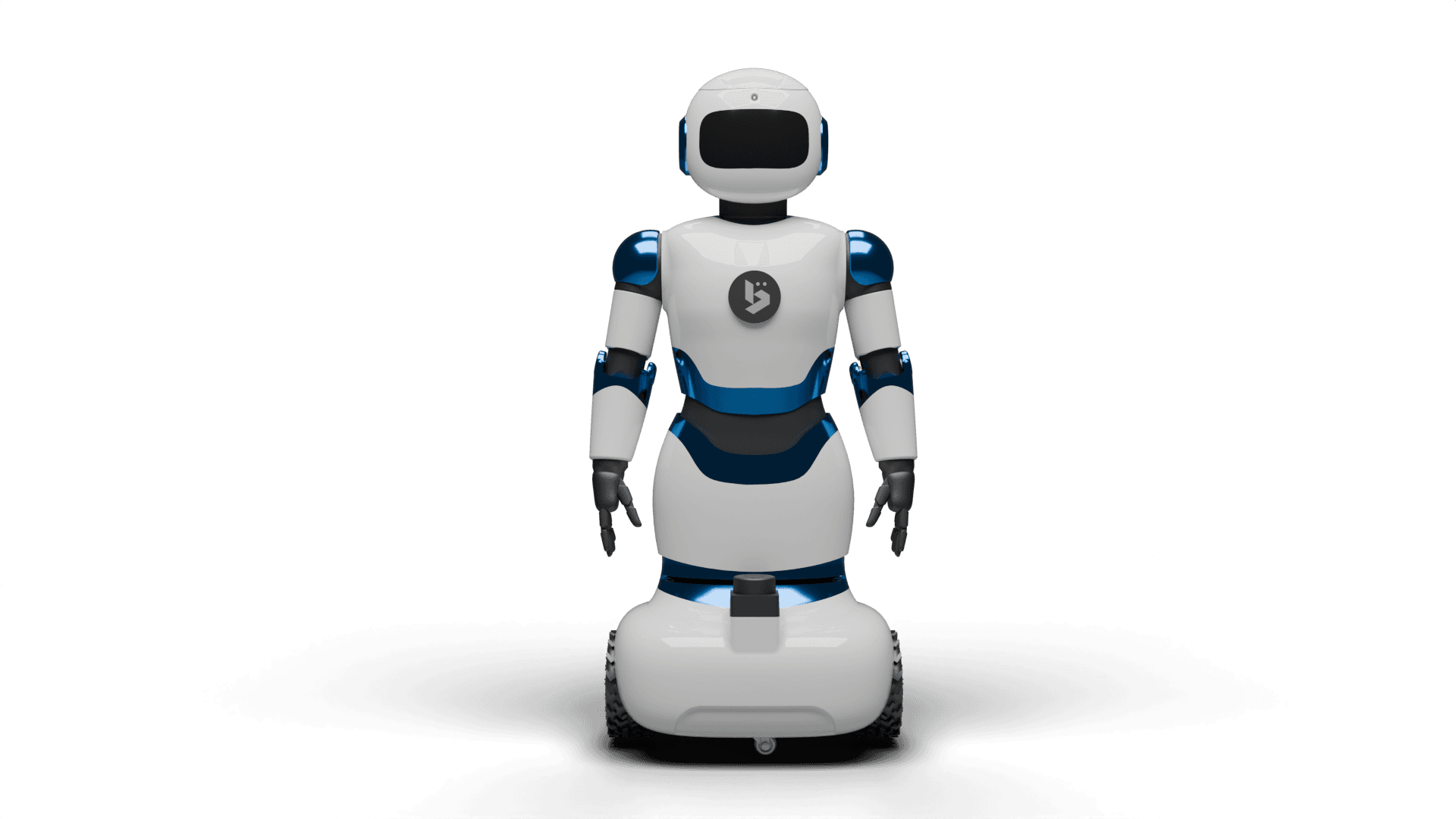

Meet BonicBot A2
The ultimate educational mobile humanoid, built on a full ROS 2 stack and engineered to take you from fundamental STEM concepts to advanced robotics. With professional-grade SLAM, Nav2 navigation, and a rich Python SDK, it delivers a hands-on platform for mastering real-world robotic engineering — complemented by a mobile app for intuitive control, AI vision, and robot interaction.
Product Summary
Thank you for choosing BonicBot A2.
BonicBot A2 is a cutting-edge humanoid robot designed for learning, prototyping, and exploring AI. With its modular 80 cm platform featuring 3D printed parts, BonicBot A2 combines smartphone-based AI, ROS2 navigation, and real-time actuator control.
The platform enables:
- 🏎️ Autonomous movement via LiDAR and ROS 2
- 🤖 7 Degrees of Freedom including 2 DOF from the differential drive system
- 👁️ Computer vision & AI agent powered by on-device Computer Vision and agent capabilities
- 📱 Mobile app control for real-time robot operation, monitoring, and AI interaction
- 🎭 Expressive interactions using the RGB LED Matrix face
- 💻 Flexible programming with Python, ROS 2, and Blockly
BonicBot A2 is ideal for hands-on robotics education, engineering labs, makerspaces, and rapid experimentation.
System Architecture
BonicBot A2 uses a hybrid compute architecture to deliver high performance:
- 🧠 Raspberry Pi 4 Layer: The core “brain” running ROS 2, handling SLAM, autonomous navigation, computer vision, and high-level sensor fusion.
- ⚡ ESP32 Layer: The “spine” managing real-time motor execution, precise servo control, and hardware communication.
- 📱 Mobile App: A companion interface for robot control, monitoring, AI interaction, and emotive face display.
This layered design ensures smooth navigation, responsive movement, and clean separation of responsibilities for software development.
The hardware is modular, with upgrade paths for arms, grippers, and additional accessories.
Specifications
⚙️ Hardware Specifications
| Category | Specification |
|---|---|
| Height | 80 cm |
| Weight | ~6.5 kg |
| Degrees of Freedom | 7 DOF (expandable to 11 with add-on arms) |
| Compute | Raspberry Pi 4 (8 GB) |
| Navigation | LiDAR |
| Display | RGB LED Matrix (expressive face) |
| Battery | 4,400 mAh |
| Connectivity | Wi-Fi 6, Bluetooth 5.3 |

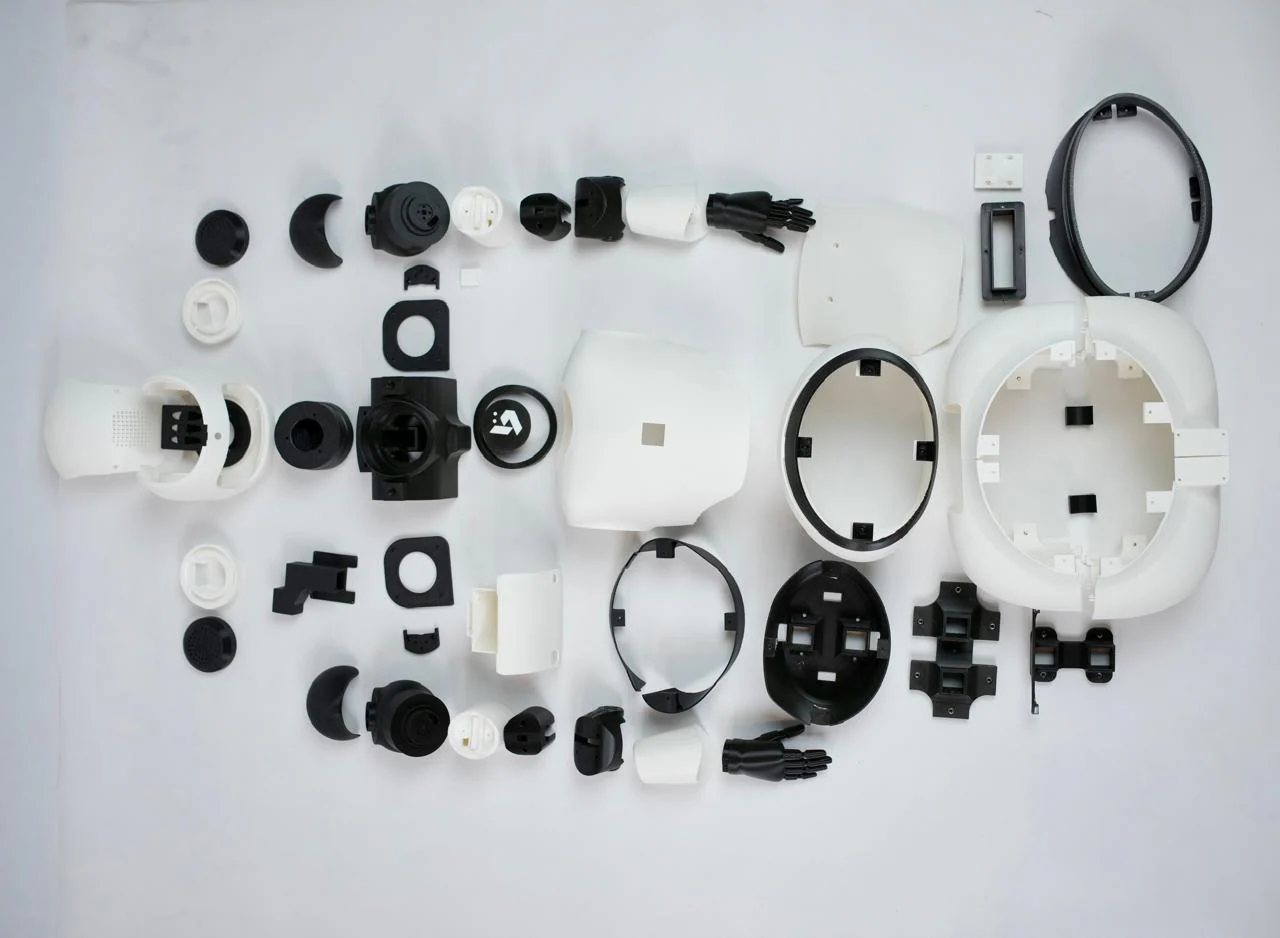

| Material | 3D-printed chassis, modular frame |
🖥️ Software Specifications
| Component | Specification |
|---|---|
| Operating Framework | ROS2 |
| Navigation | SLAM + Nav2 (ROS) |
| AI Integration | Smartphone-based AI, VLM support |
| Programming | Python SDK, Blockly, ROS2 |
| Simulation | Gazebo support |
| Cloud Platform | Remote control, monitoring, multi-robot management |
Key Features
🗺️ Autonomous Navigation
- LiDAR-based mapping and localisation
- Nav2-based autonomous path planning
- Real-time obstacle detection and avoidance
- Ability to save and reuse custom maps
💻 Multi-Environment Programming Support
BonicBot A2 supports four main development environments:
-
Python SDK
High-level API for scripting behaviours and automation. -
ROS2
Full robotics stack for SLAM, navigation, and research workflows. -
Blockly
Drag-and-drop visual programming for beginners and classroom use.
🧠 ROS 2 Capabilities
- Full ROS 2 stack with SLAM Toolbox and Nav2
- Autonomous mapping, localisation, and path planning
- Sensor fusion with LiDAR and onboard cameras
- Gazebo simulation support for testing and development
- Extensible with custom ROS 2 nodes and packages
📱 Mobile App
- Intuitive robot control and real-time monitoring
- Camera-based AI vision features
- Multi-language voice interaction
- LED facial expression control
🧩 Modular Design
- Plug-and-play arms
- Grippers and holders
- Expansion points for add-ons and accessories
☁️ Cloud Connectivity
- Remote robot control
- Parameter monitoring and diagnostics
- Fleet management capabilities
- Over-the-air updates
🎓 Educational & Research Ready
- Suitable for robotics courses and workshops
- Ideal for engineering labs and makerspaces
- Compatible with ROS tools, Gazebo, and Python-based workflows
Tier-wise Product Variants
BonicBot A2 is available in two main configurations:
- Fully Finished Robot (Premium Tier)
- Ready-to-Assemble Kit (RTA Kit)

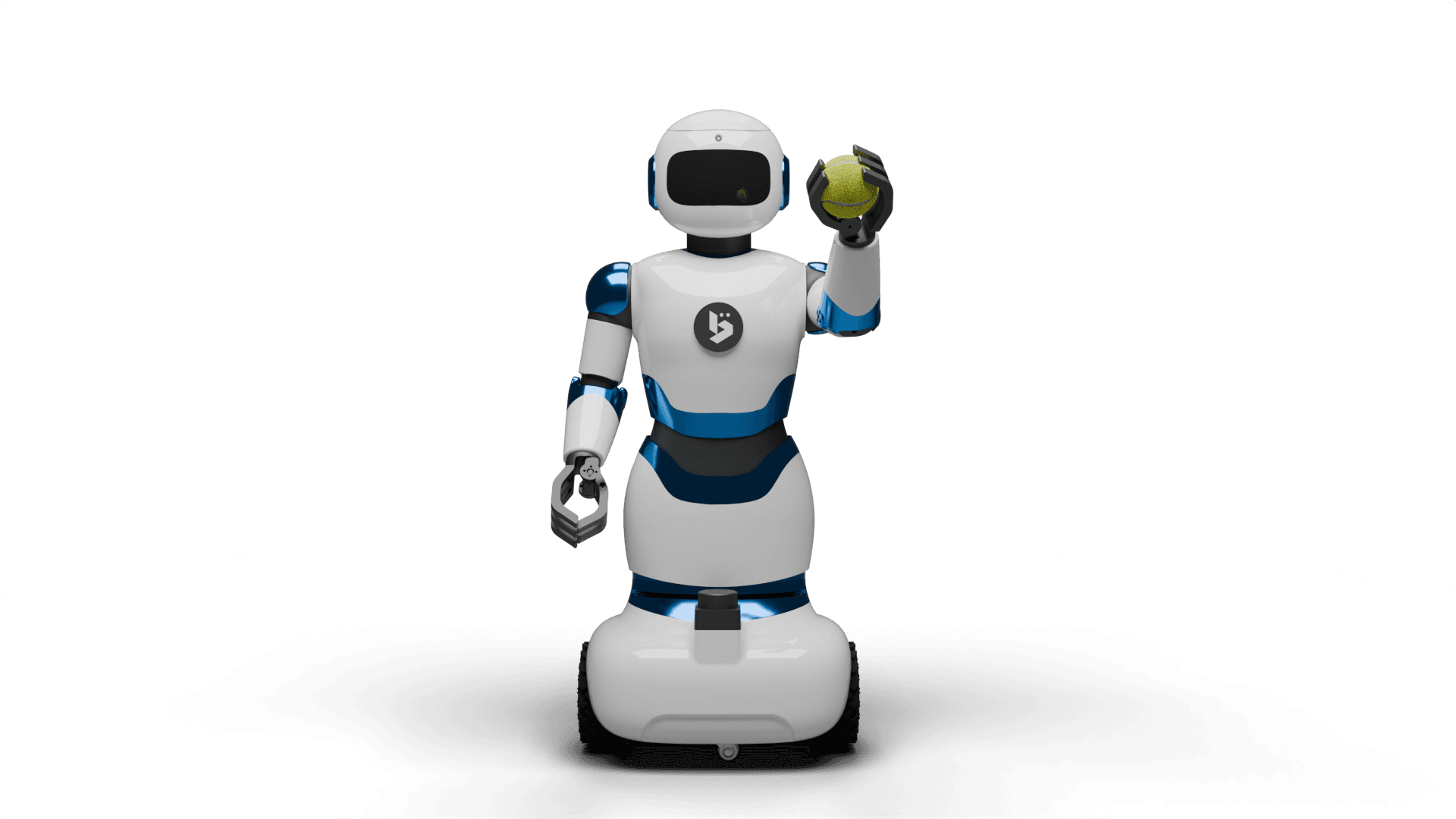

Premium Tier (Fully Assembled)
The Fully Finished Robot is a ready-to-use BonicBot A2 that arrives:
- Completely assembled
- Calibrated
- Factory tested

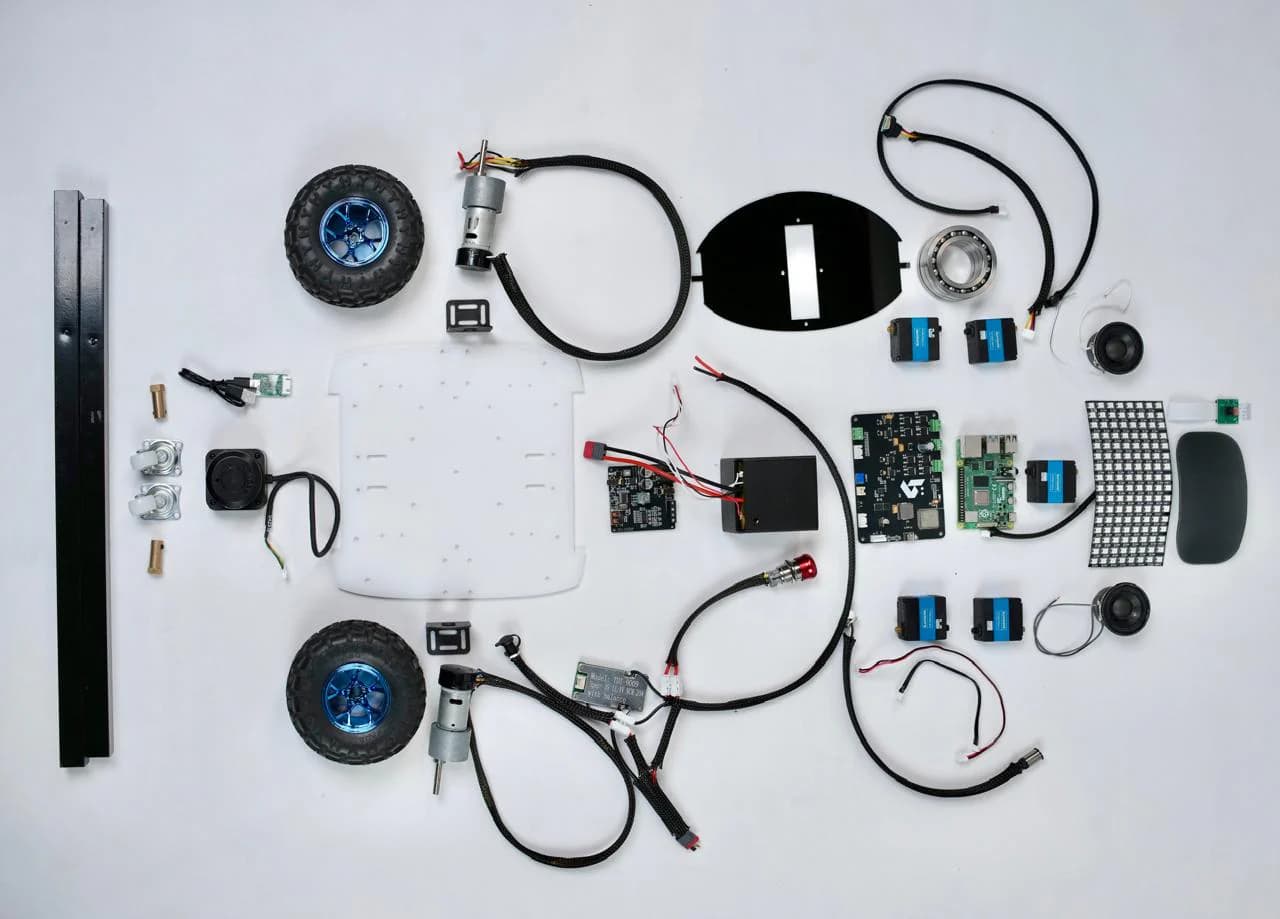

All essential electronics, mechanical parts, and internal wiring are pre-installed.
To get started with your Premium Bot, go to this link: Start Usage
