Right Hand Parts
This document defines the validated print orientation, slicing view, and raft requirements for all BonicBot A2 hand and arm components for the right side.
1. ShoulderJointRight

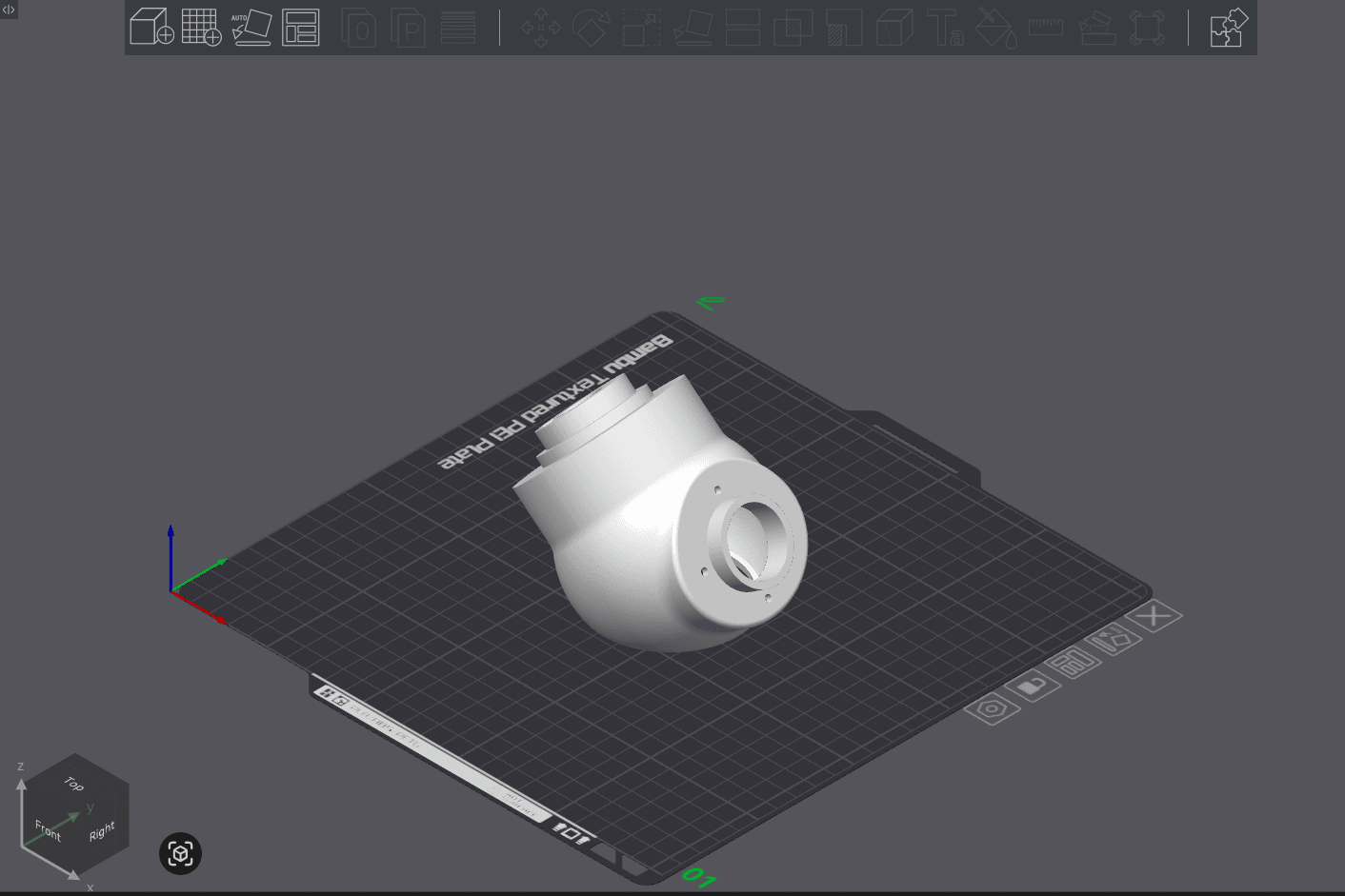

Pre-Sliced View (Raw Model on Build Plate)

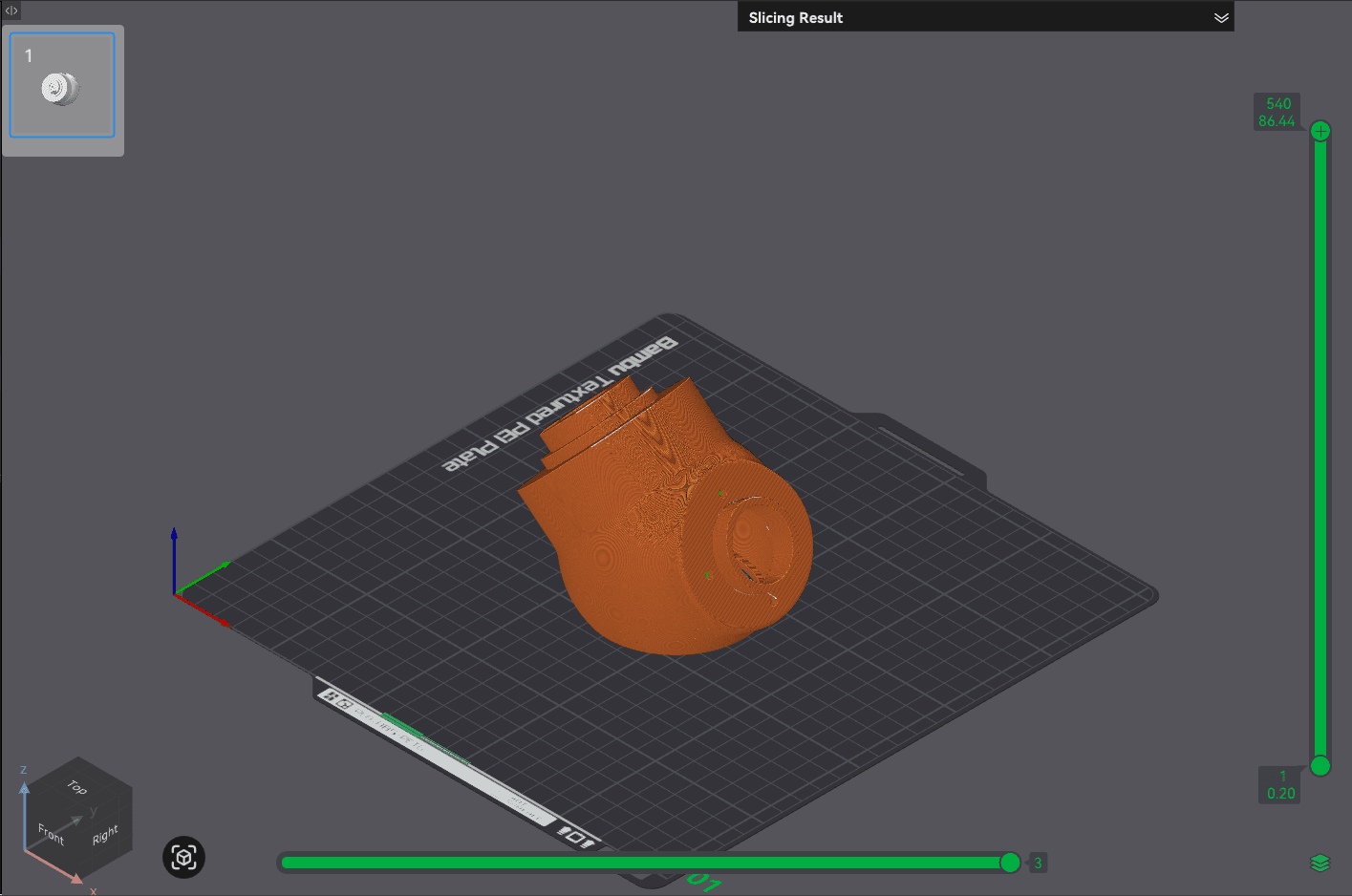

Post-Sliced View (Slicer Preview)
Raft not required.
2. ShoulderCoverRight

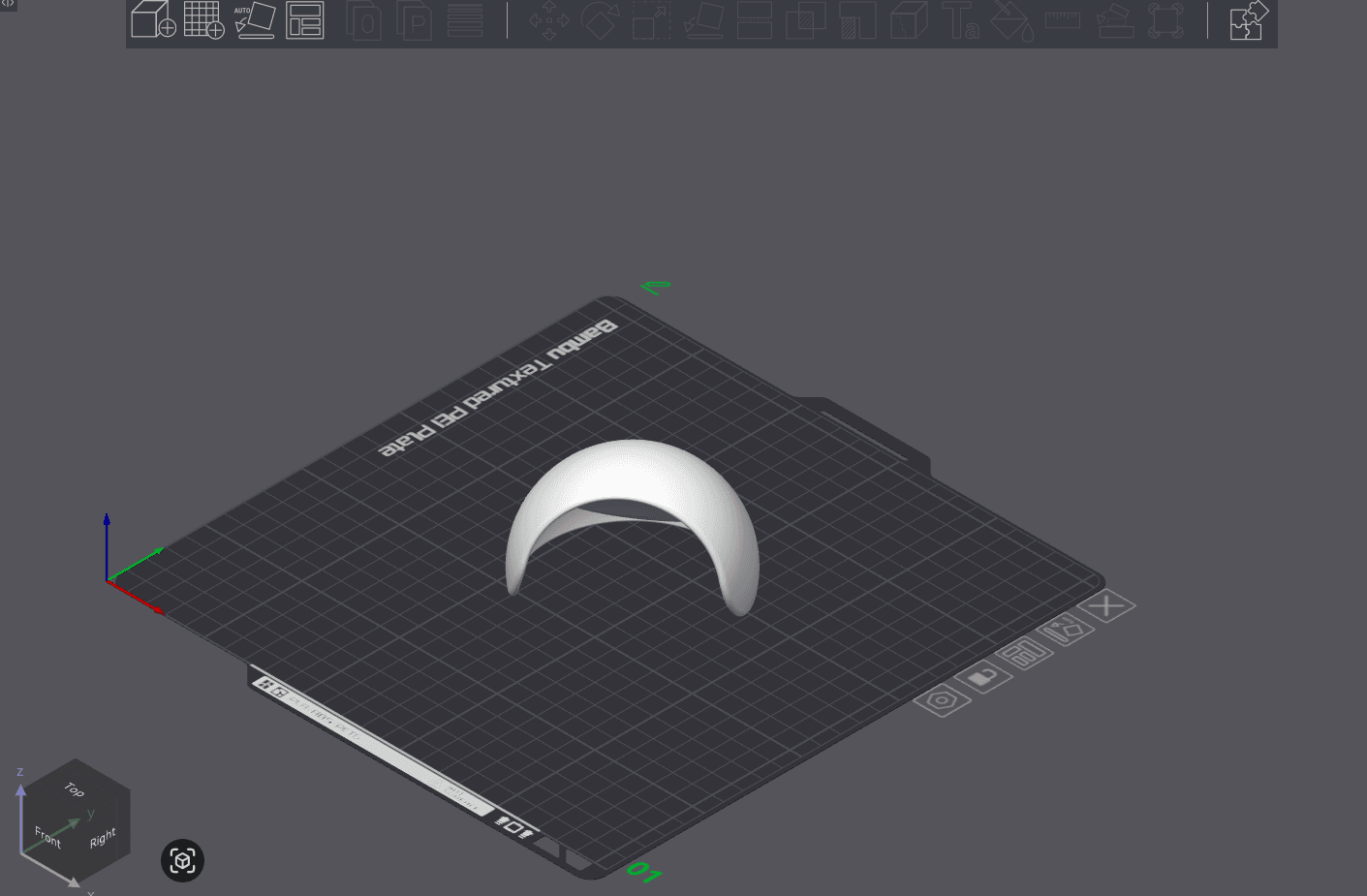

Pre-Sliced View (Raw Model on Build Plate)

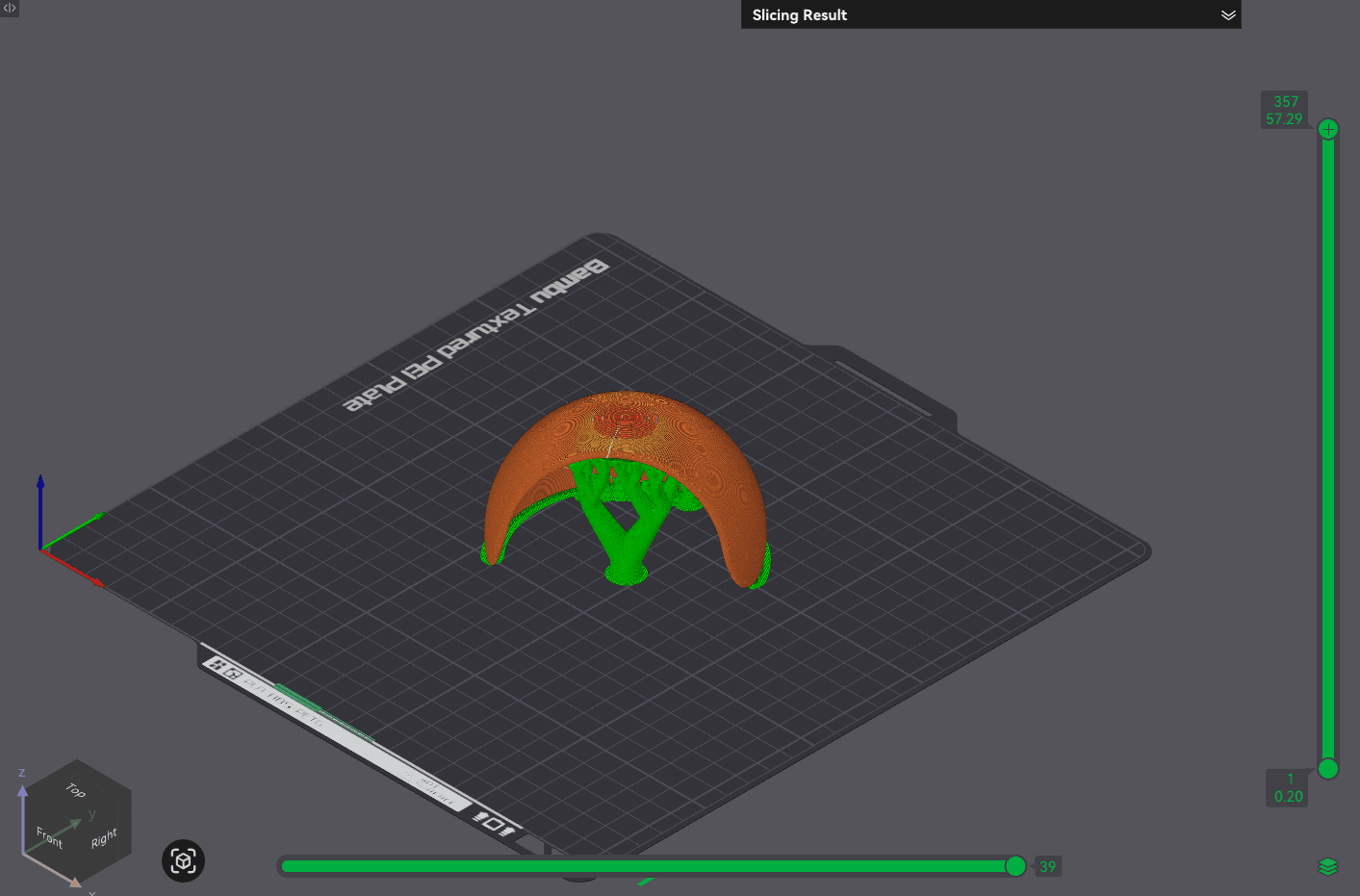

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
3. UpperArmRight

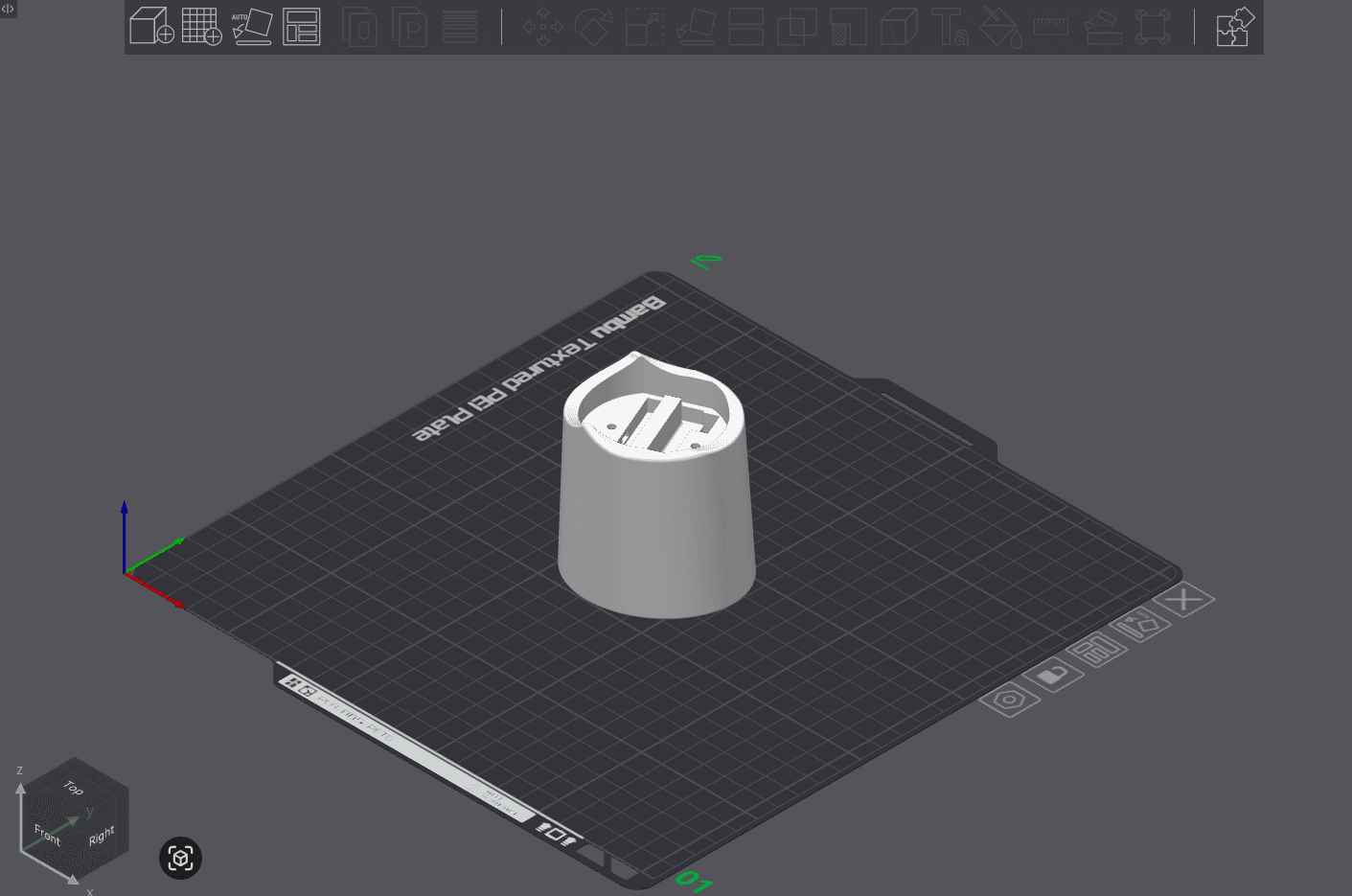

Pre-Sliced View (Raw Model on Build Plate)

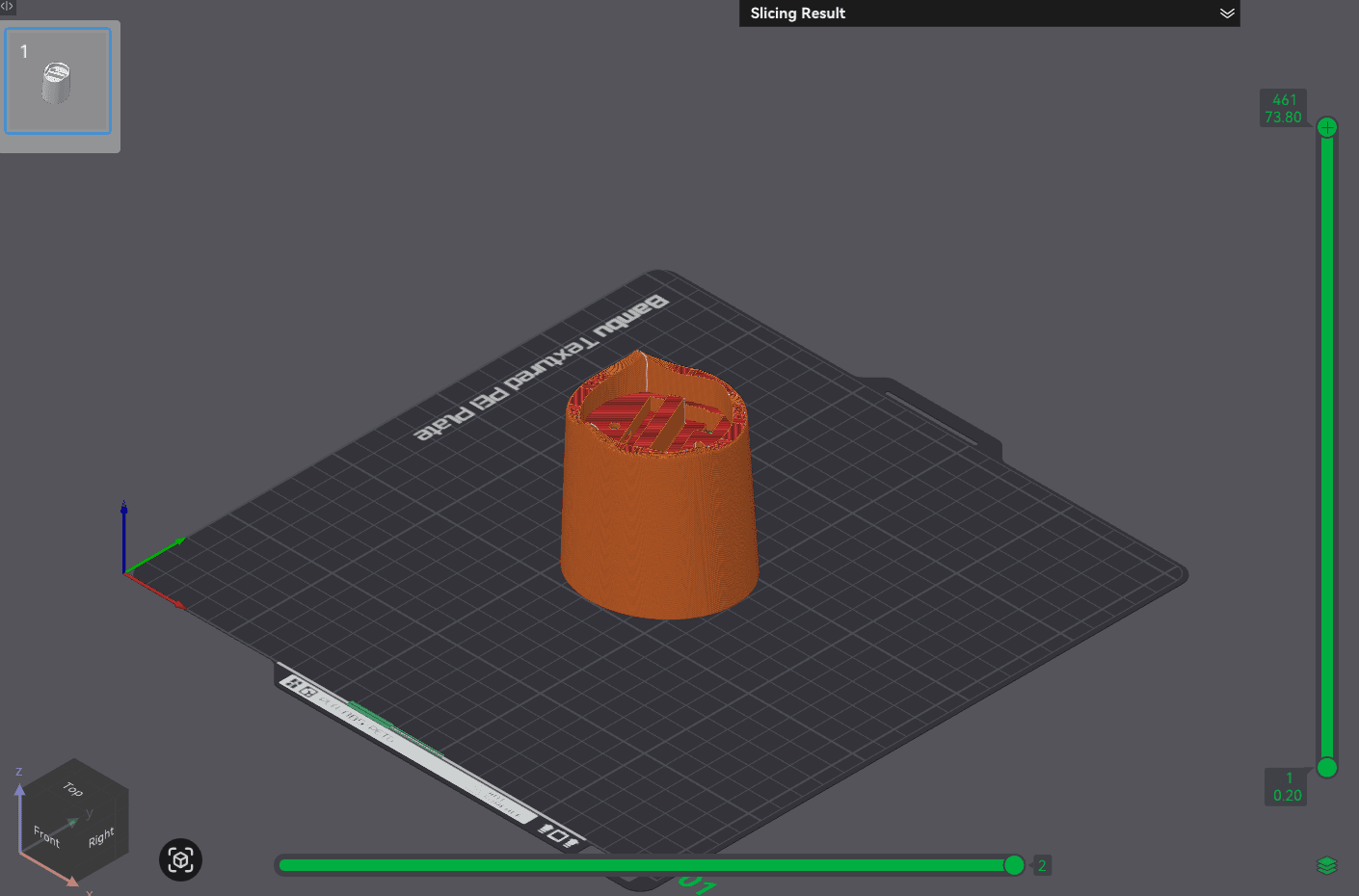

Post-Sliced View (Slicer Preview)
Raft not required.
4. ElbowServoMountRight

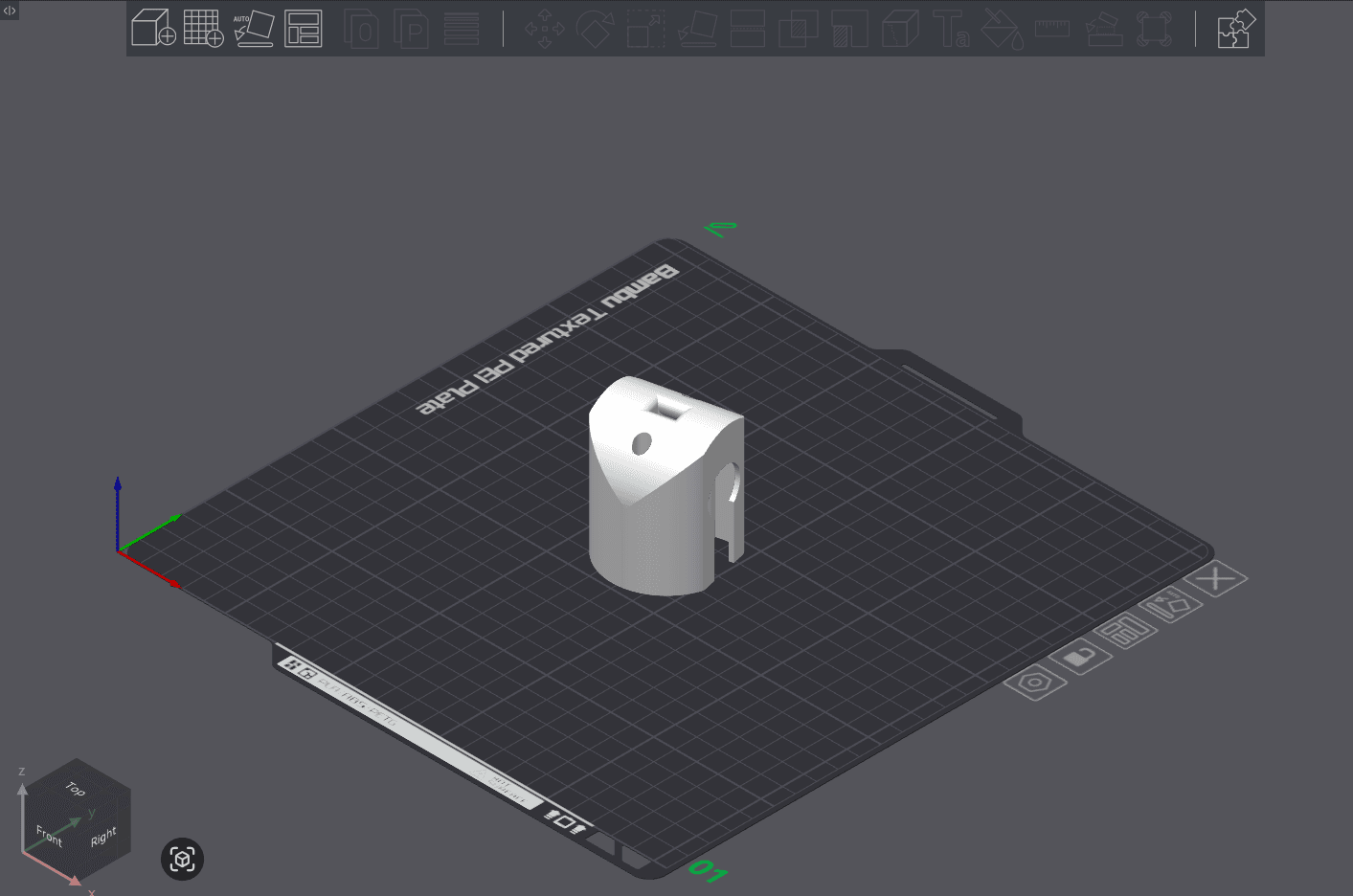

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
5. ElbowJointRight

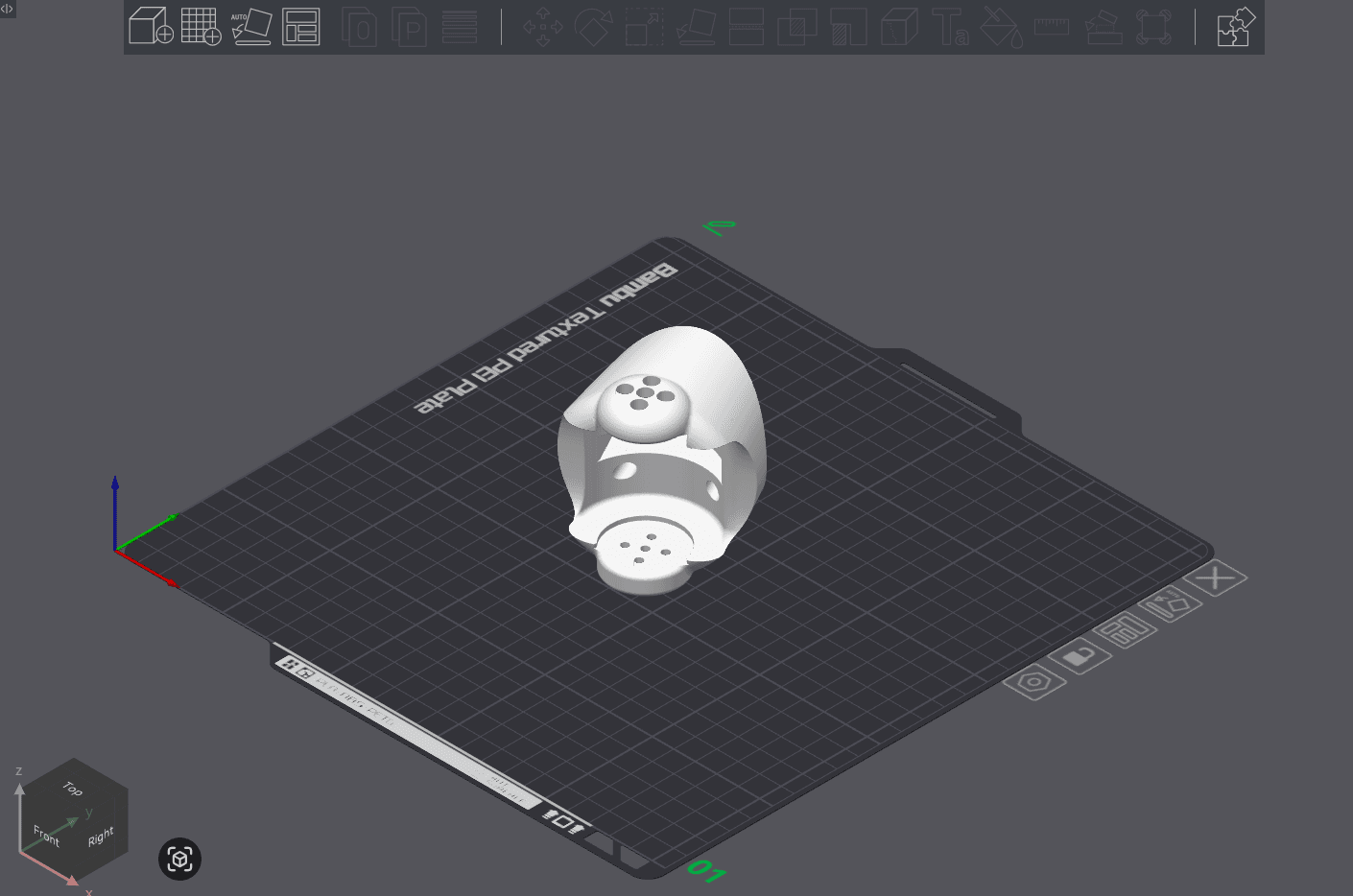

Pre-Sliced View (Raw Model on Build Plate)

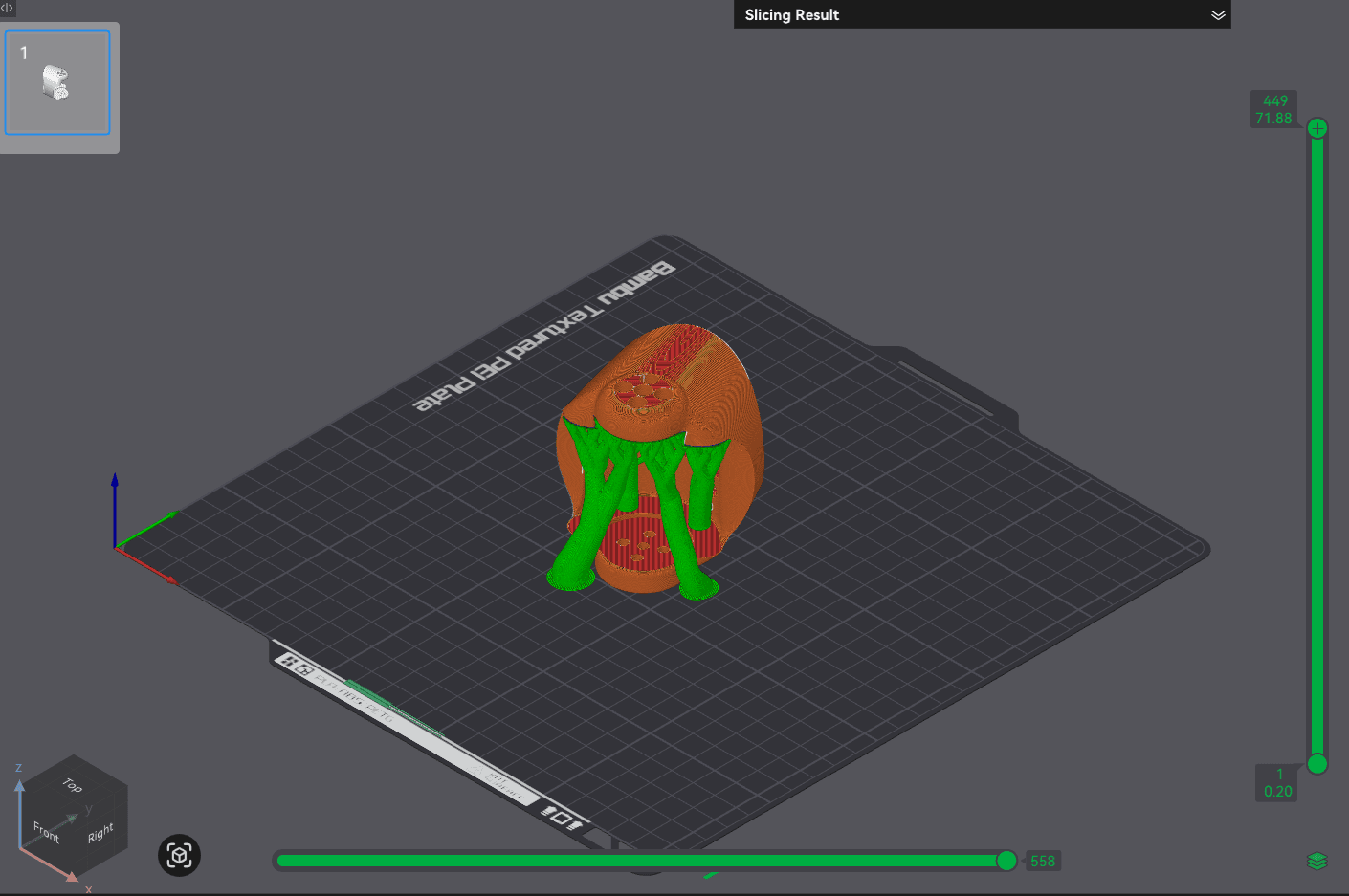

Post-Sliced View (Slicer Preview)
Raft not required.
6. WristJointRight

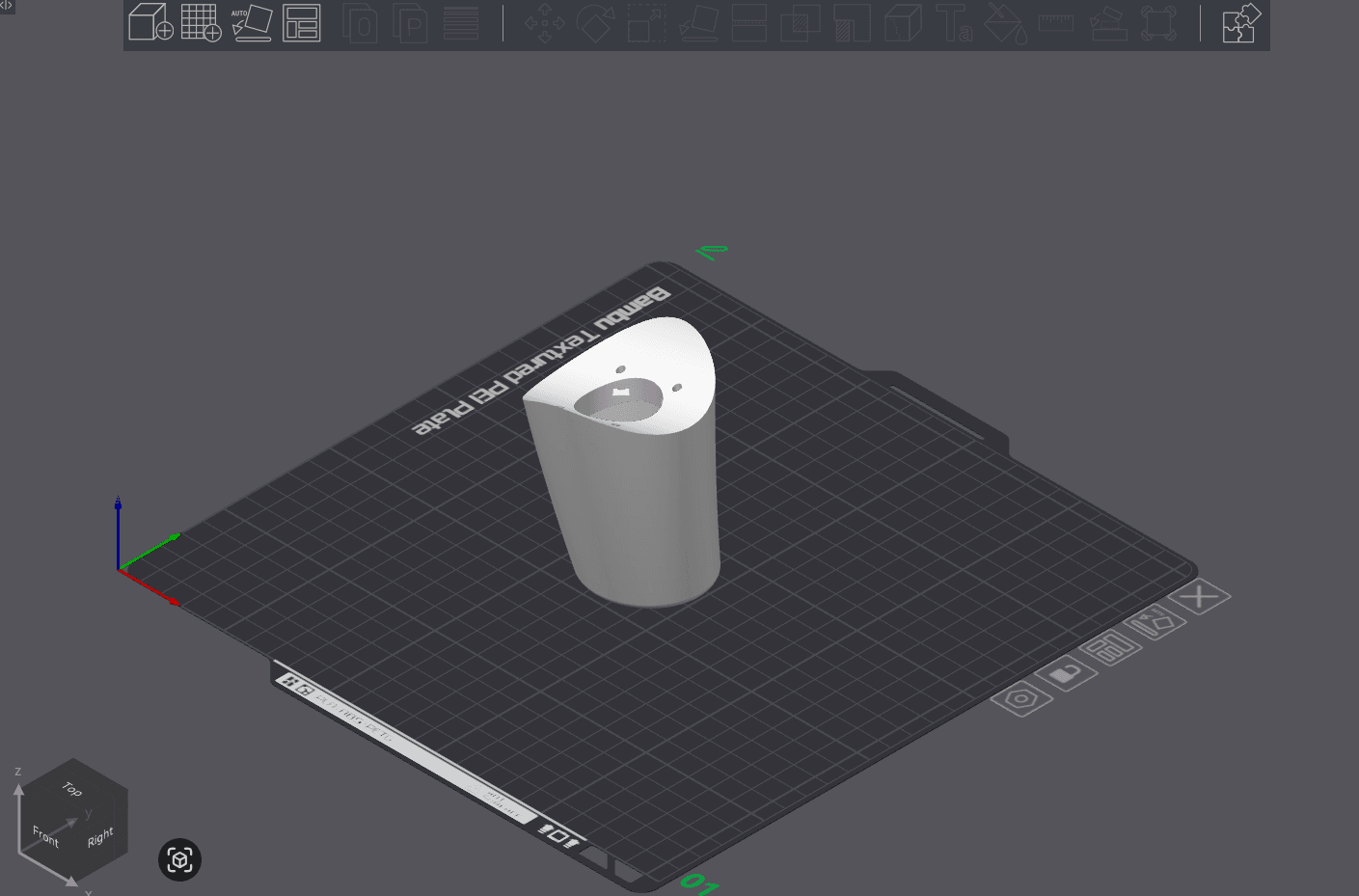

Pre-Sliced View (Raw Model on Build Plate)

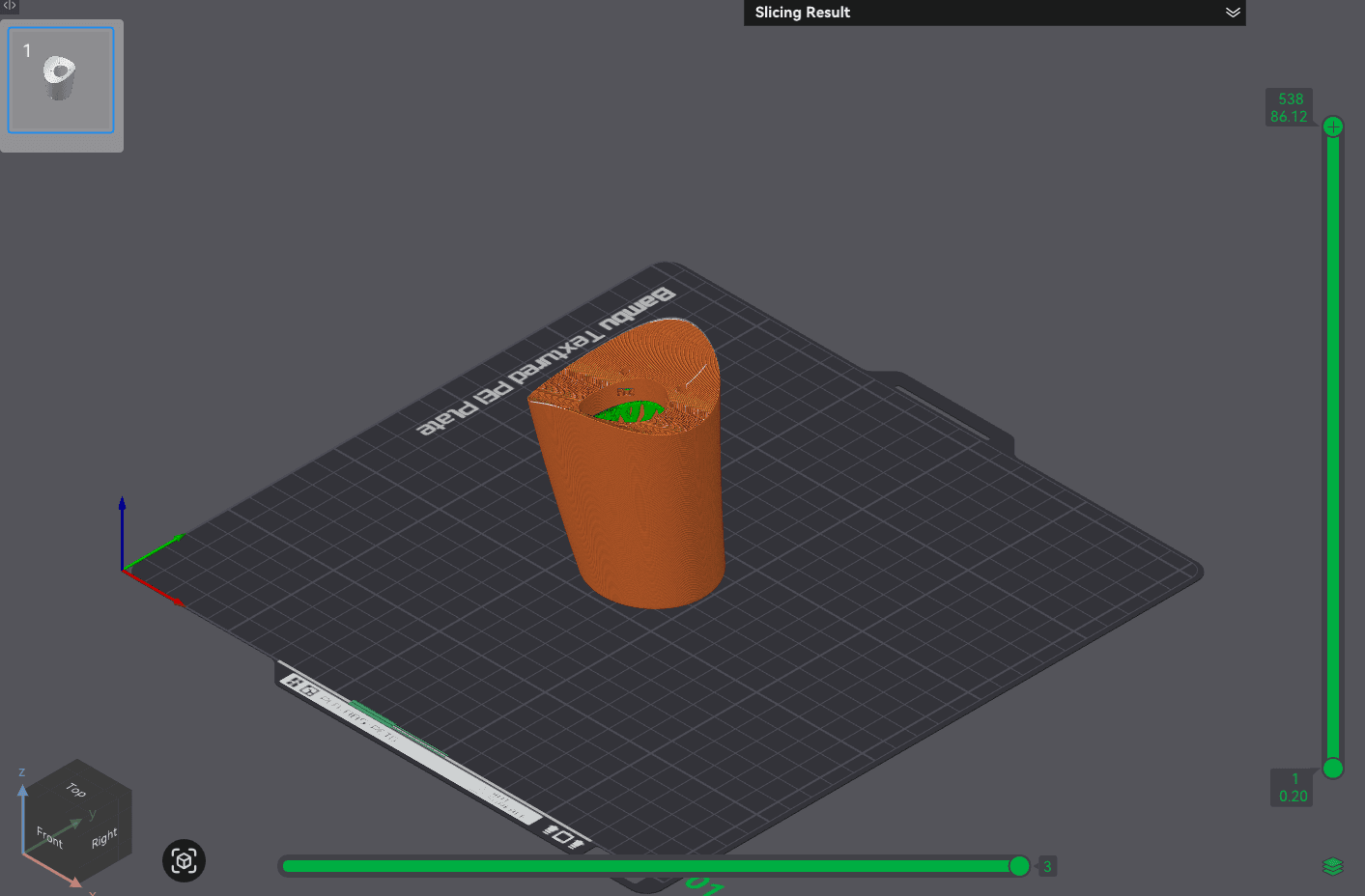

Post-Sliced View (Slicer Preview)
Raft not required.
7. PalmRight

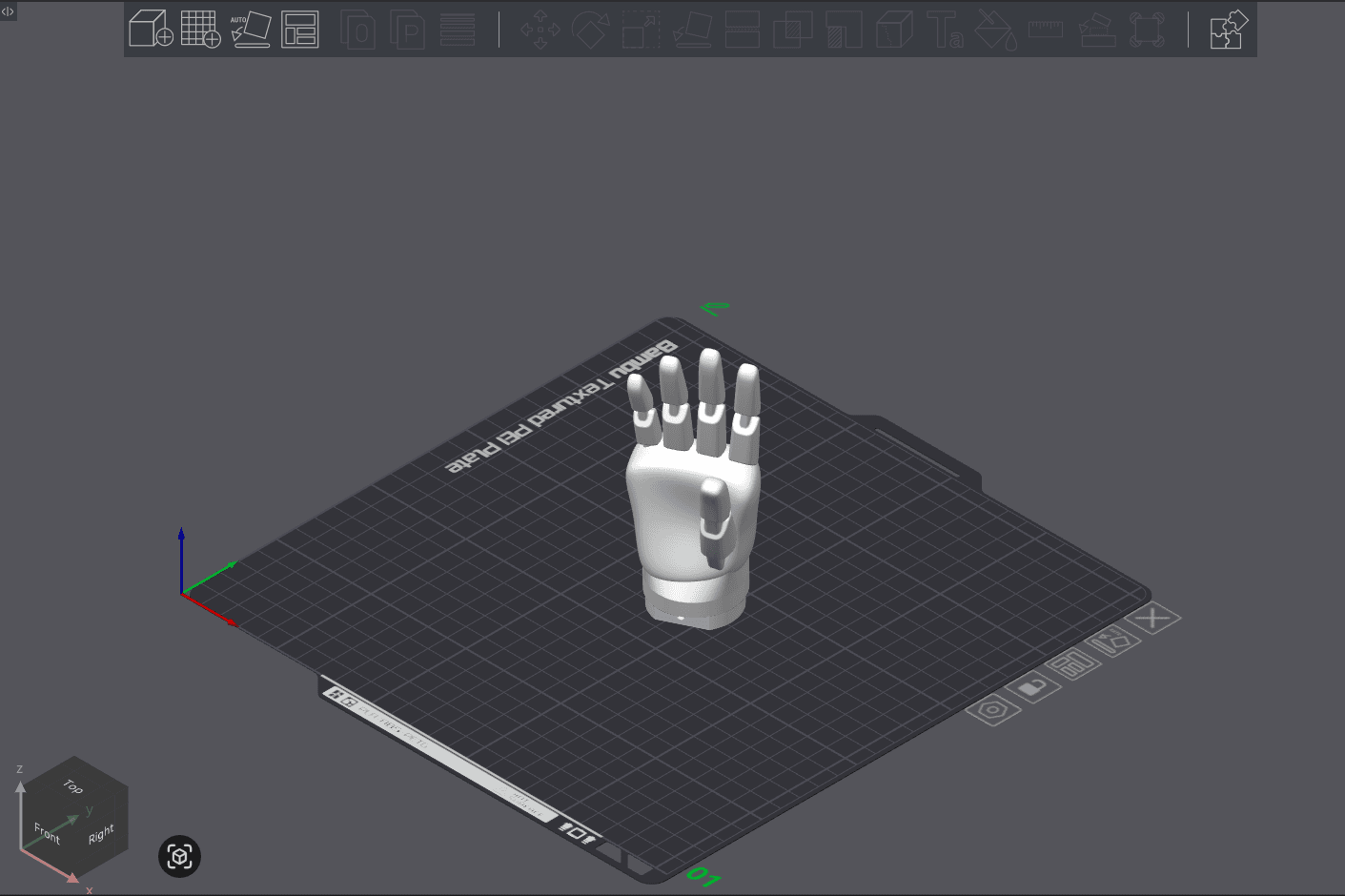

Pre-Sliced View (Raw Model on Build Plate)

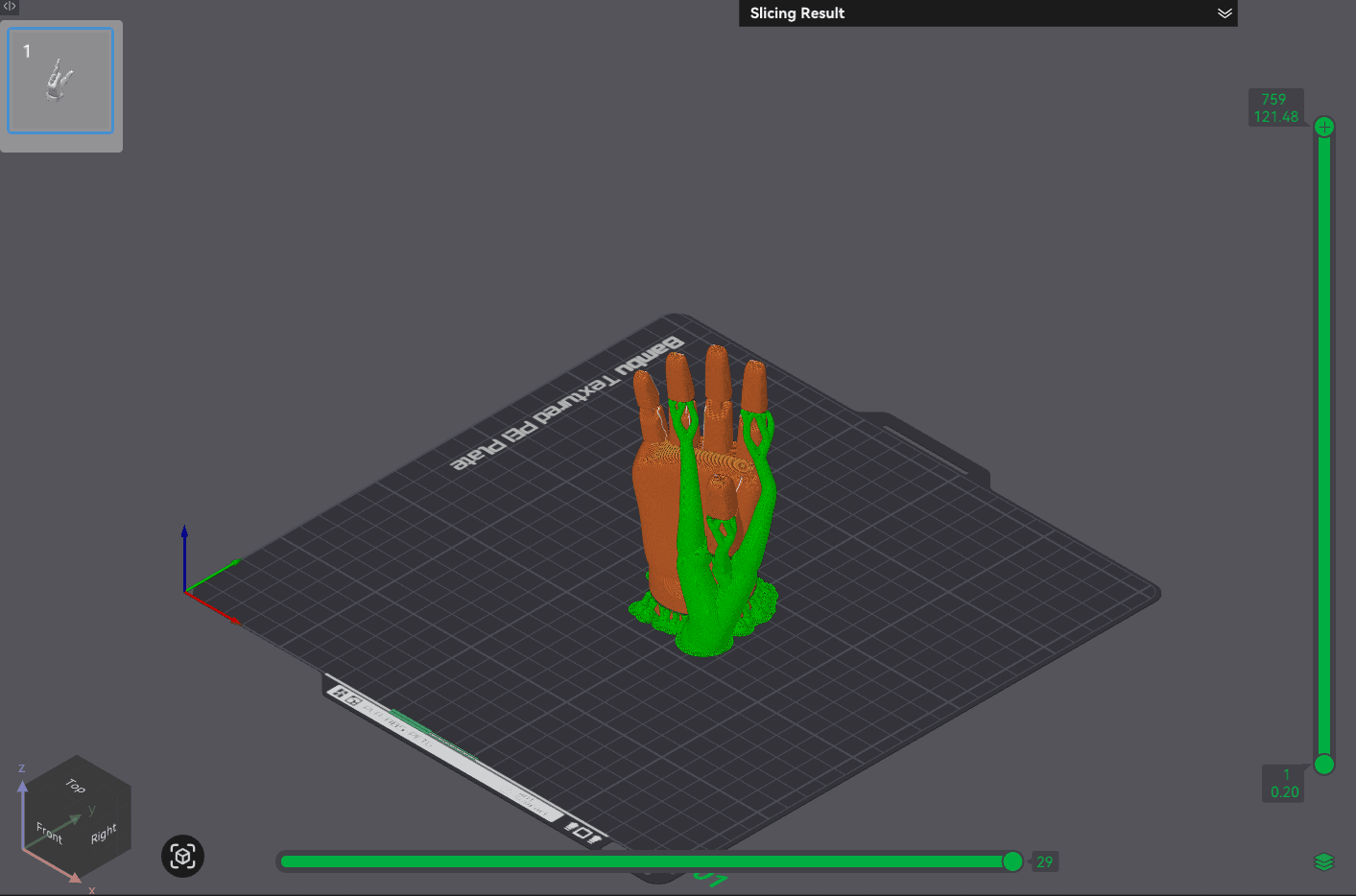

Post-Sliced View (Slicer Preview)
Raft not required.
