Head Parts
This document defines the validated print orientation, slicing view, and raft requirements for all BonicBot A2 head components.
1. Face

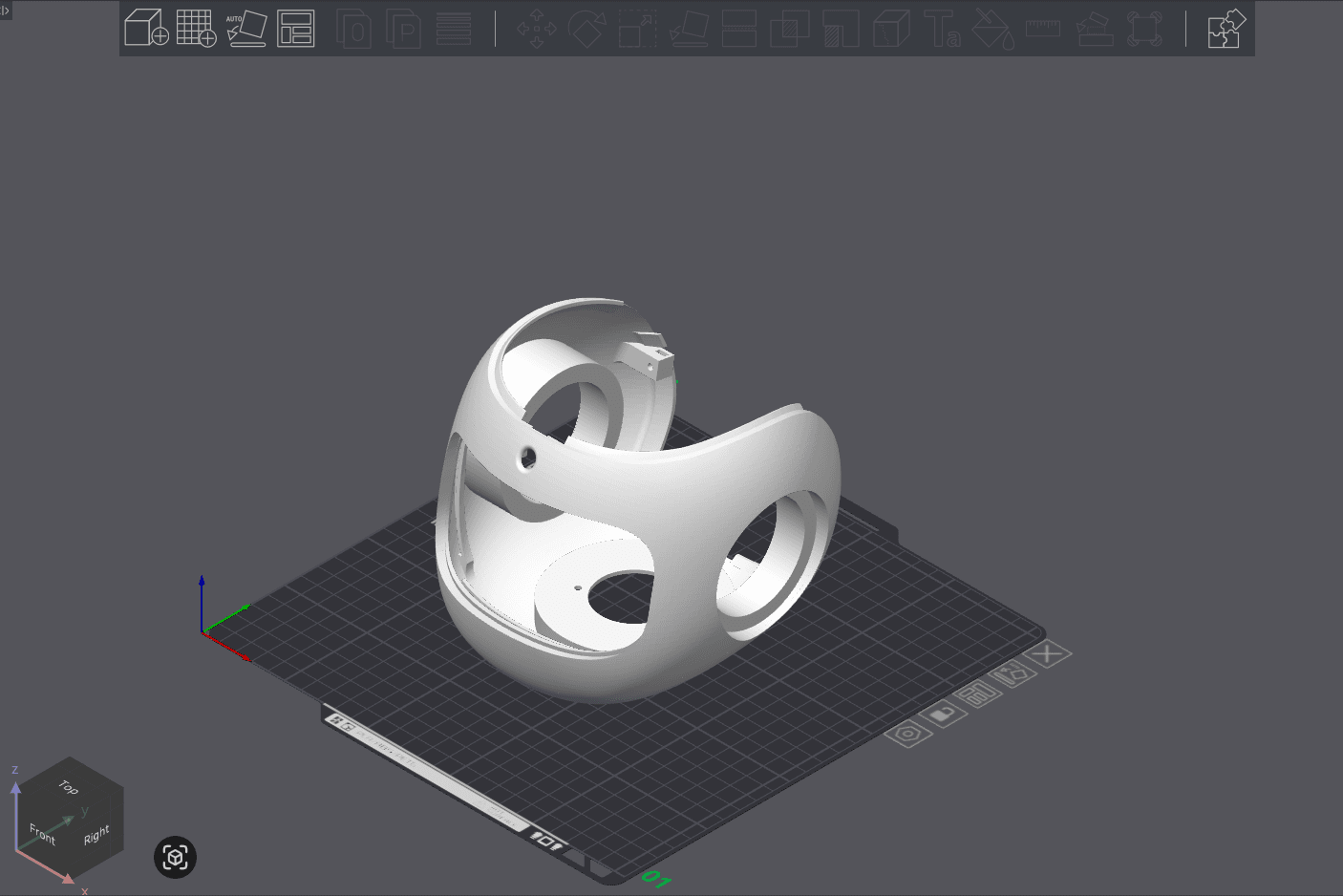

Pre-Sliced View (Raw Model on Build Plate)

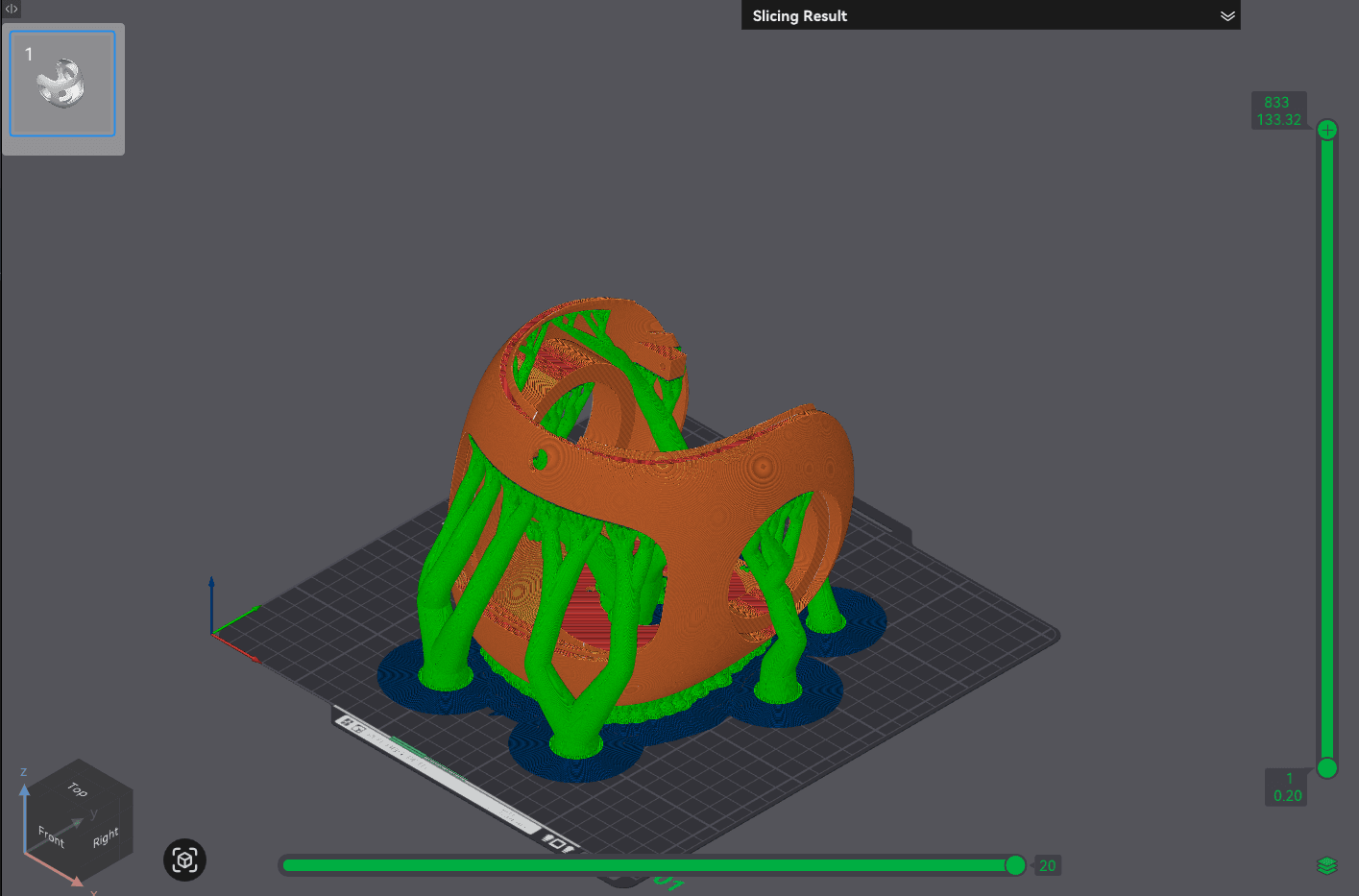

Post-Sliced View (Slicer Preview)
Raft not required.
2. HeadCover

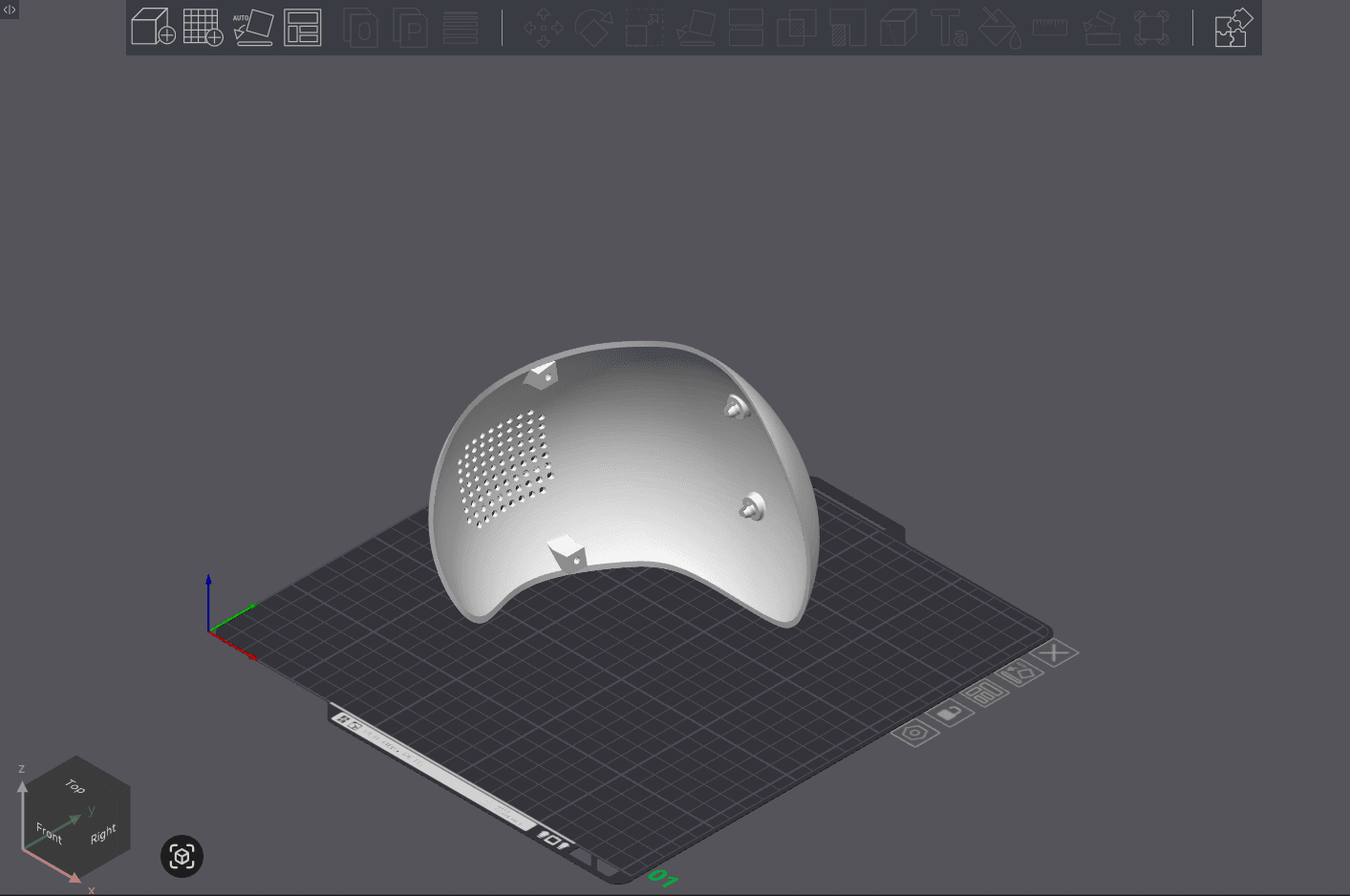

Pre-Sliced View (Raw Model on Build Plate)

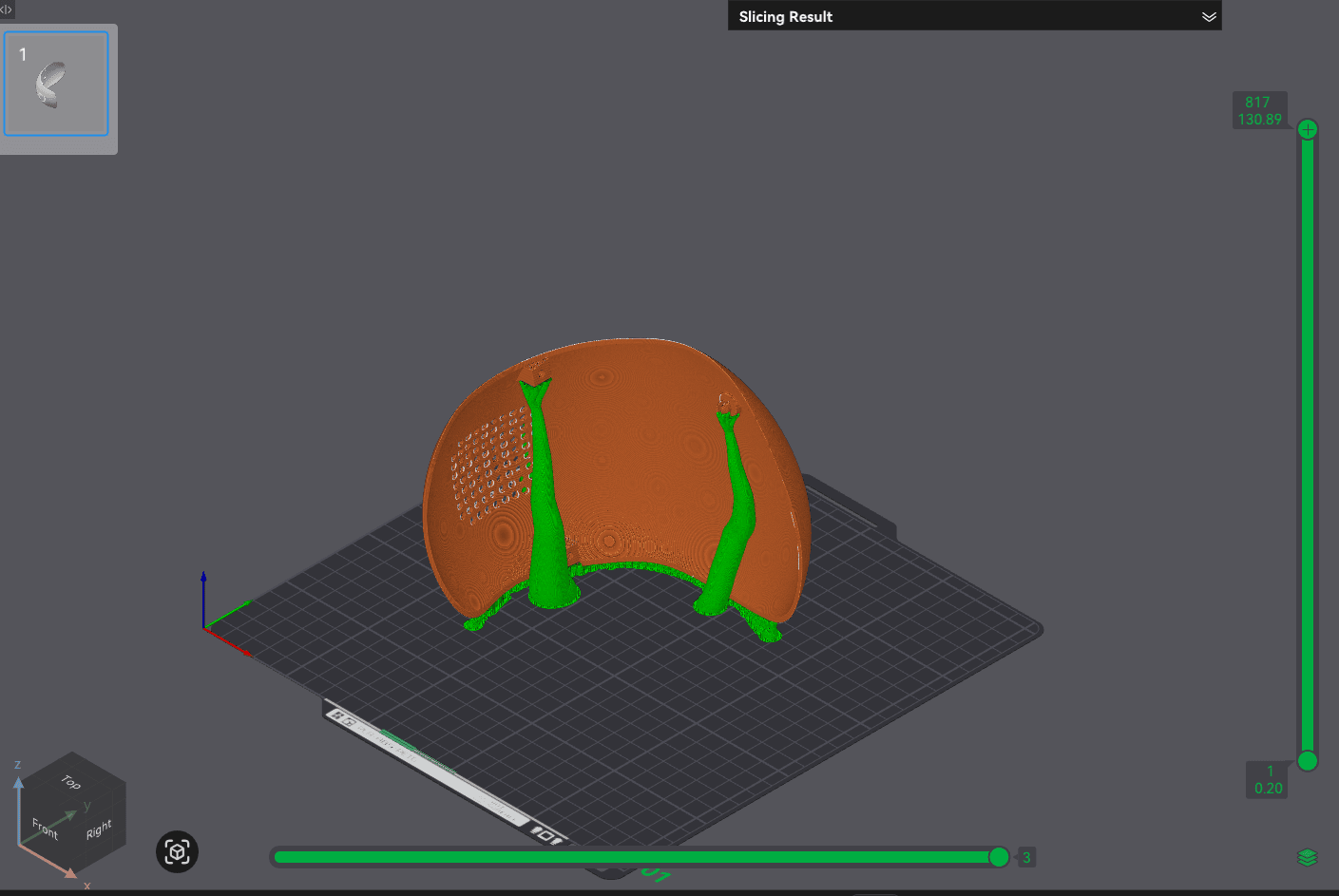

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
3. SpeakerHolderLeft
Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
4. SpeakerHolderRight
Pre-Sliced View (Raw Model on Build Plate)

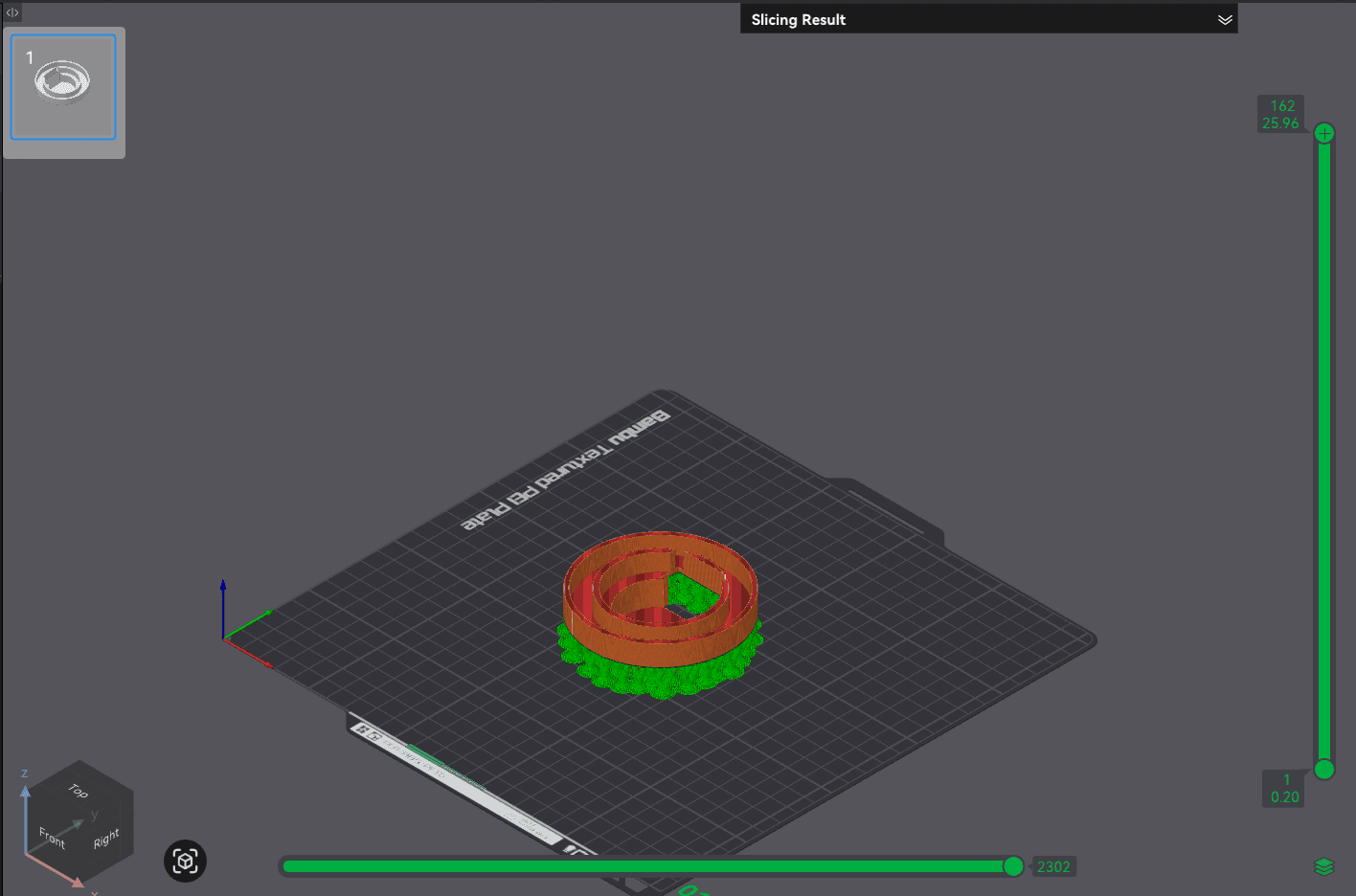

Post-Sliced View (Slicer Preview)
Raft not required.
5. EarLeft
Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
6. EarRight

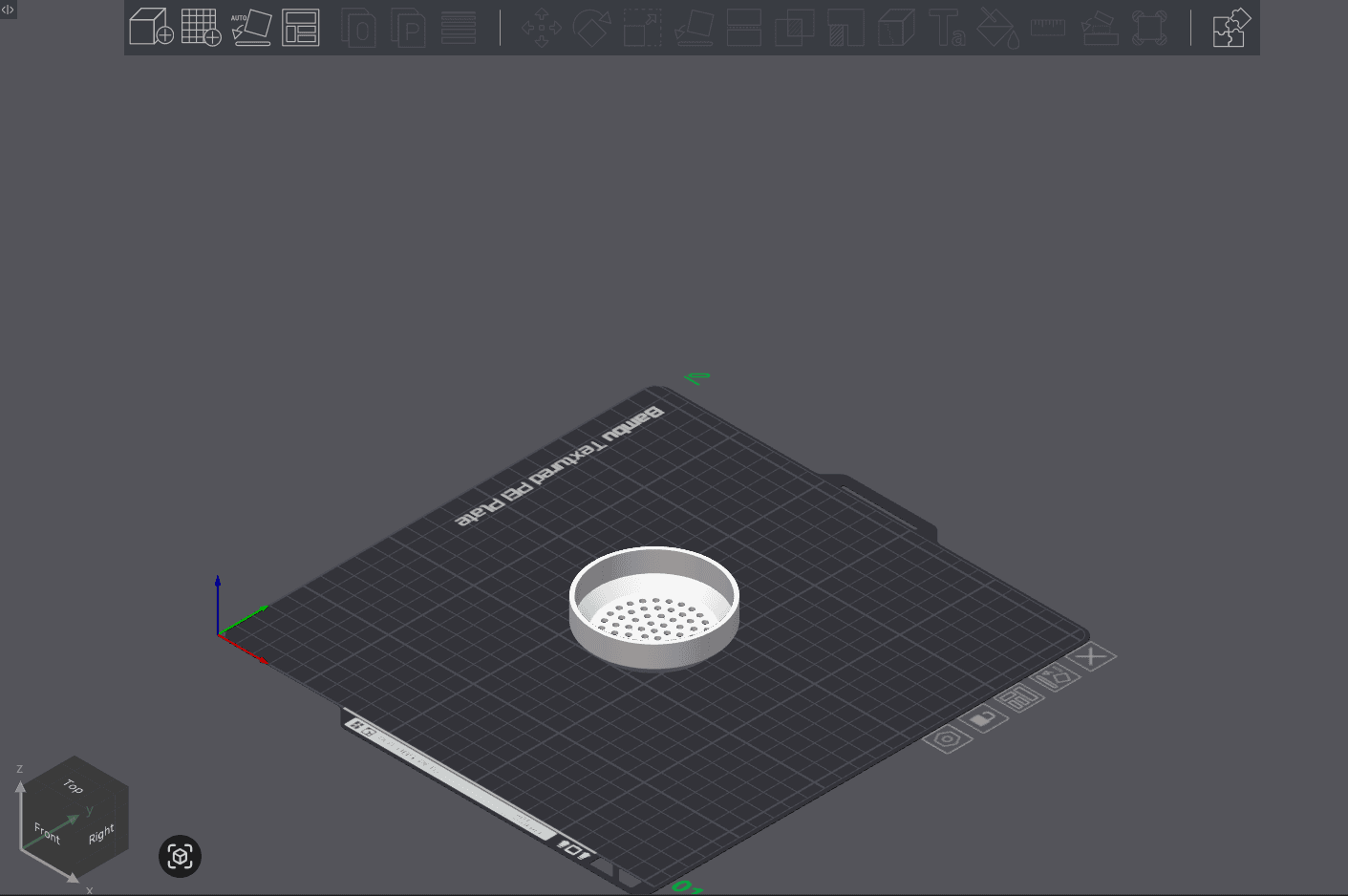

Pre-Sliced View (Raw Model on Build Plate)

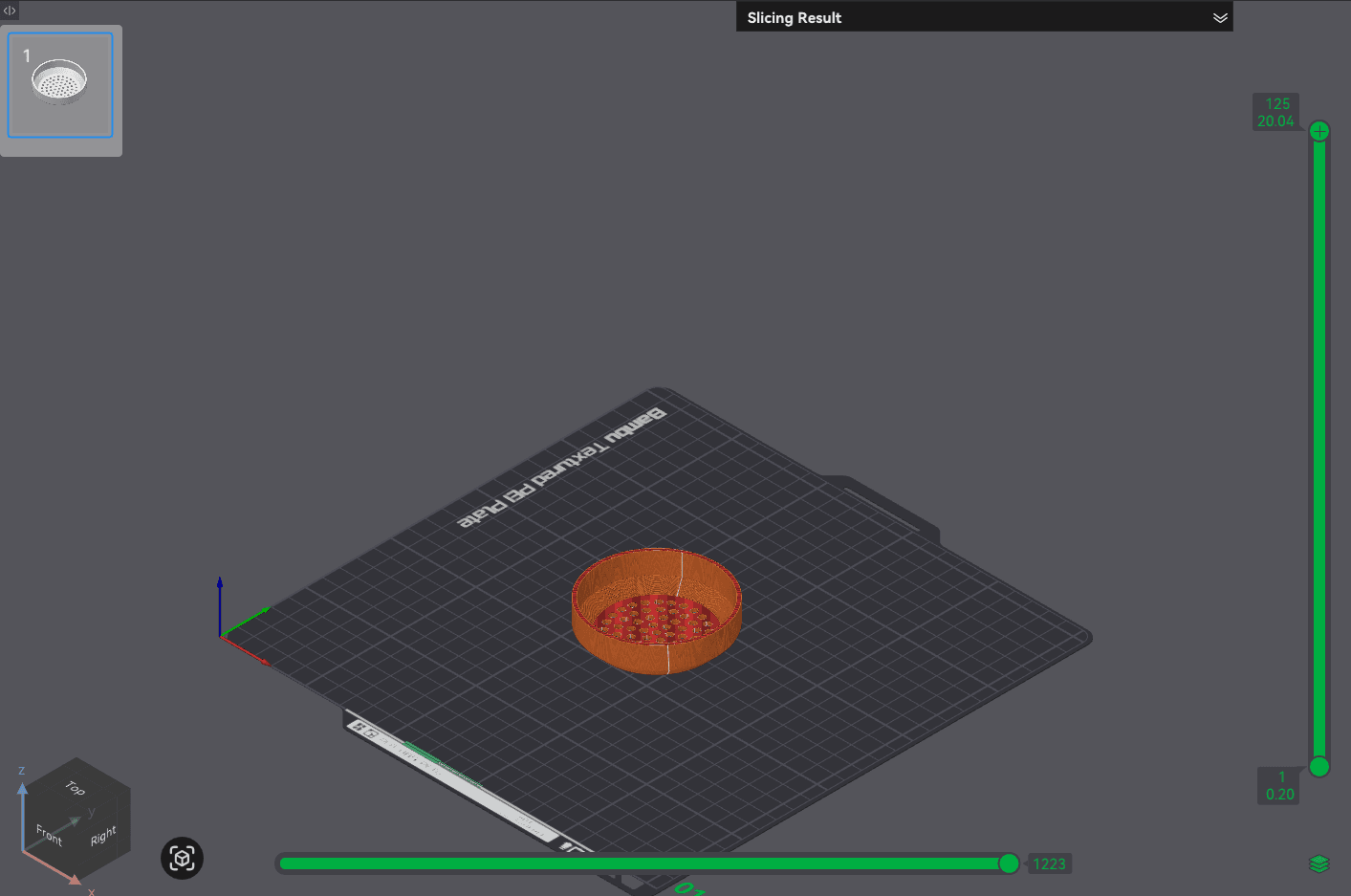

Post-Sliced View (Slicer Preview)
Raft not required.
7. RPiHolder

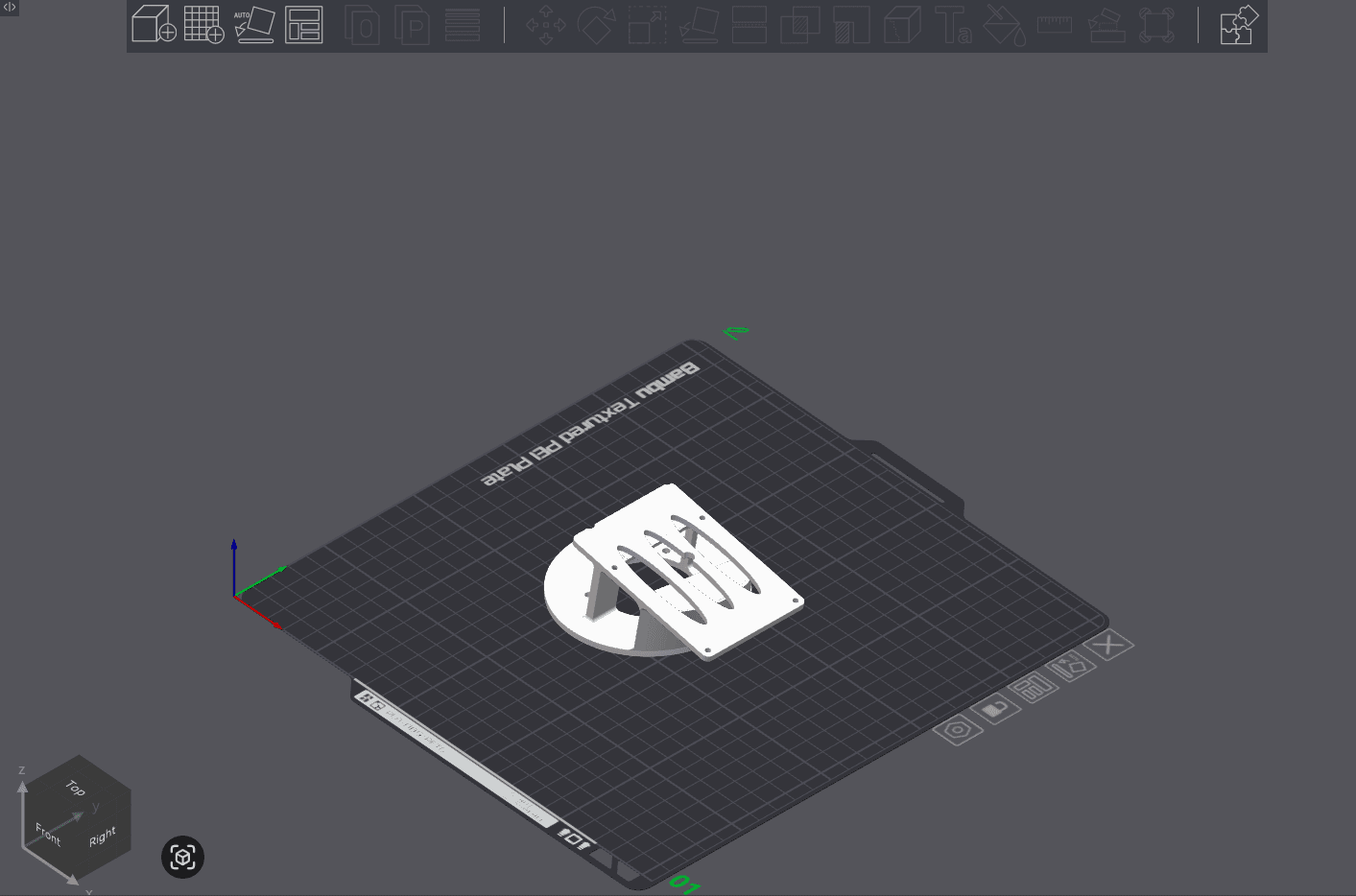

Pre-Sliced View (Raw Model on Build Plate)

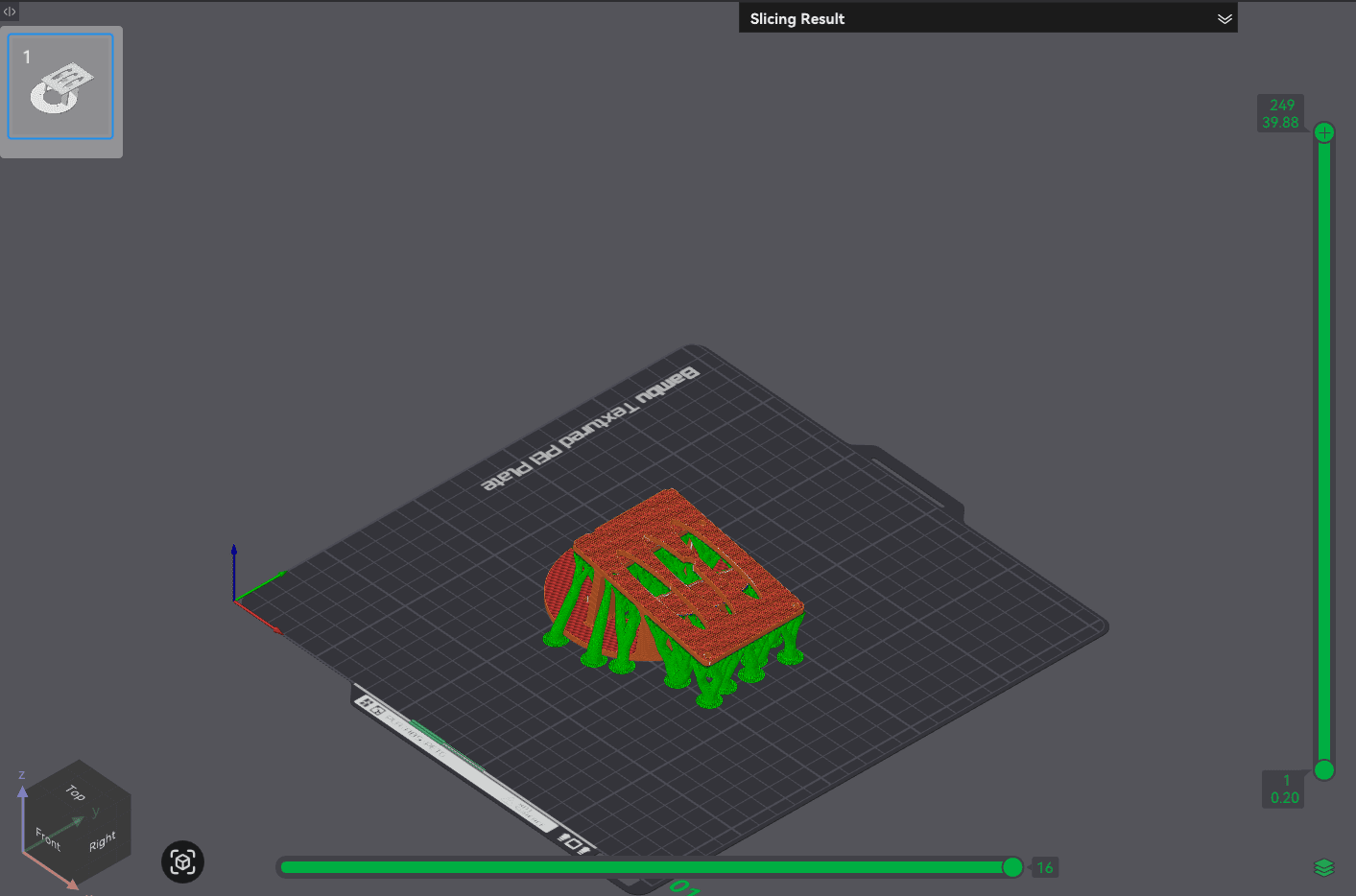

Post-Sliced View (Slicer Preview)
Raft not required.
