Right Gripper

This document defines the validated print orientation, slicing view, and raft requirements for all BonicBot A2 right gripper add-on components.

1. GripperRight

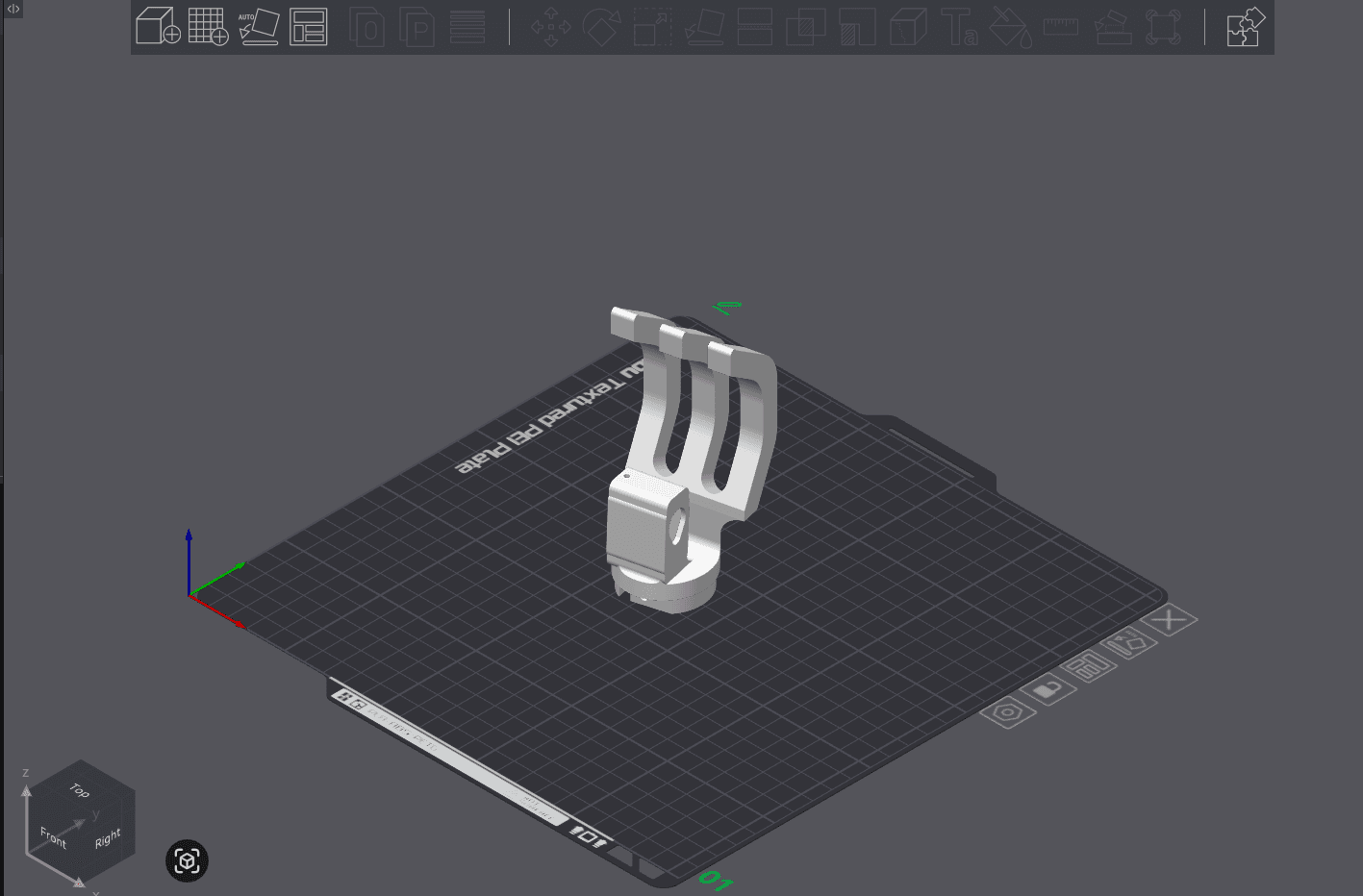

Pre-Sliced View (Raw Model on Build Plate)

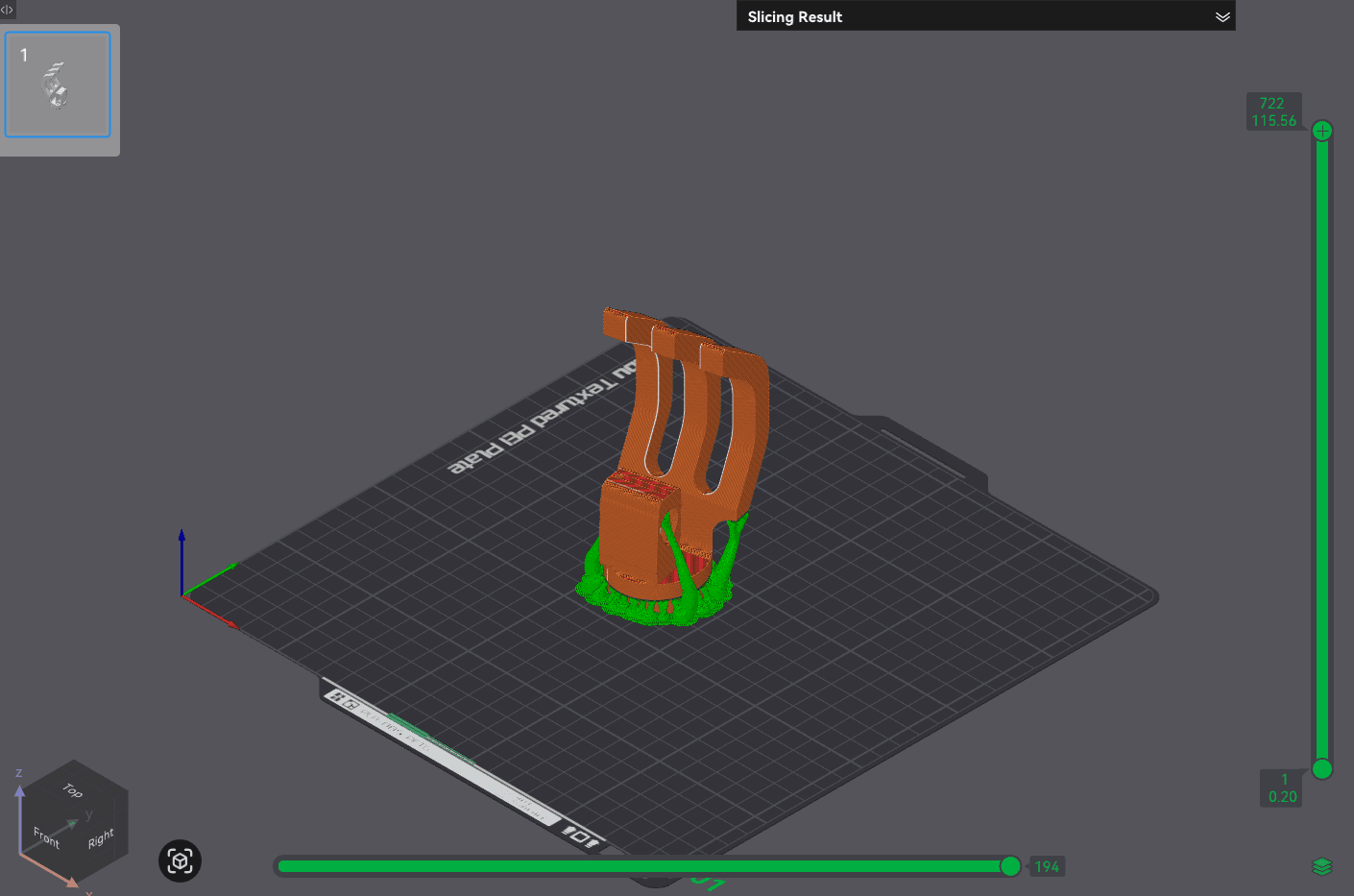

Post-Sliced View (Slicer Preview)

Raft not required.

2. GripperFingerTopRight

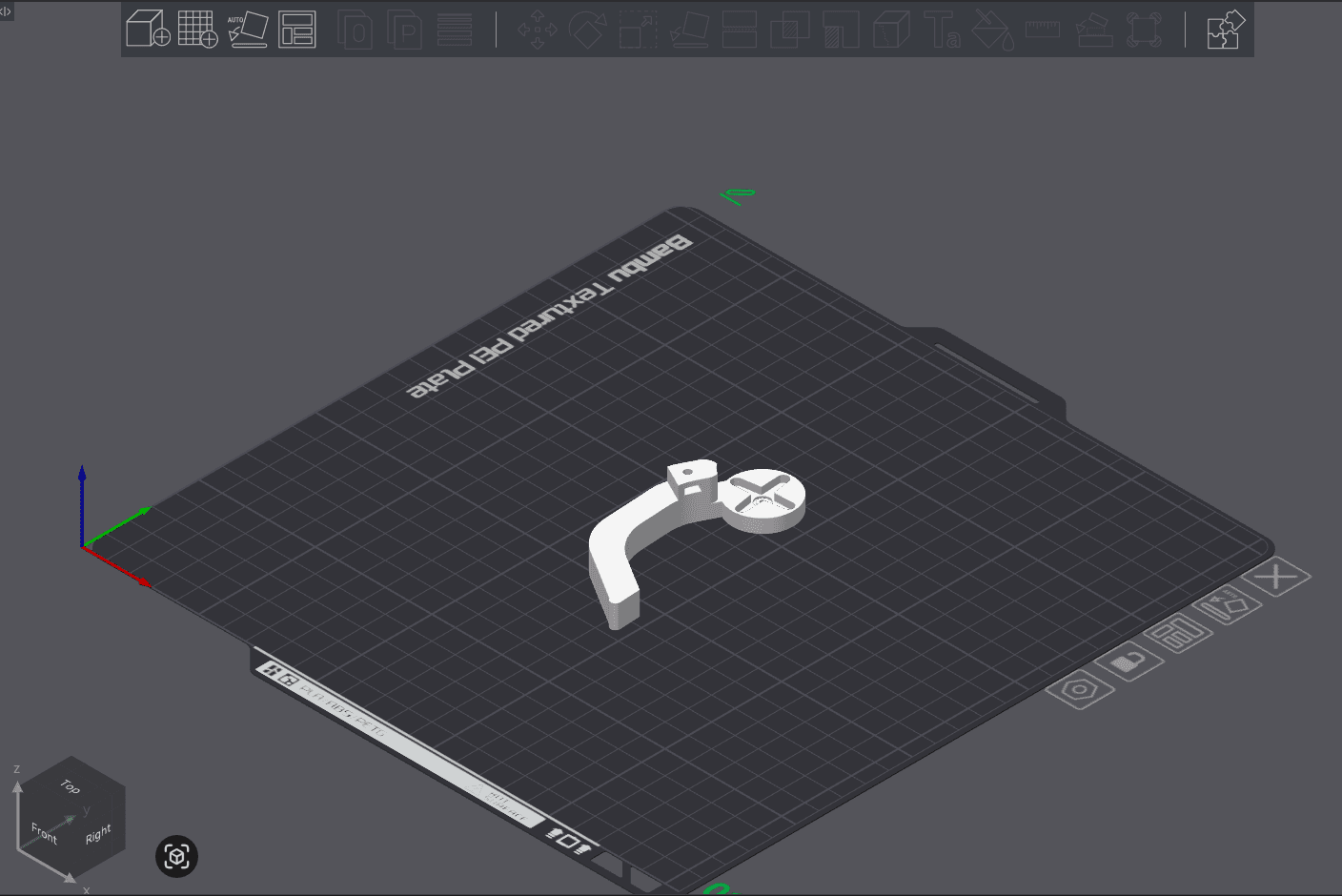

Pre-Sliced View (Raw Model on Build Plate)

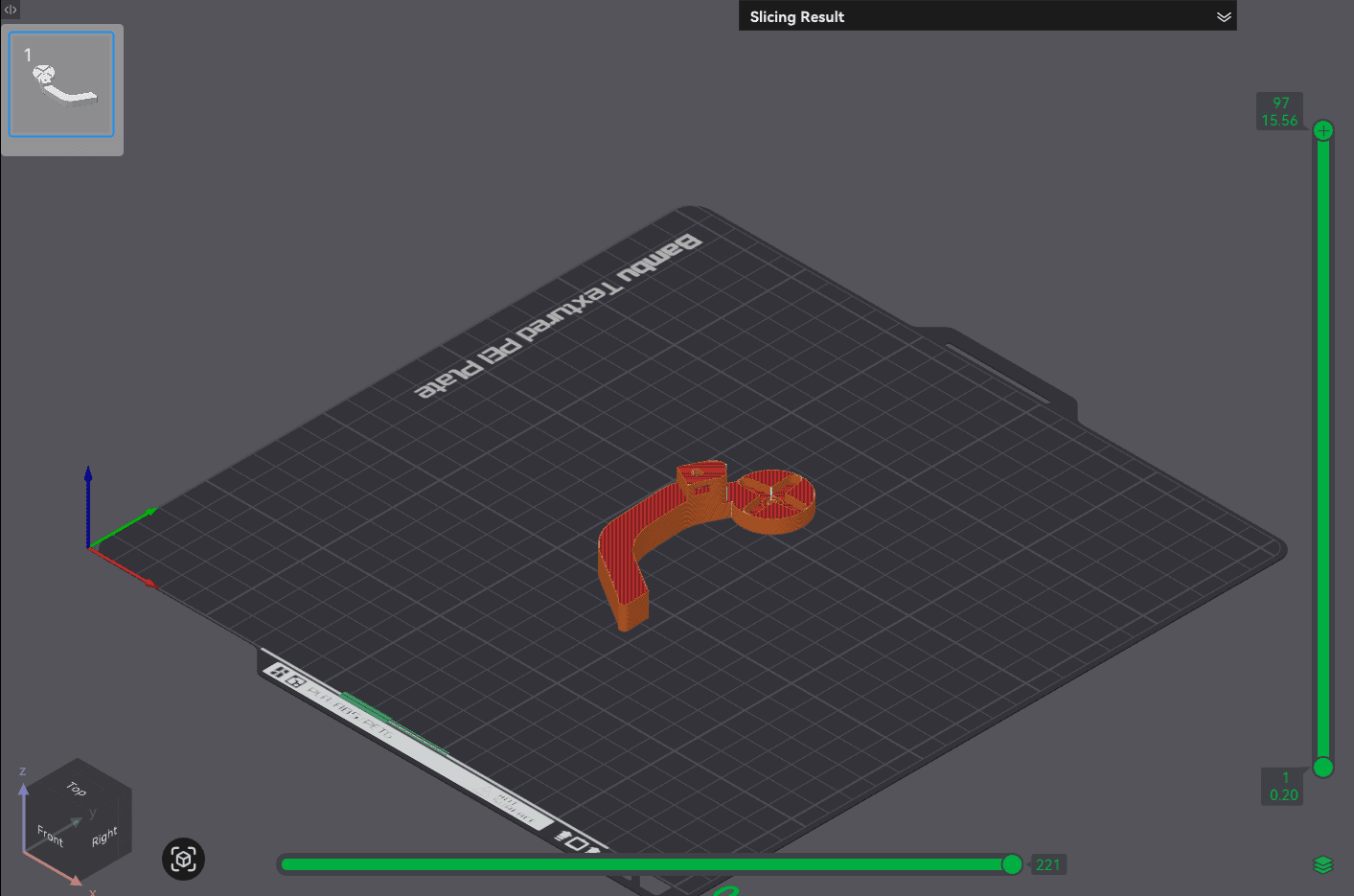

Post-Sliced View (Slicer Preview)

Raft not required.

3. GripperFingerBottomRight

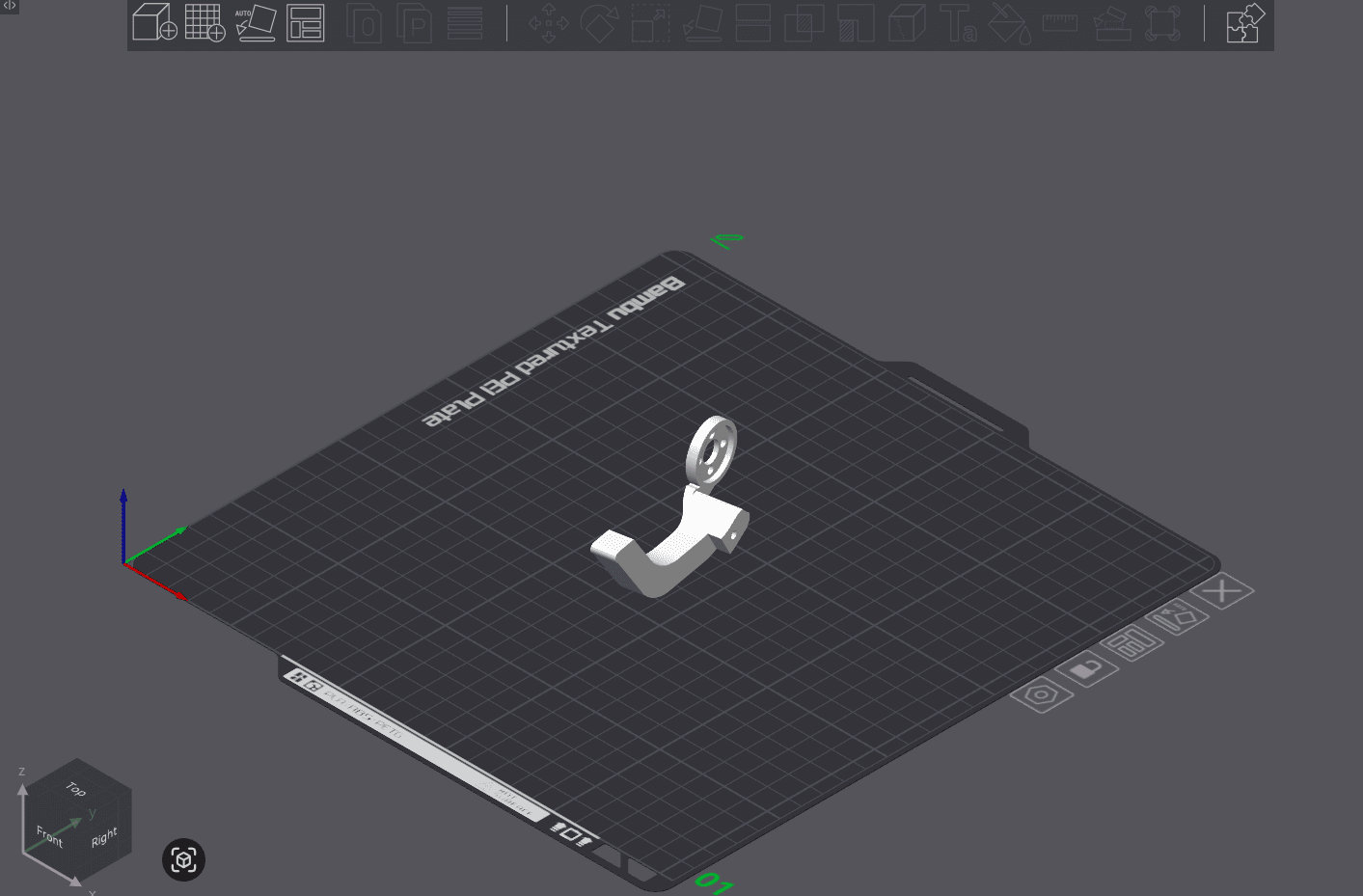

Pre-Sliced View (Raw Model on Build Plate)

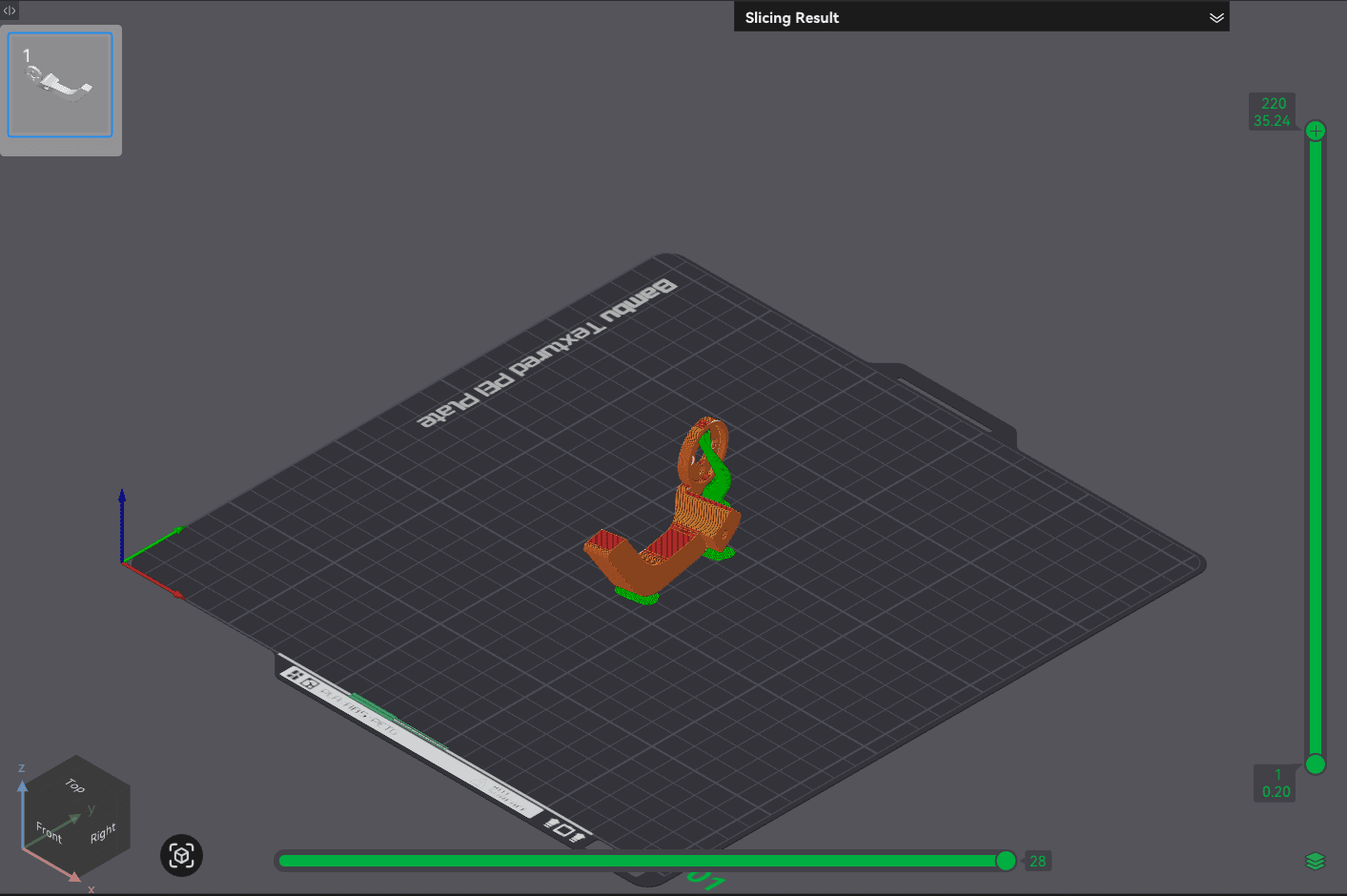

Post-Sliced View (Slicer Preview)

Raft not required.

4. GripperServoCoverRight

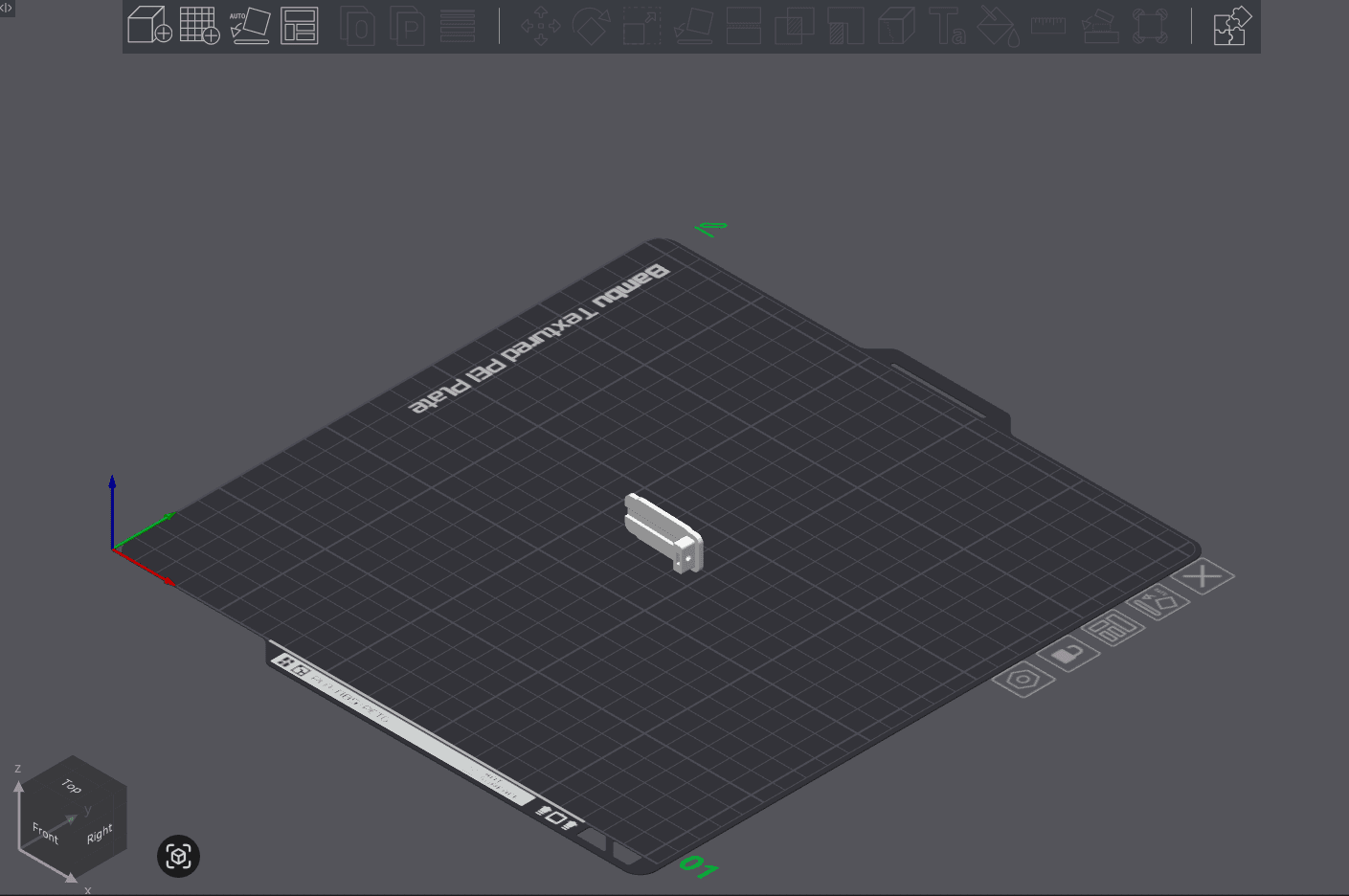

Pre-Sliced View (Raw Model on Build Plate)

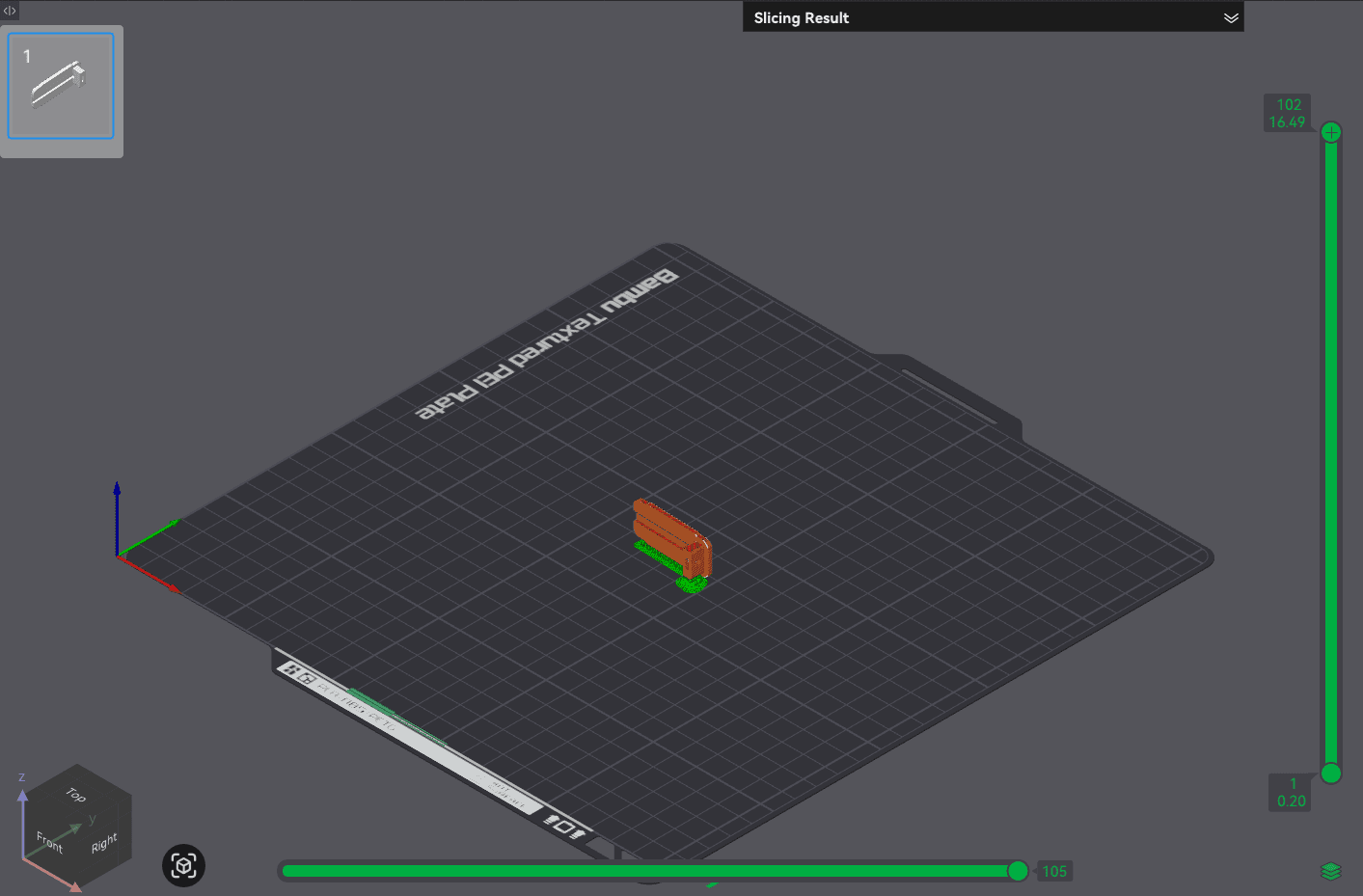

Post-Sliced View (Slicer Preview)

Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
