Left Gripper
This document defines the validated print orientation, slicing view, and raft requirements for all BonicBot A2 left gripper add-on components.
1. GripperLeft

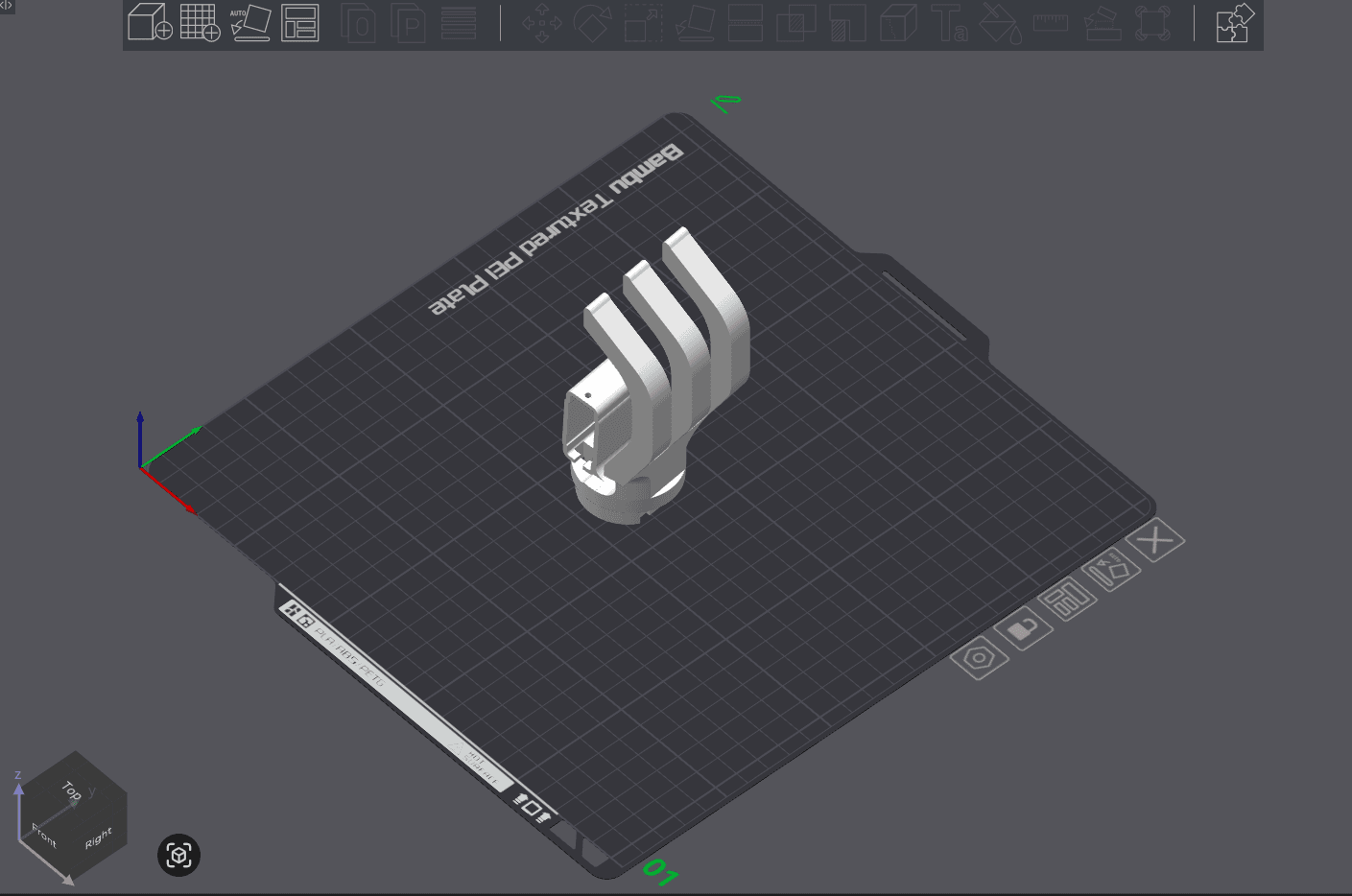

Pre-Sliced View (Raw Model on Build Plate)

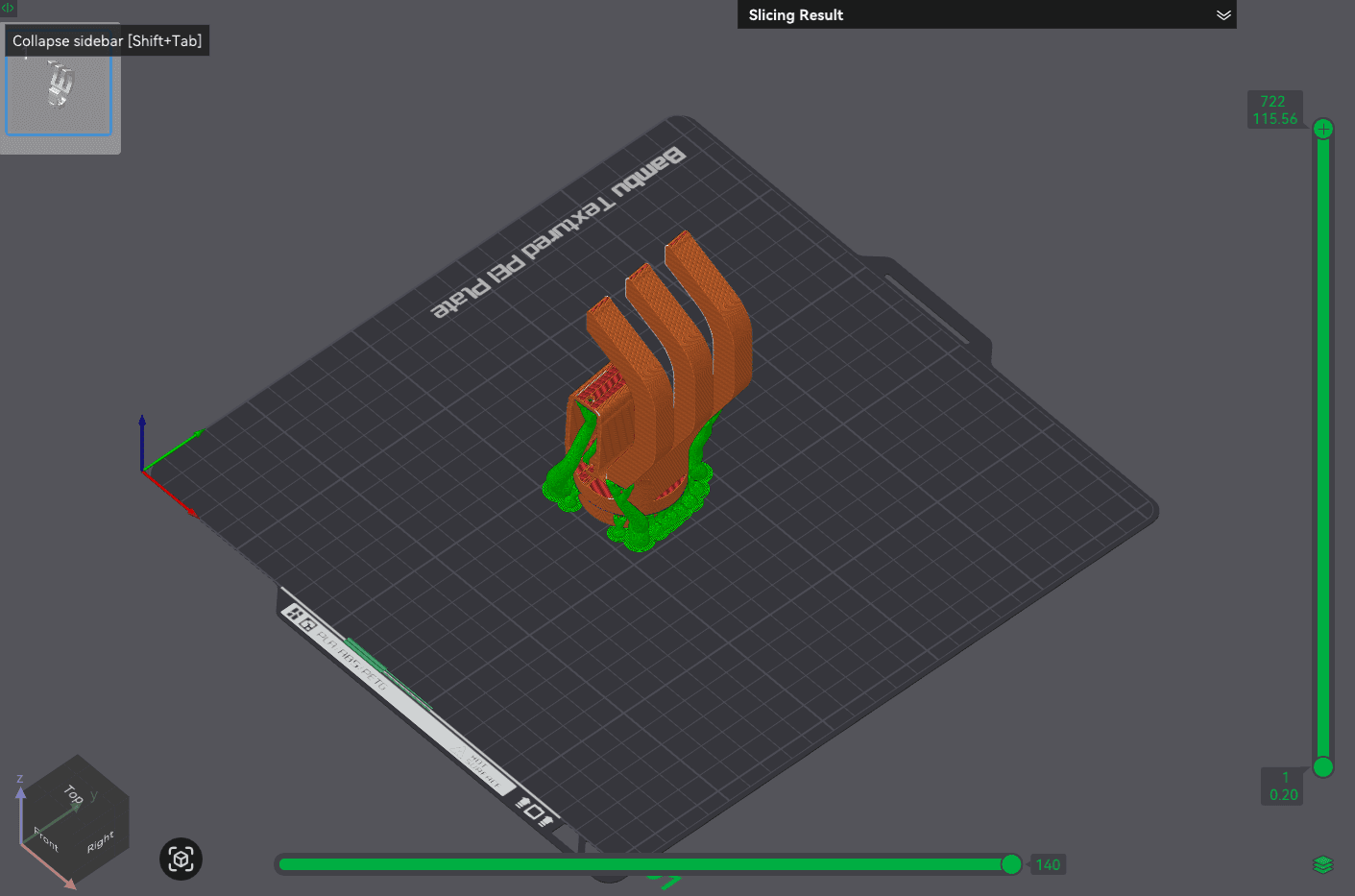

Post-Sliced View (Slicer Preview)
Raft not required.
2. GripperFingerTopLeft

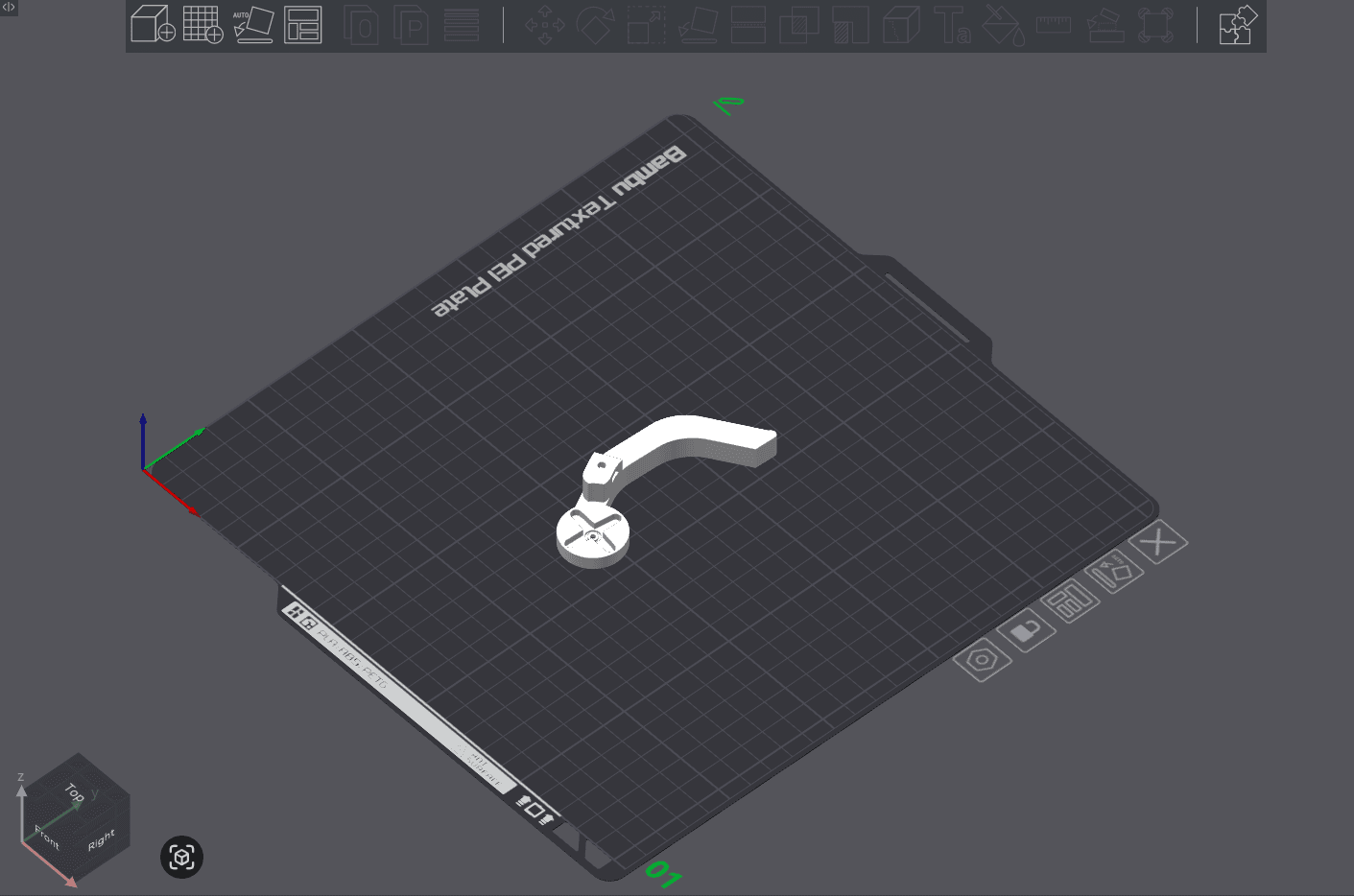

Pre-Sliced View (Raw Model on Build Plate)

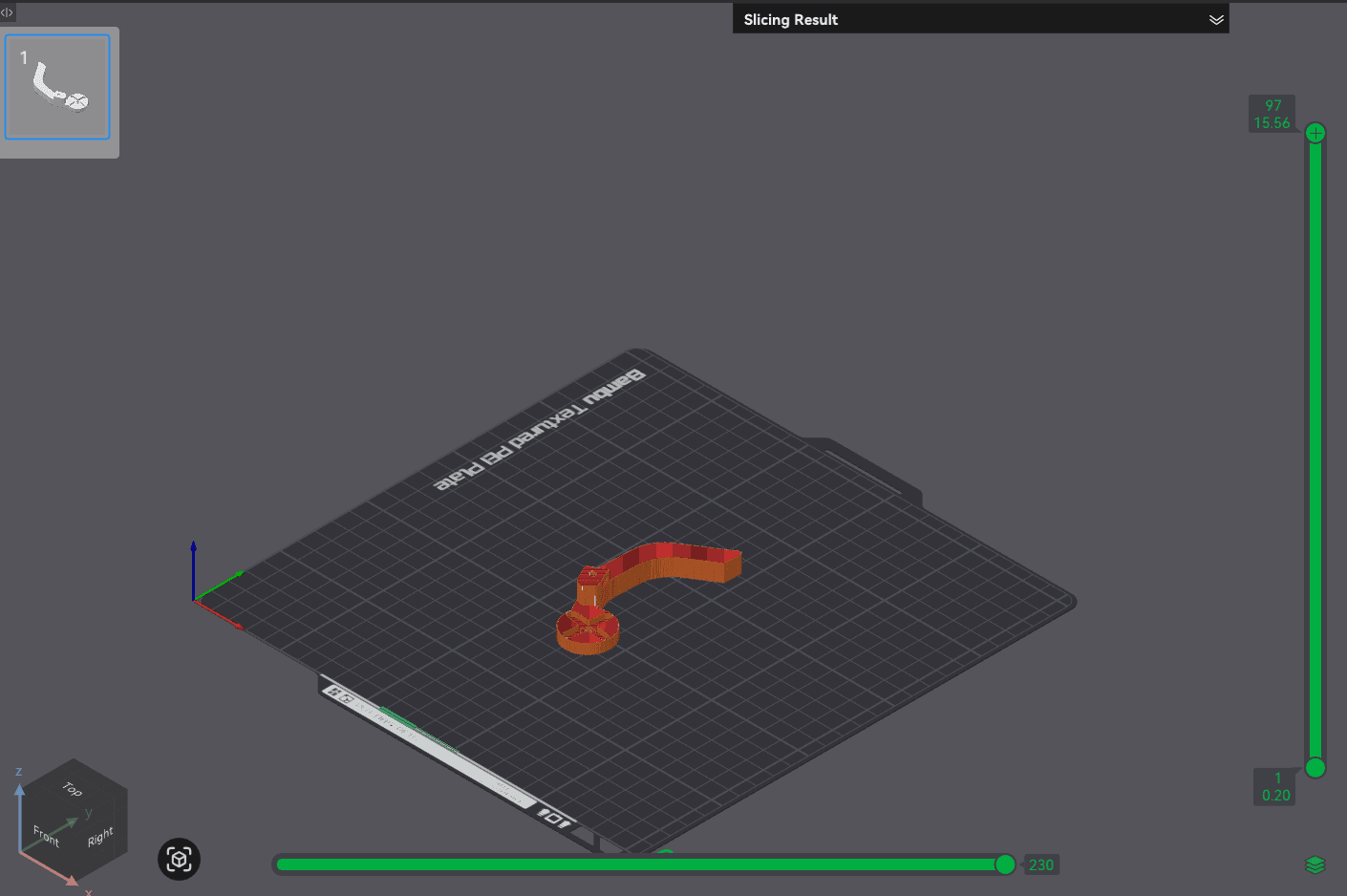

Post-Sliced View (Slicer Preview)
Raft not required.
3. GripperFingerBottomLeft

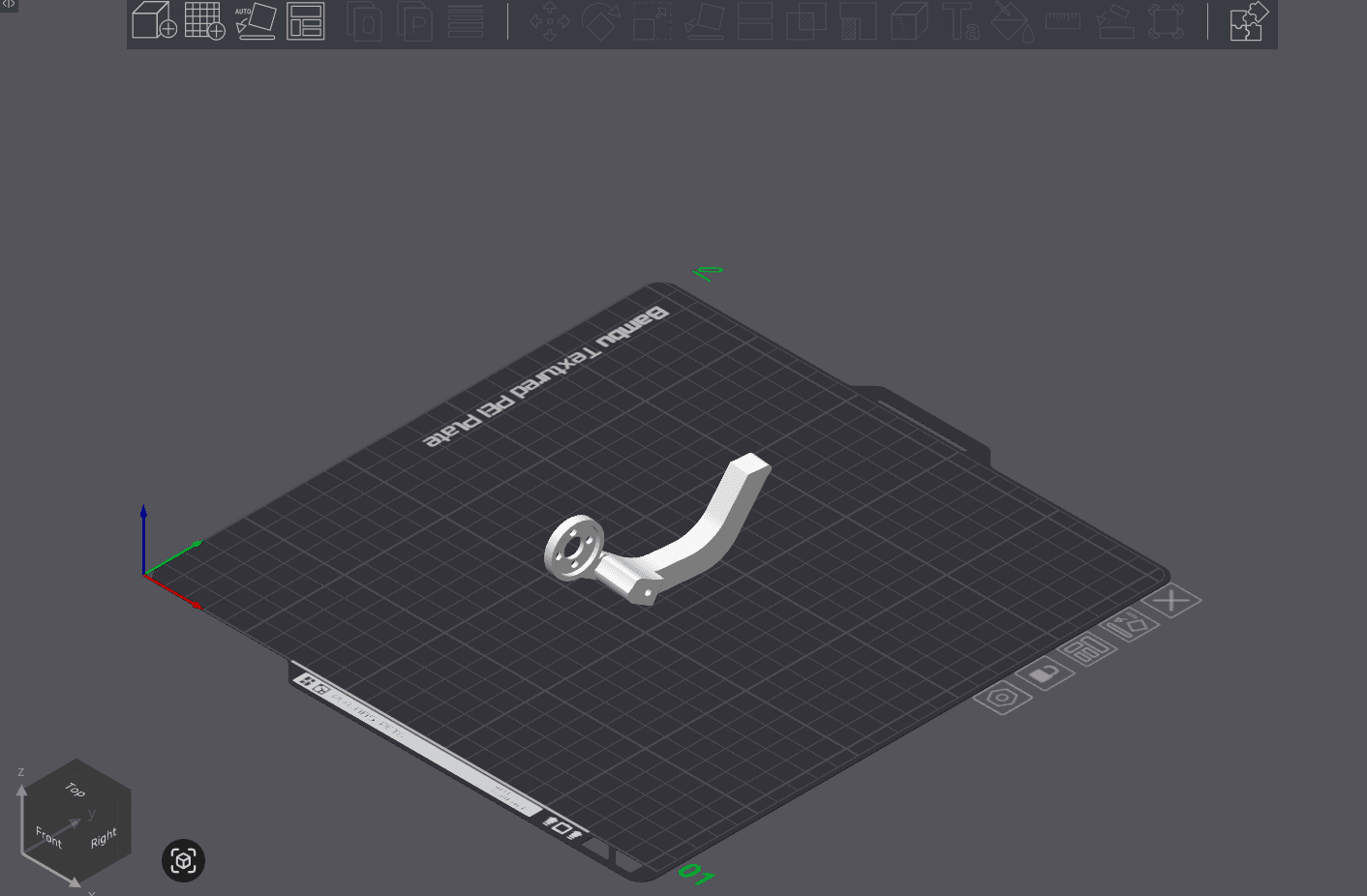

Pre-Sliced View (Raw Model on Build Plate)

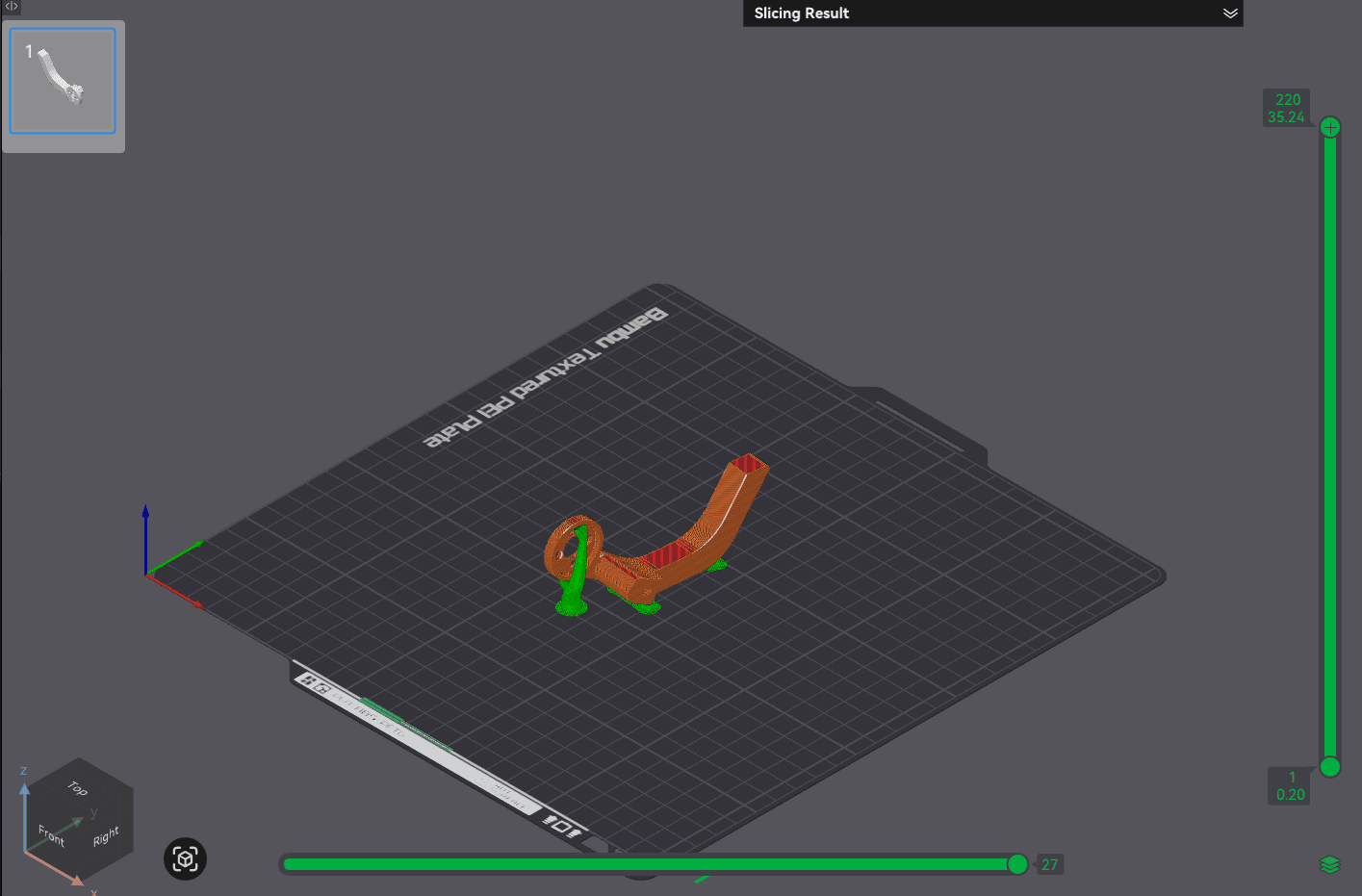

Post-Sliced View (Slicer Preview)
Raft not required.
4. GripperServoCoverLeft

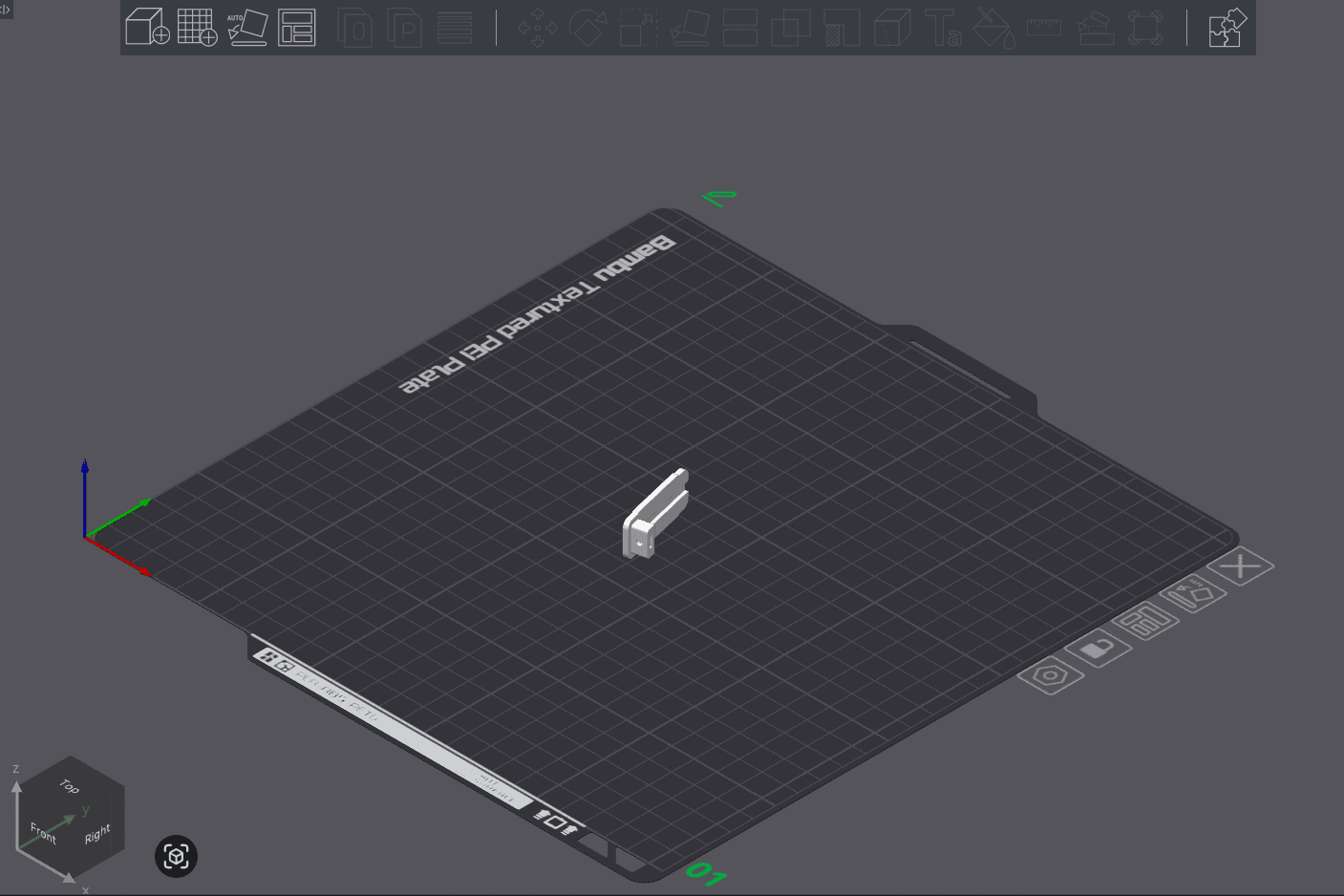

Pre-Sliced View (Raw Model on Build Plate)

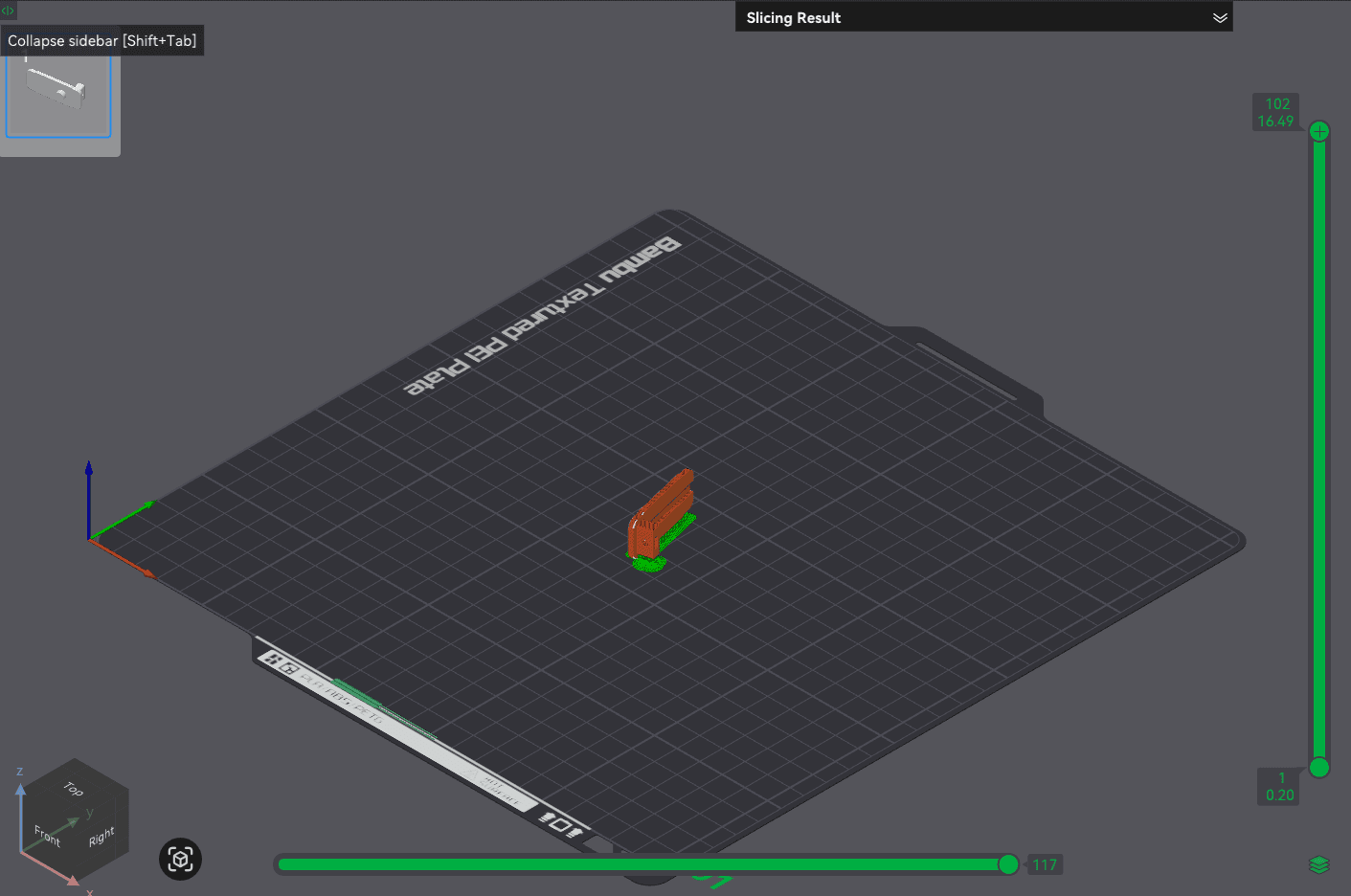

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
