Base Parts
This document is a dedicated reference for all BonicBot A2 base components. It defines the validated print orientation, slicing view, and raft requirements for each base part.
1. BaseFrontLeft

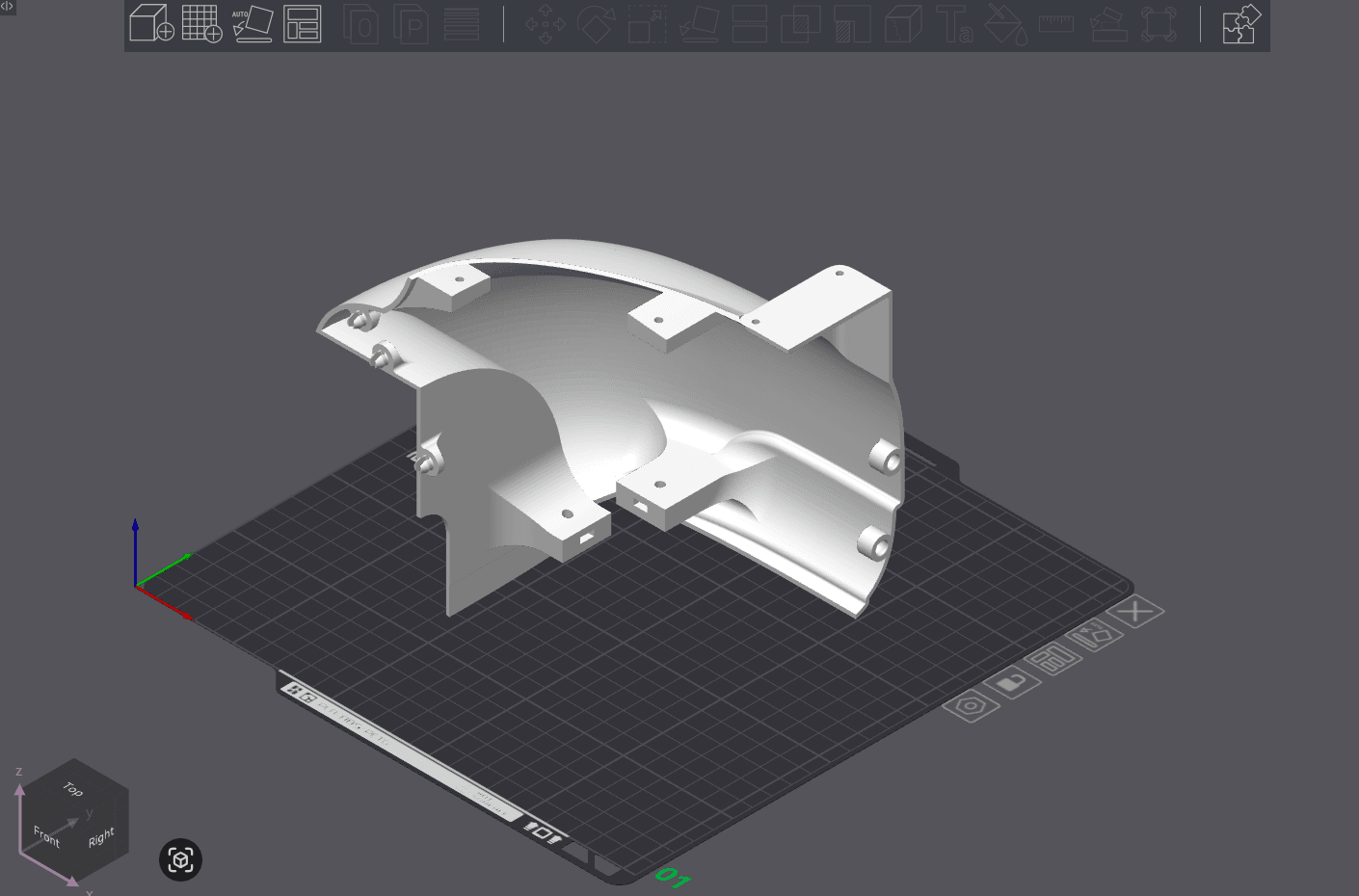

Pre-Sliced View (Raw Model on Build Plate)

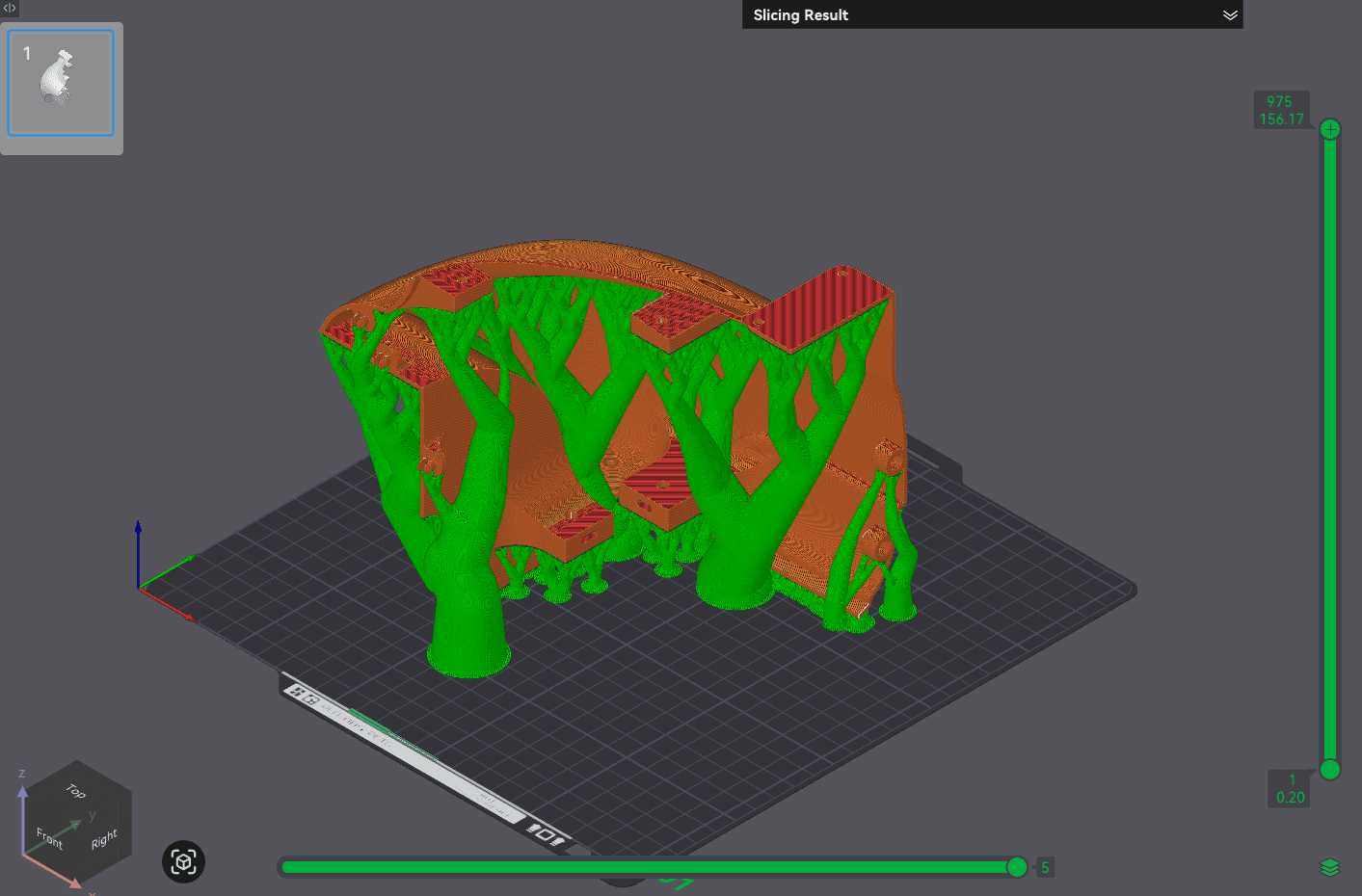

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
2. BaseFrontRight

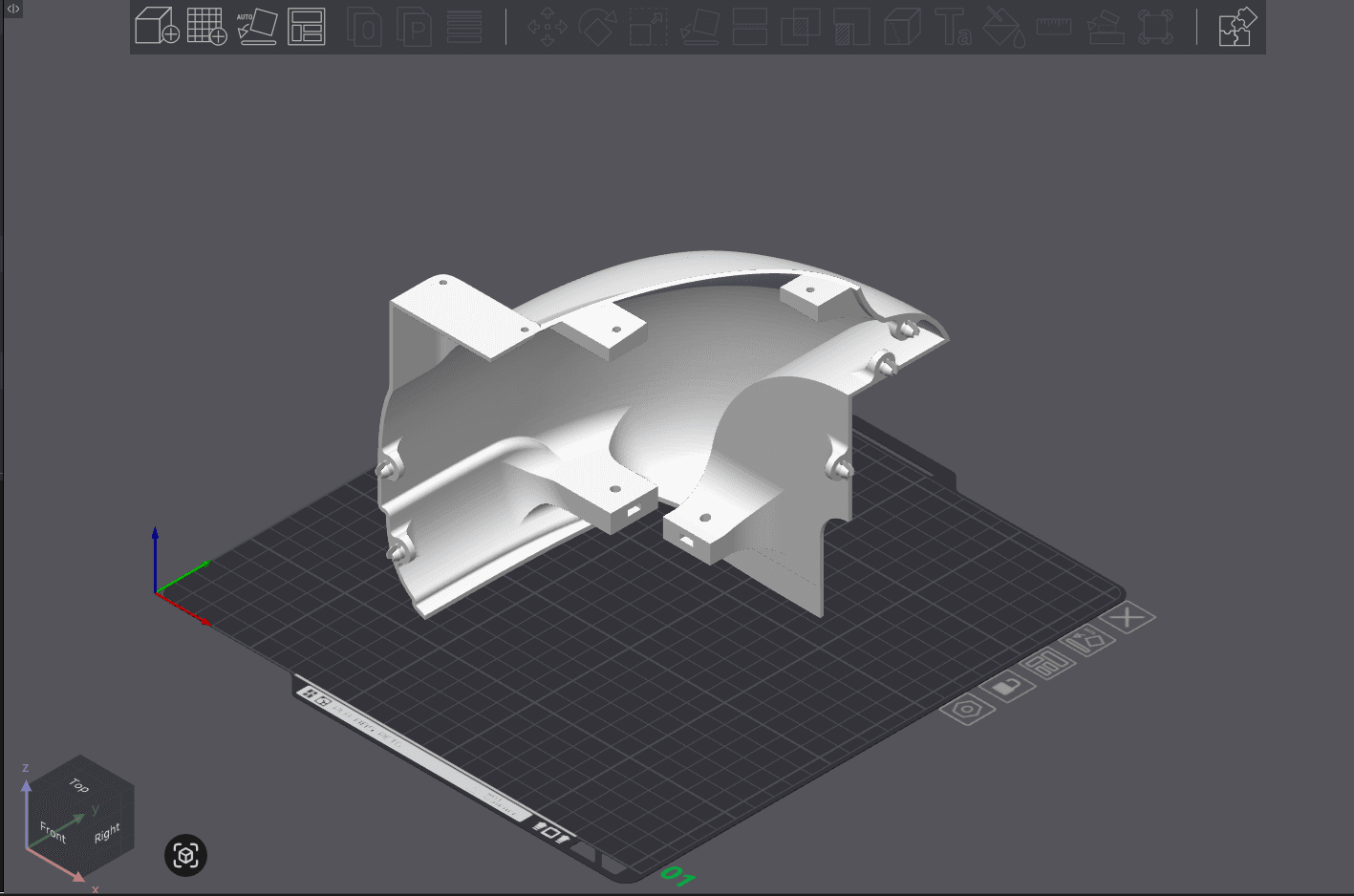

Pre-Sliced View (Raw Model on Build Plate)

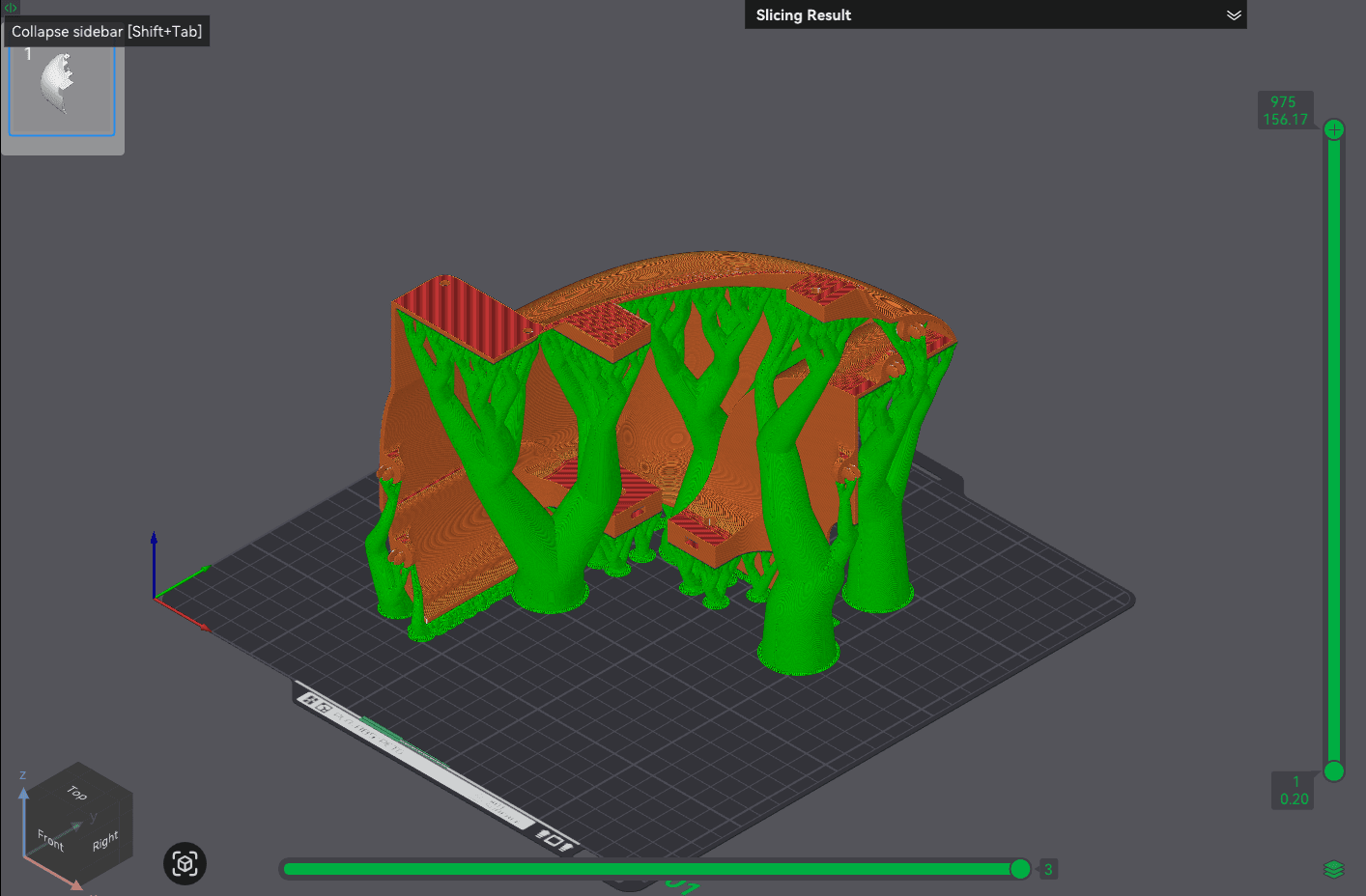

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
3. BaseRearLeft

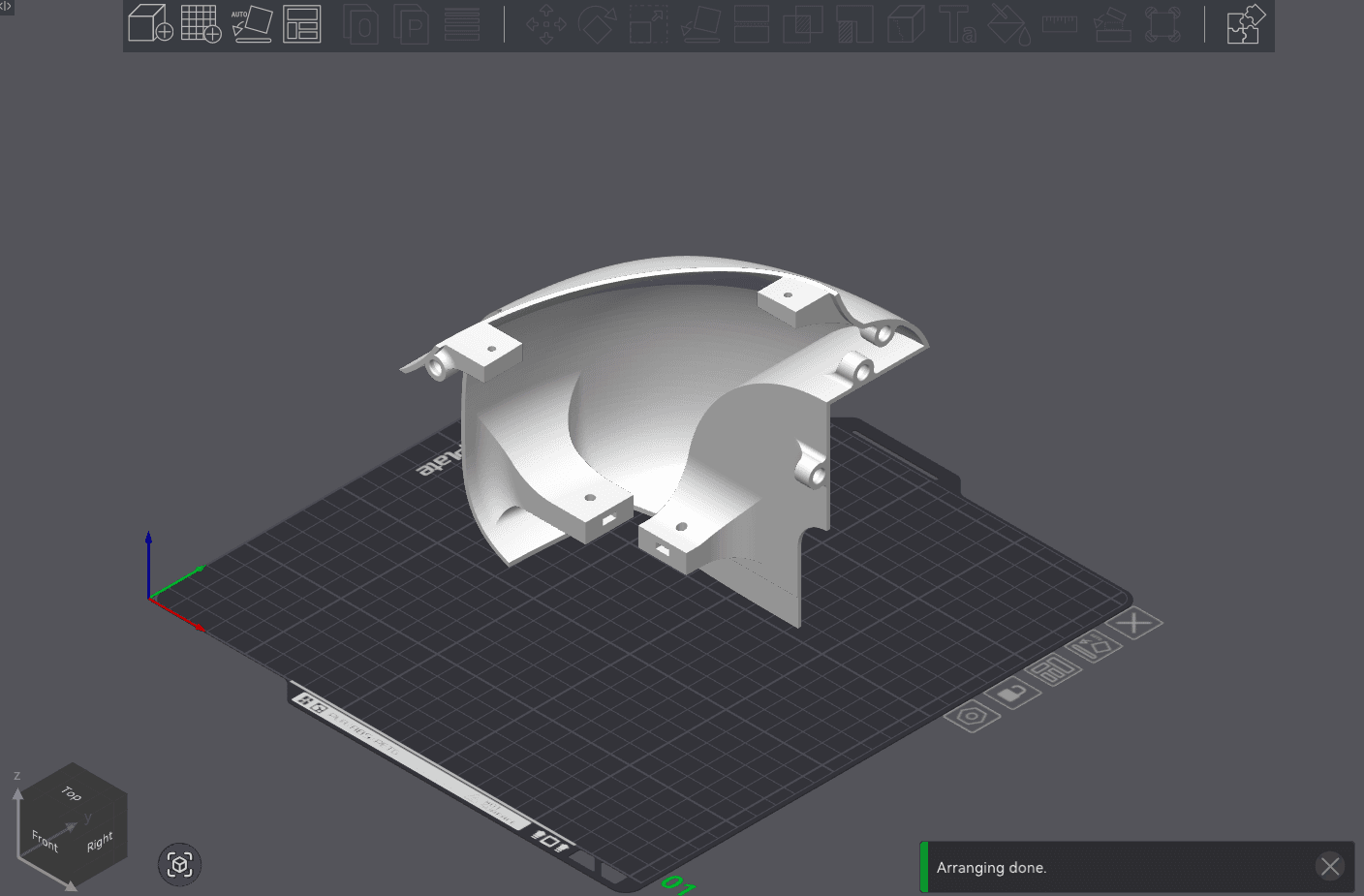

Pre-Sliced View (Raw Model on Build Plate)

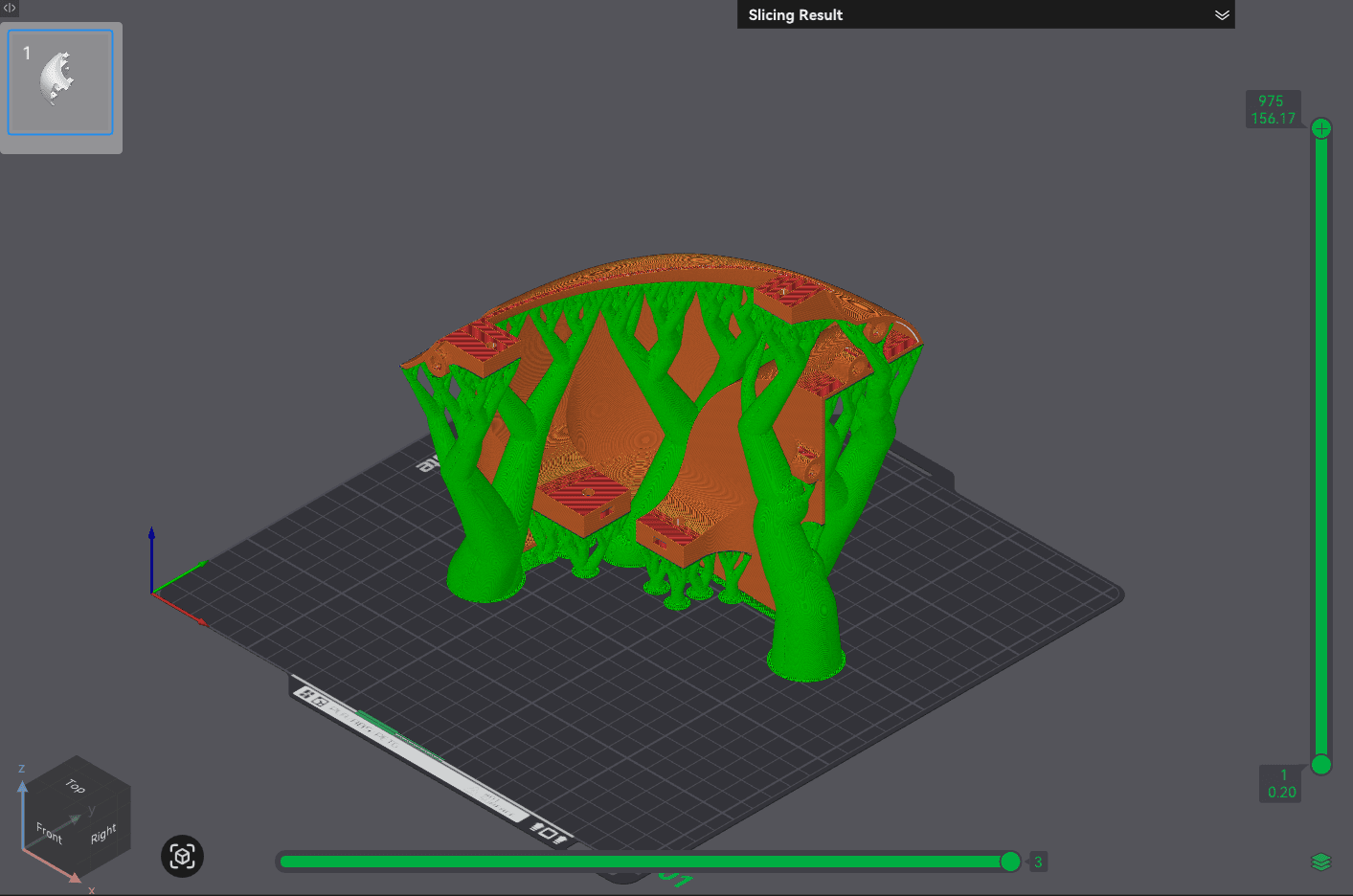

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
4. BaseRearRight

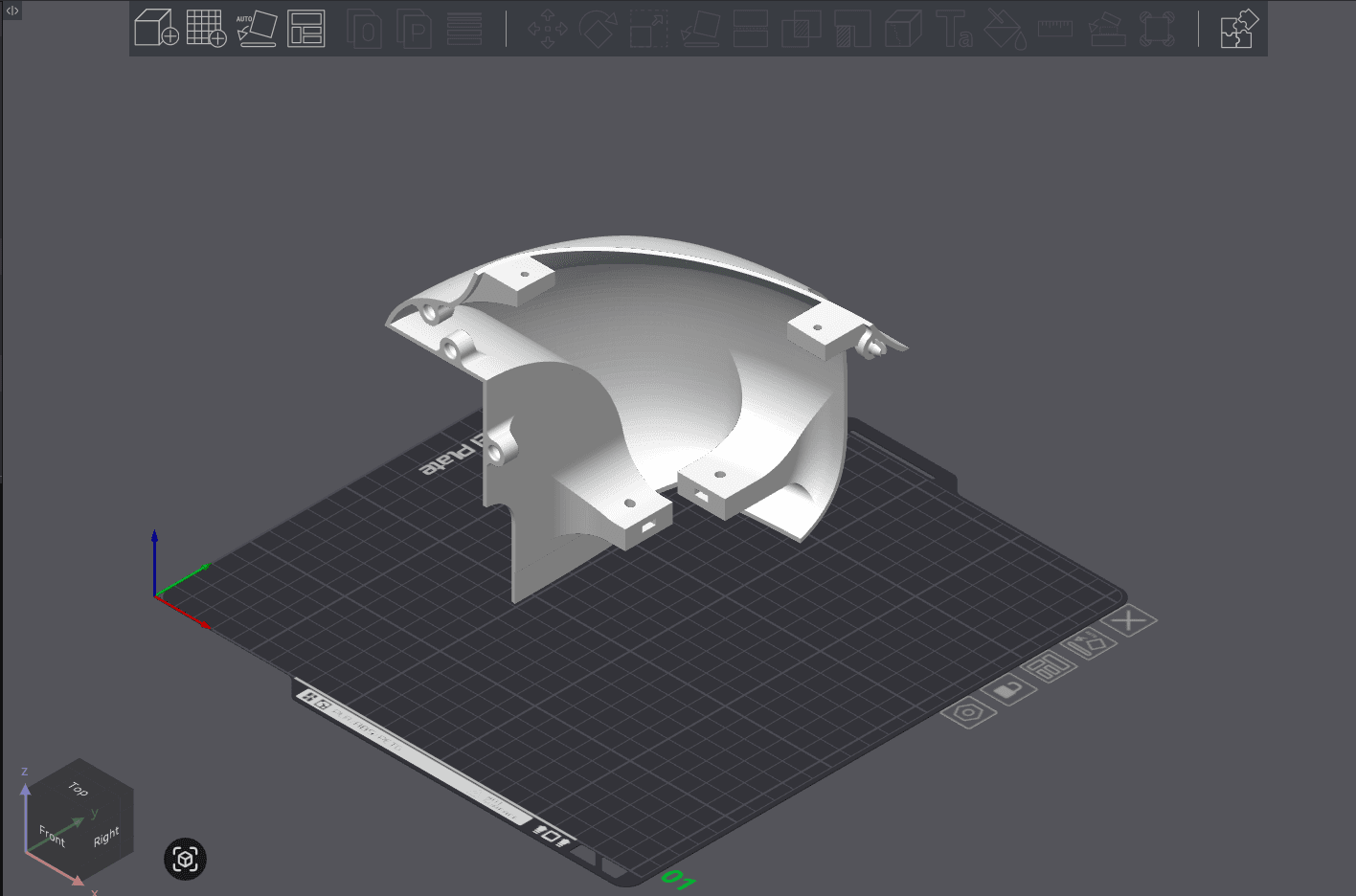

Pre-Sliced View (Raw Model on Build Plate)

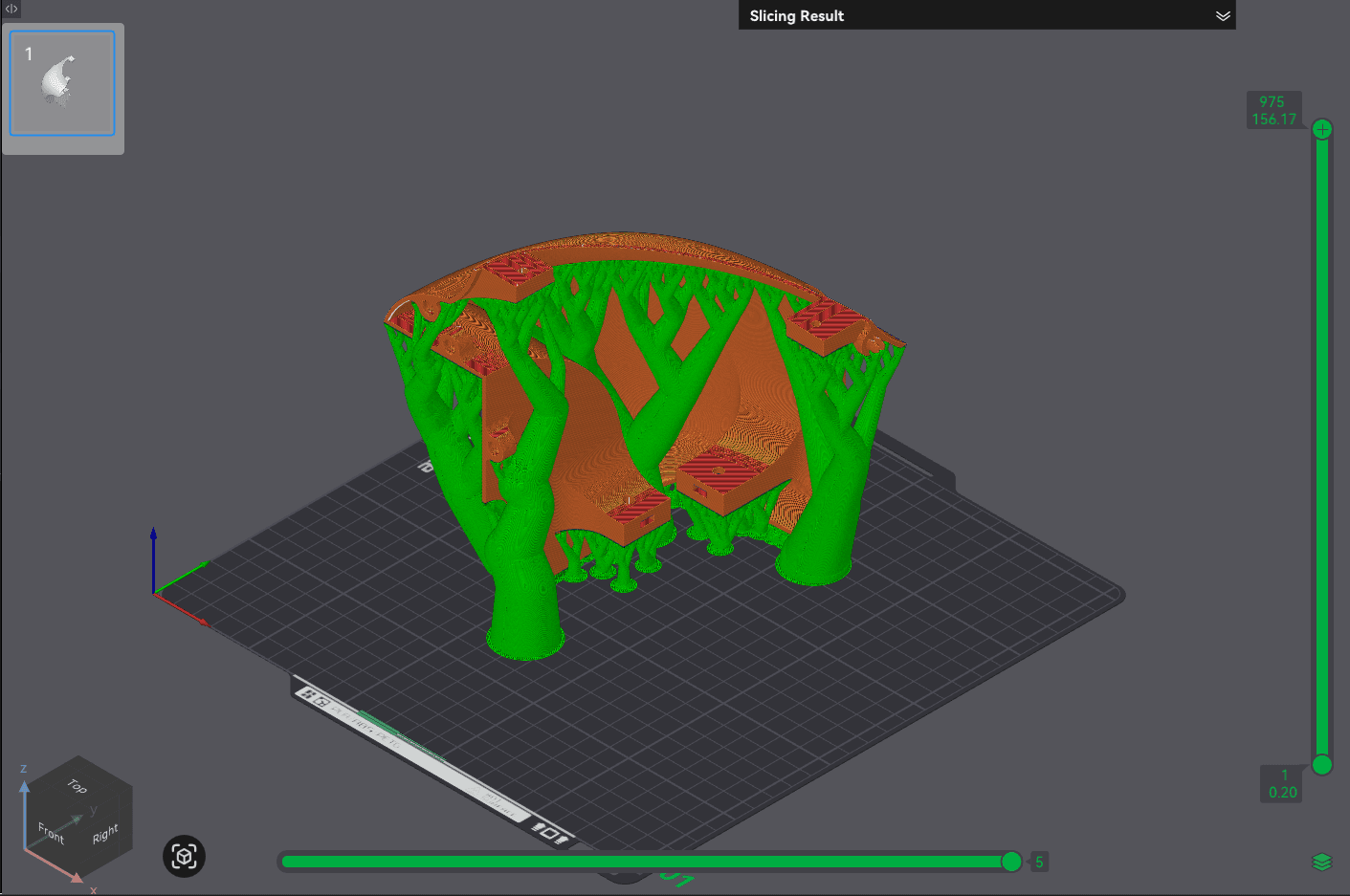

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
5. BaseCenterCover

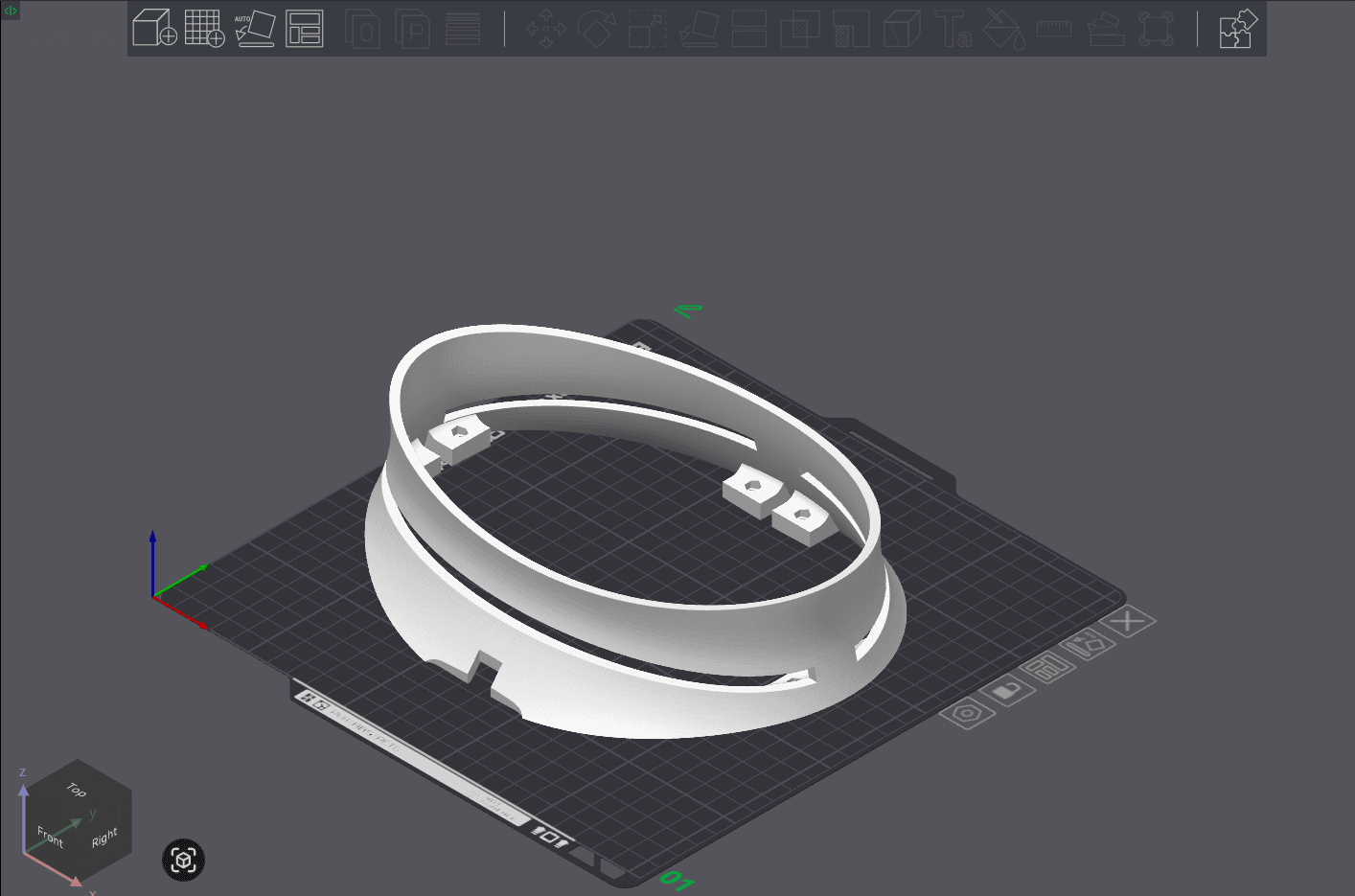

Pre-Sliced View (Raw Model on Build Plate)

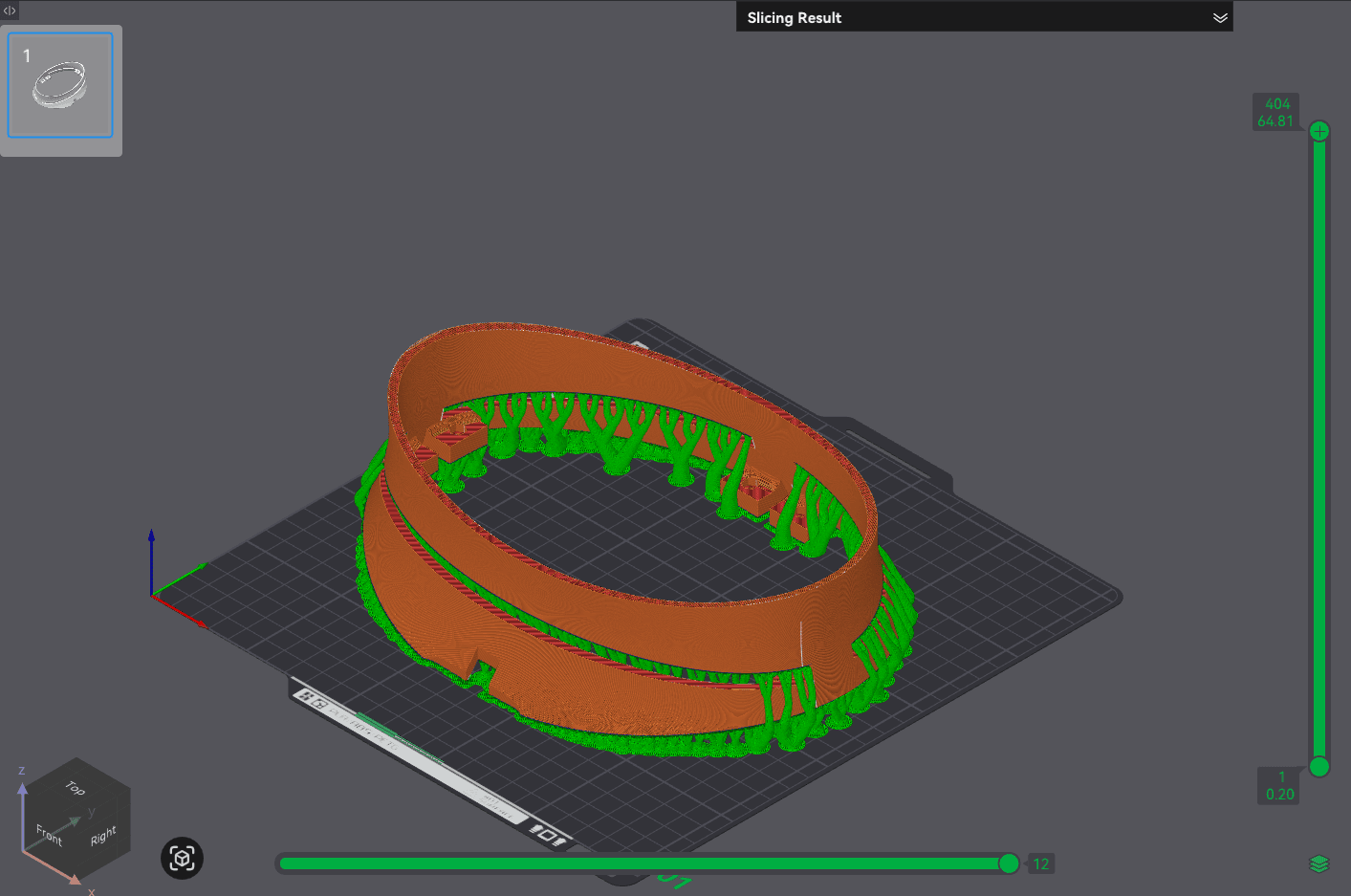

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
6. BatteryHolder

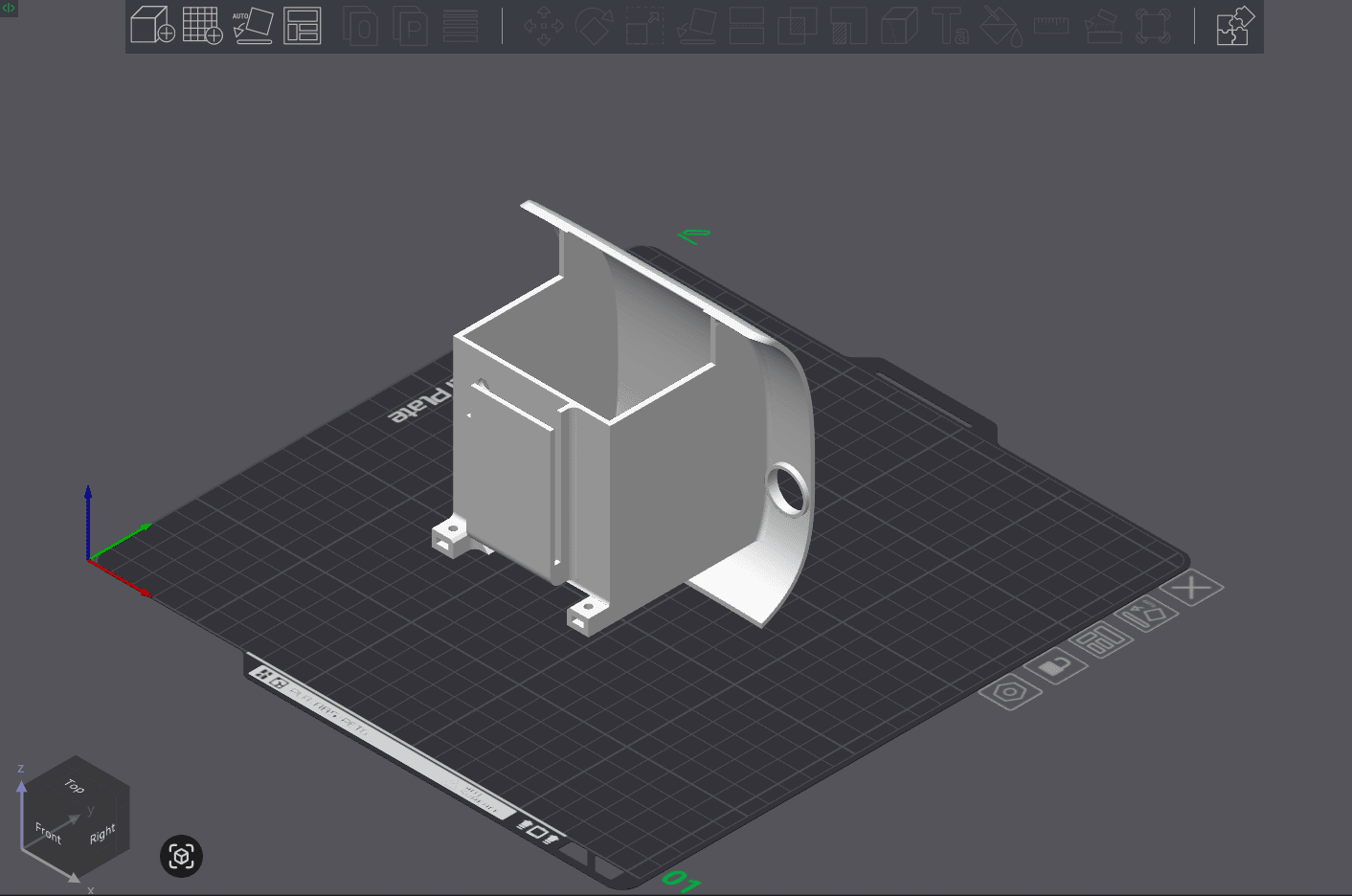

Pre-Sliced View (Raw Model on Build Plate)

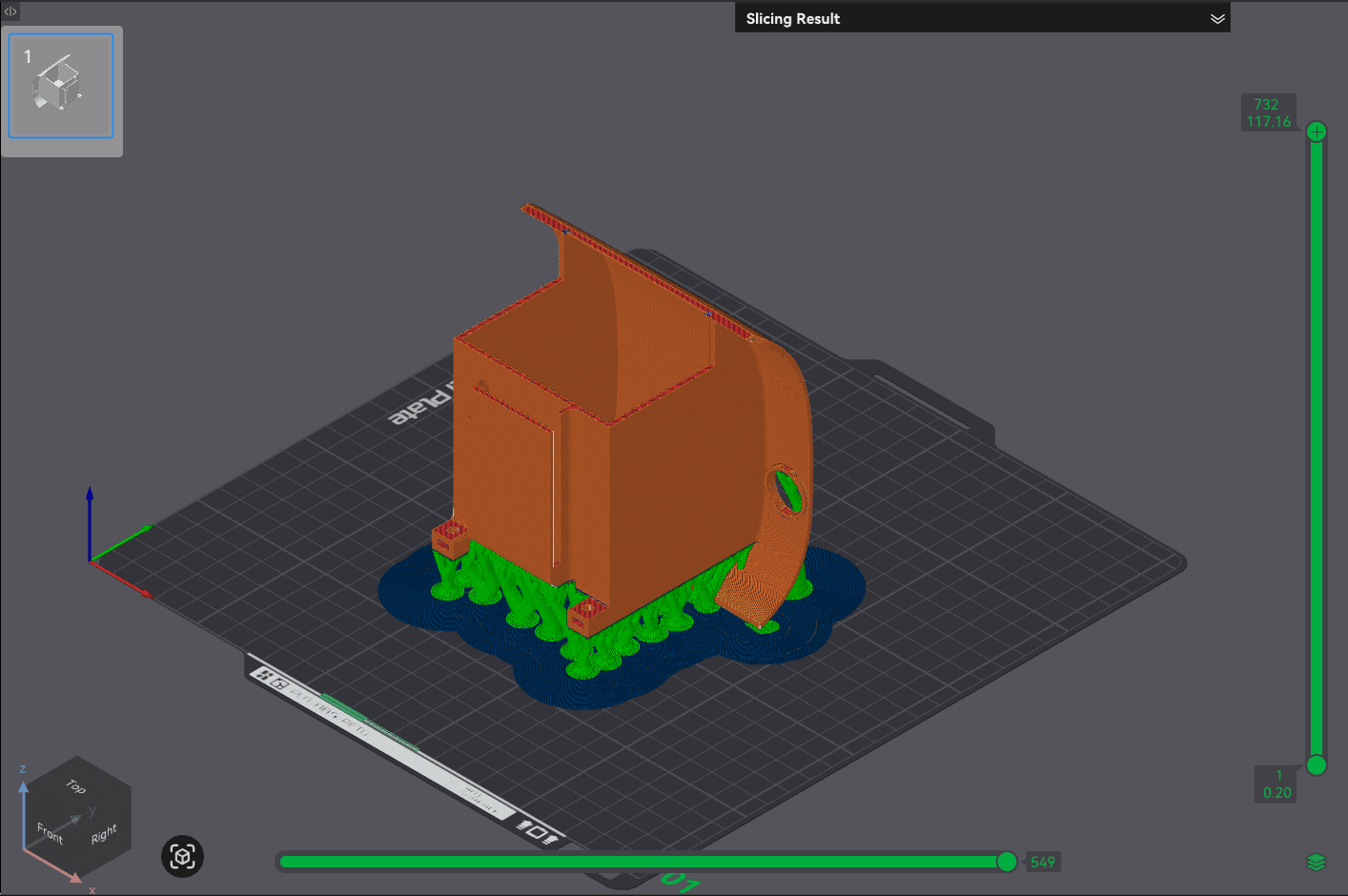

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
7. BaseAcrylicHolder

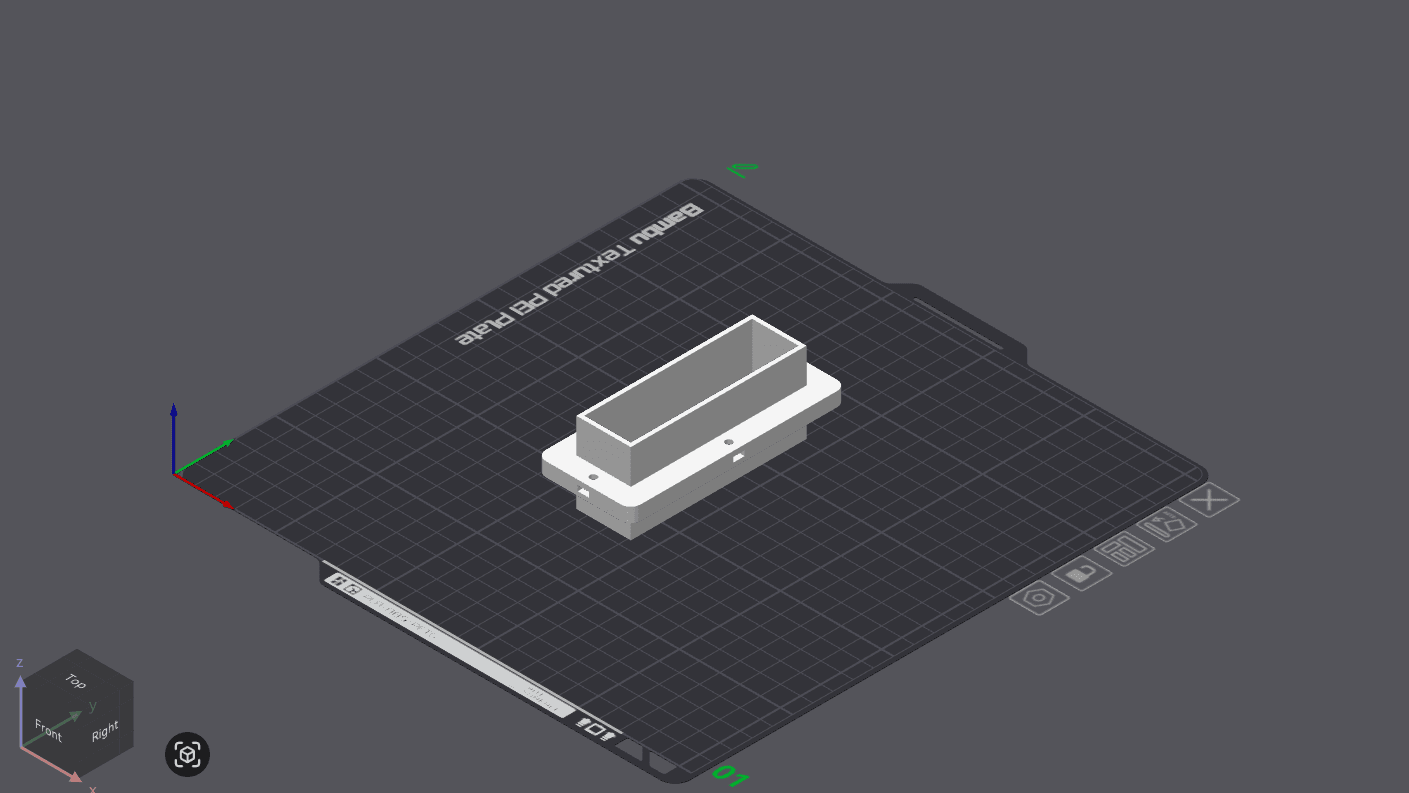

Pre-Sliced View (Raw Model on Build Plate)

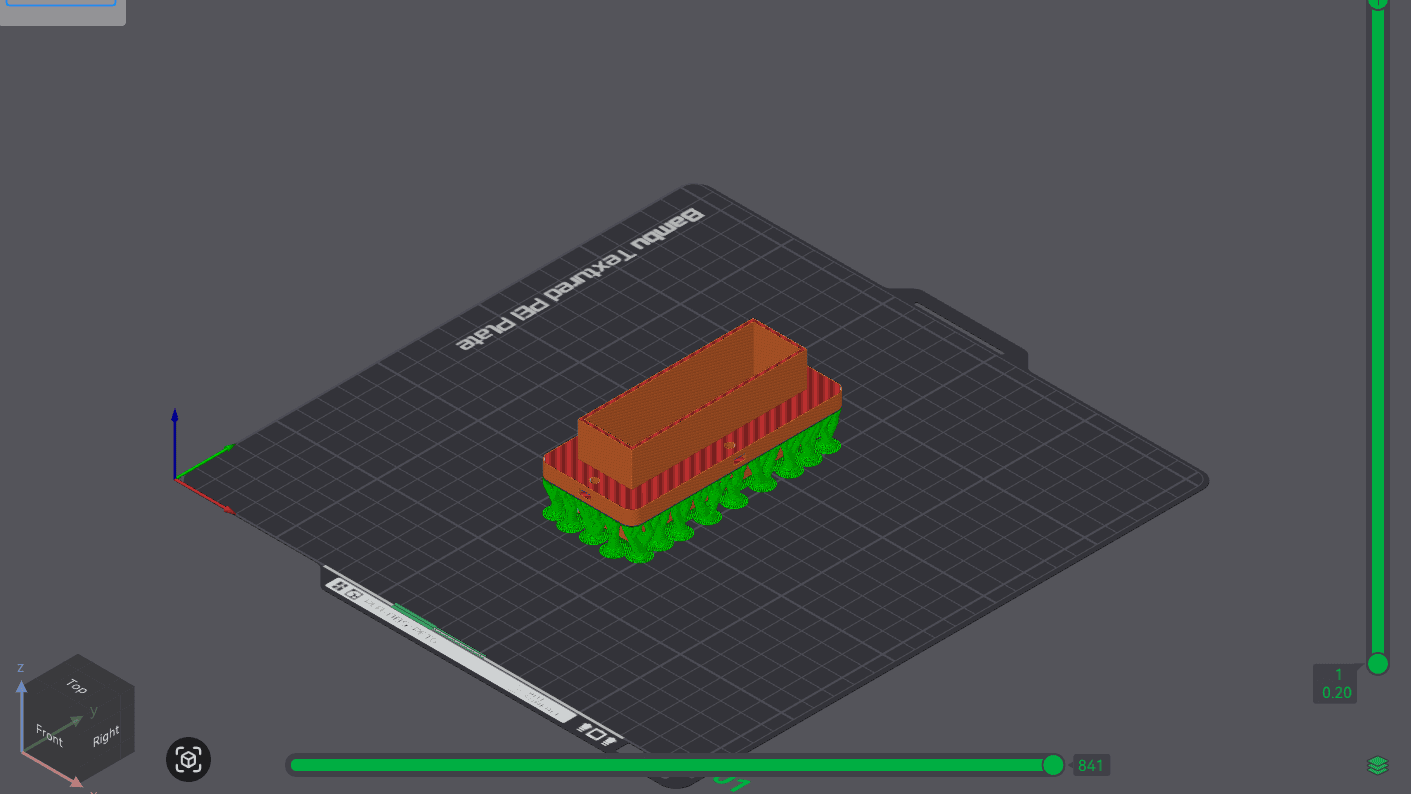

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
8. BaseJoint

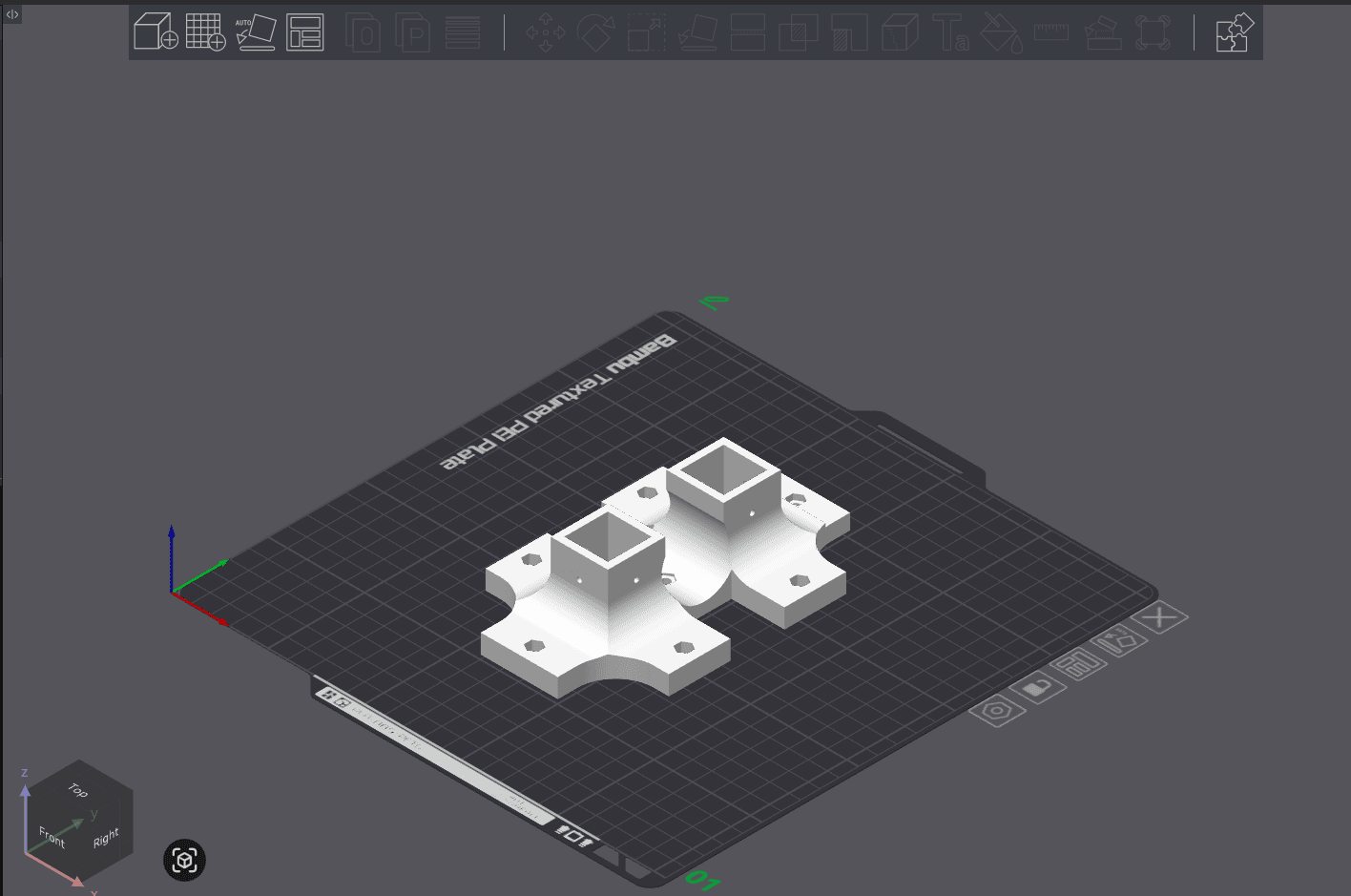

Pre-Sliced View (Raw Model on Build Plate)

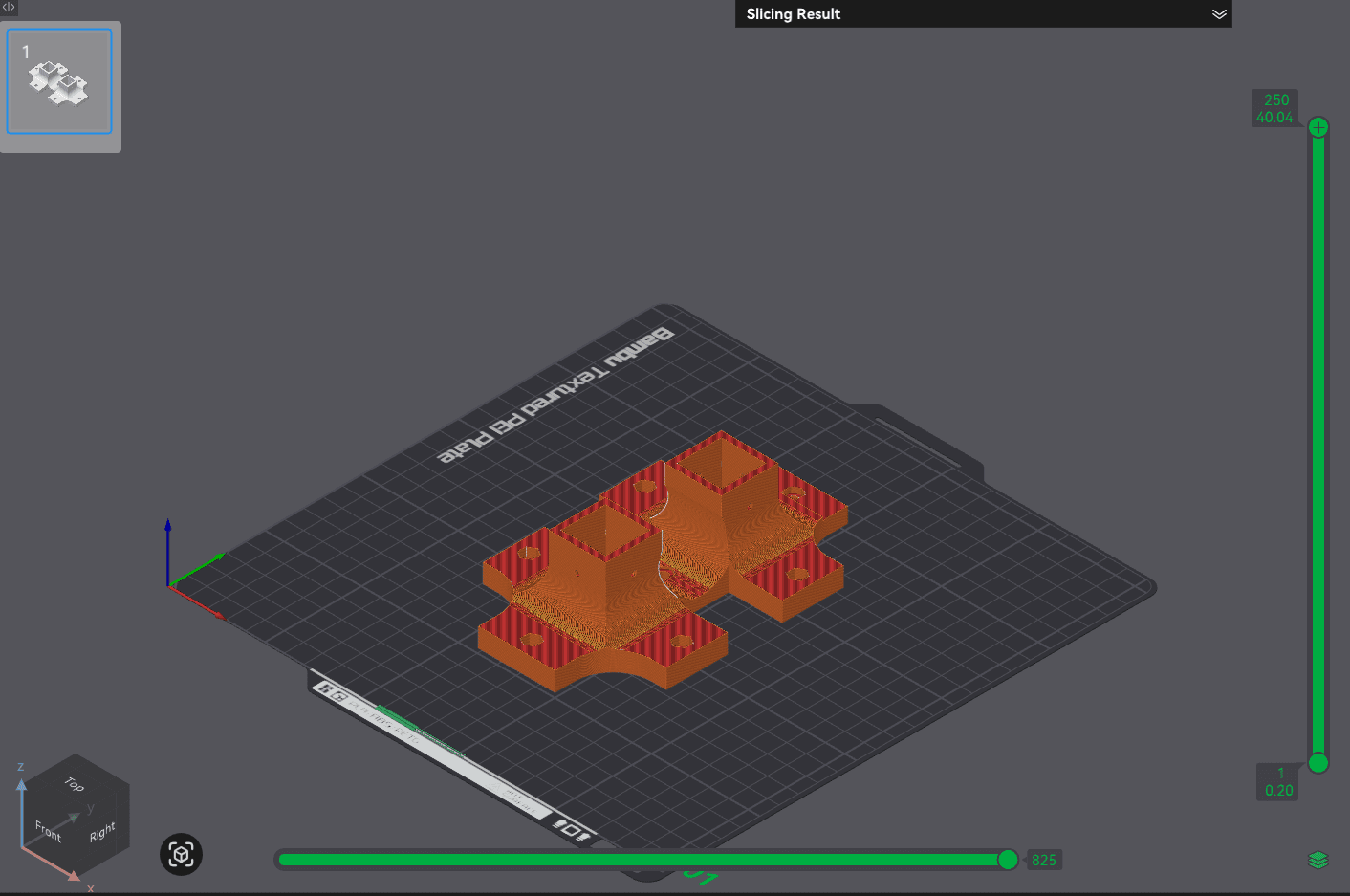

Post-Sliced View (Slicer Preview)
Raft not required.
9. MotorStabilizer

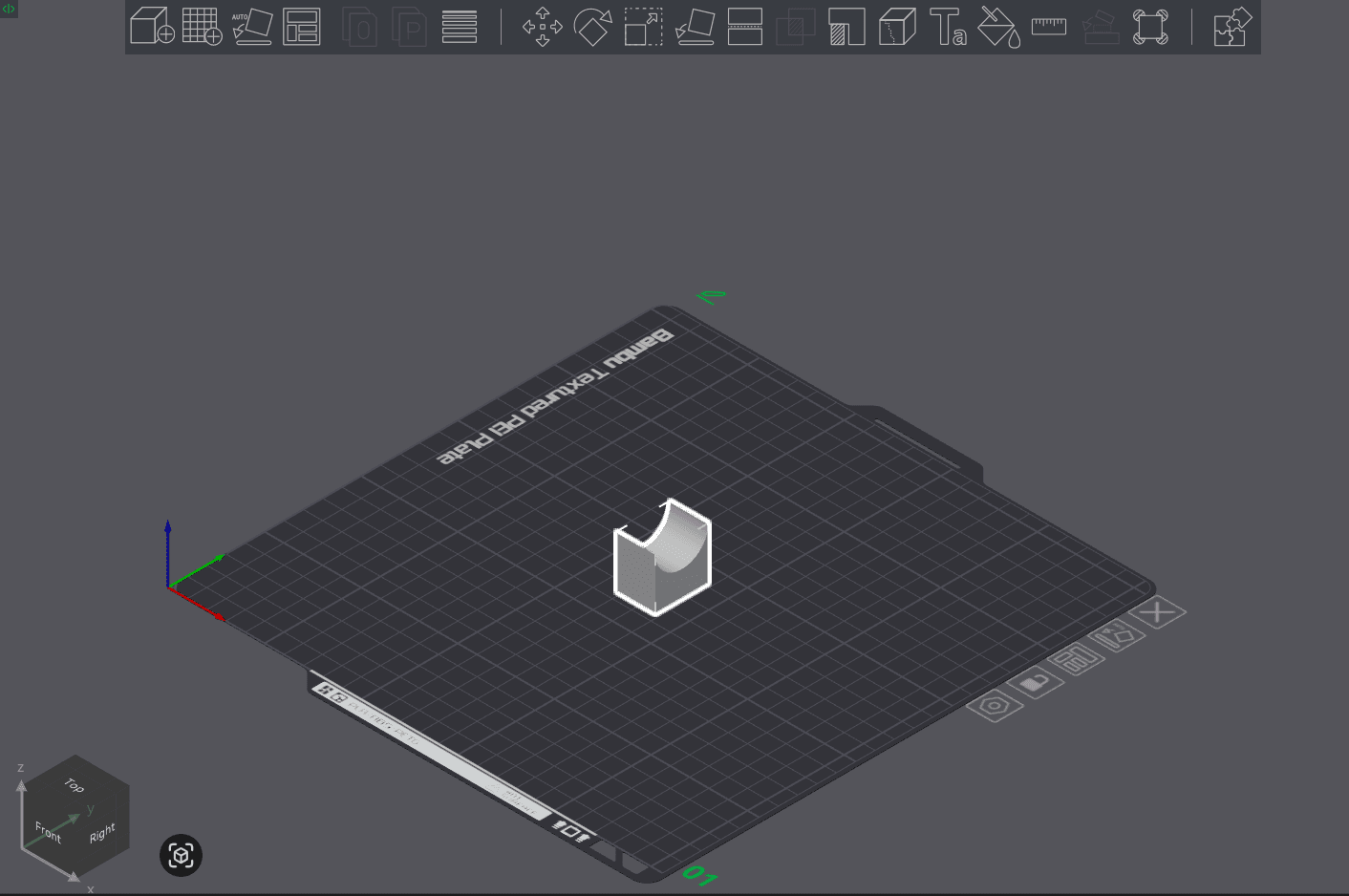

Pre-Sliced View (Raw Model on Build Plate)

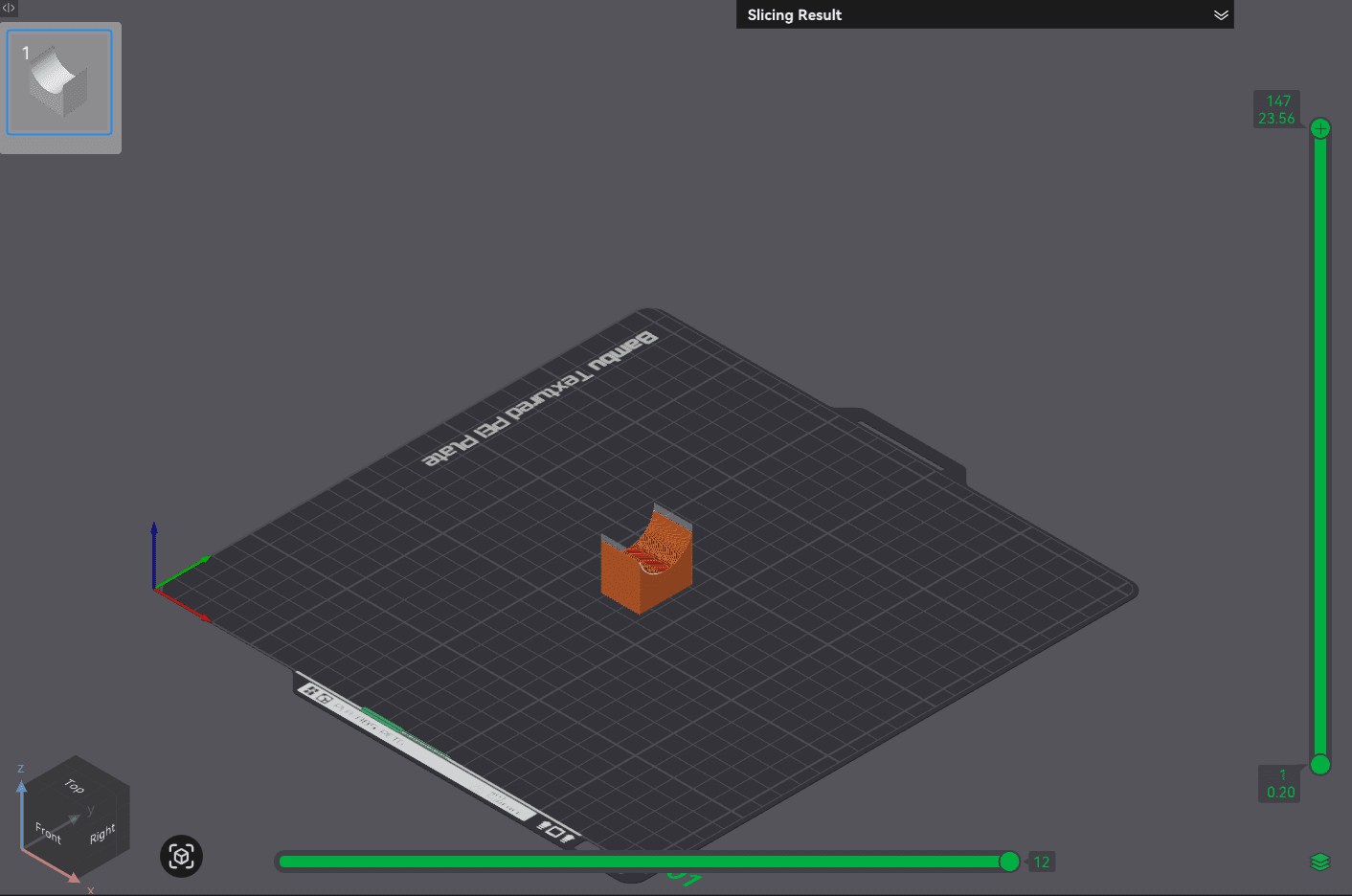

Post-Sliced View (Slicer Preview)
Raft not required.
10. BatteryRail

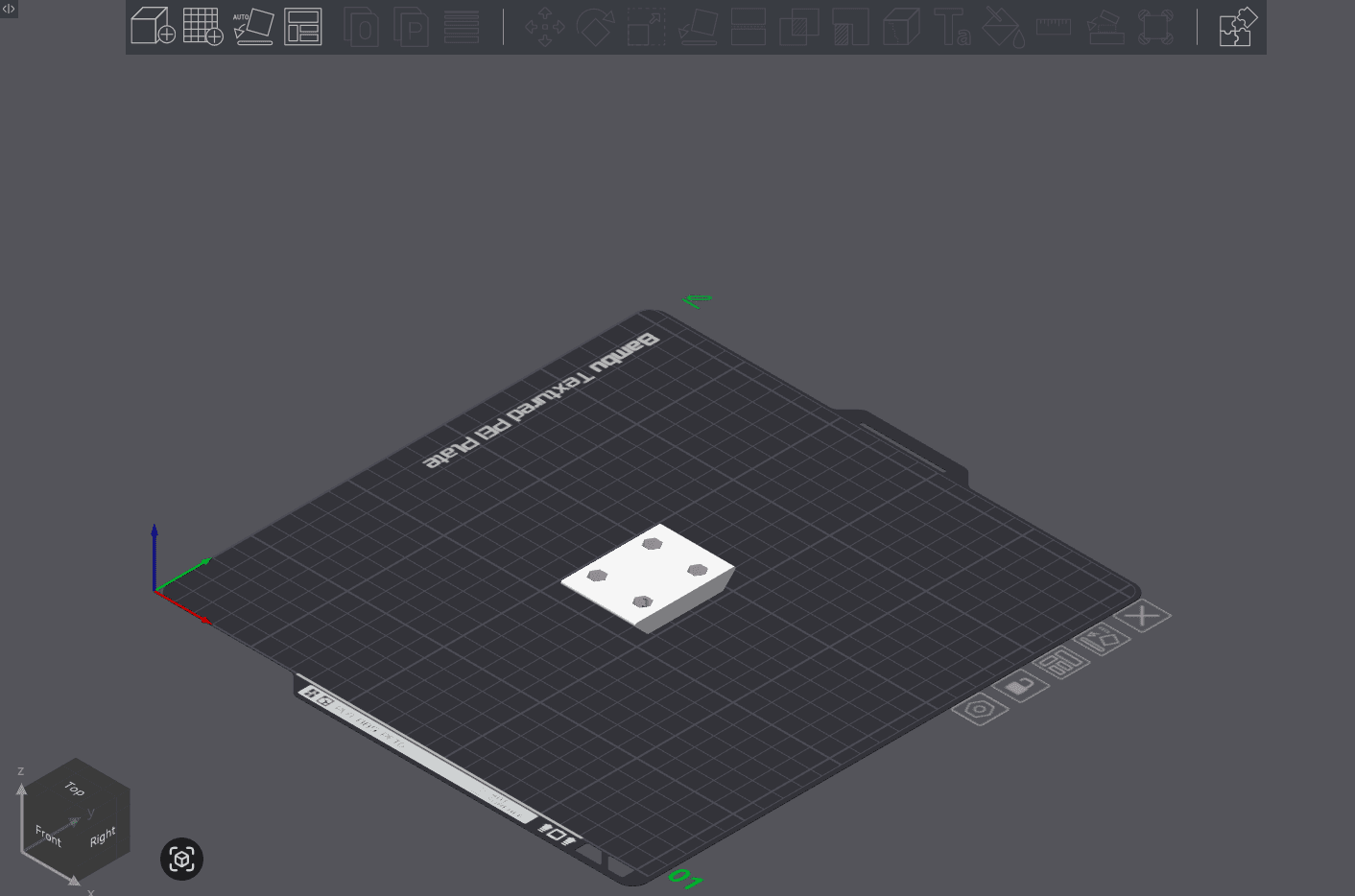

Pre-Sliced View (Raw Model on Build Plate)

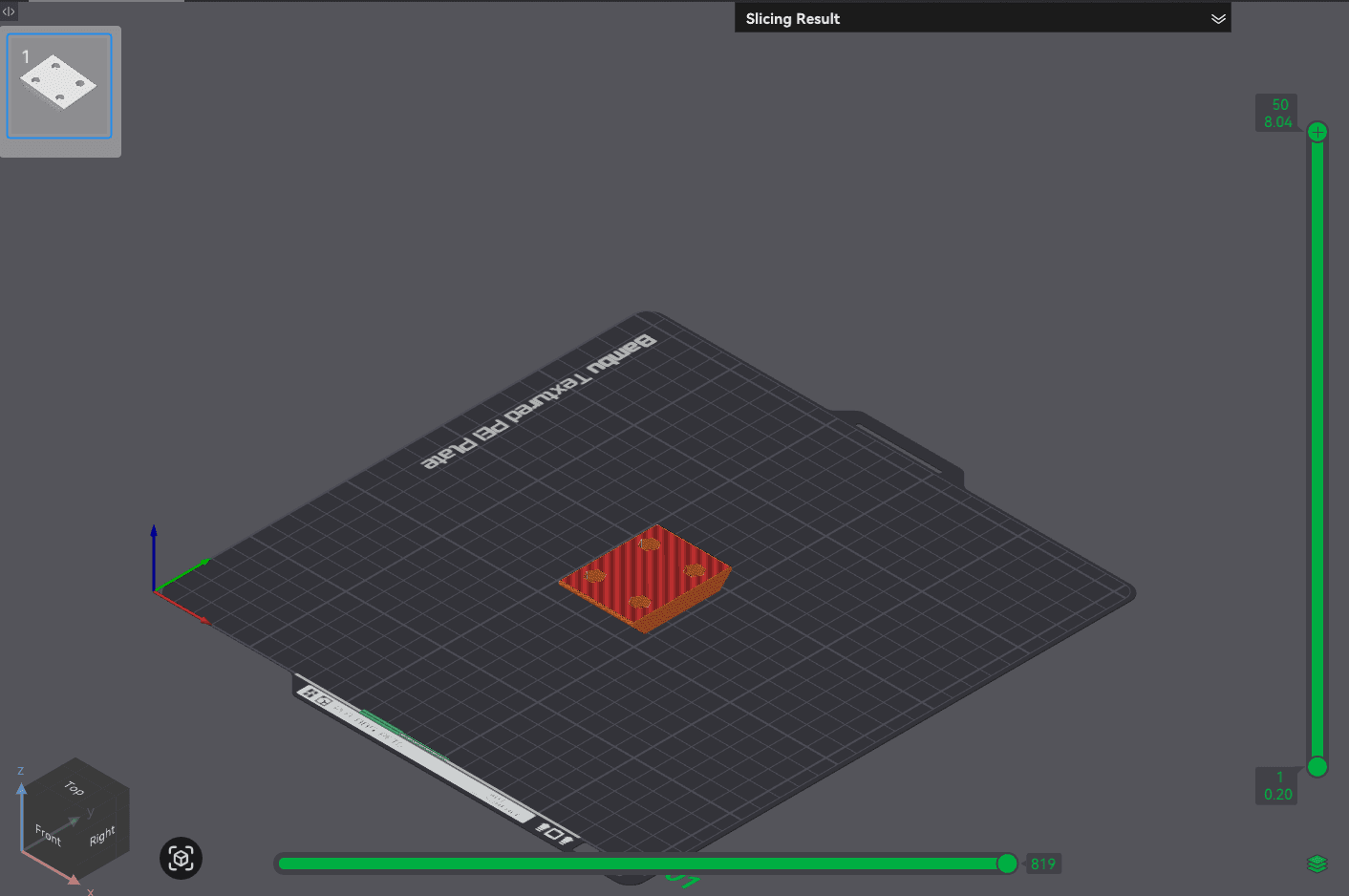

Post-Sliced View (Slicer Preview)
Raft not required.
11. BaseLowerShell

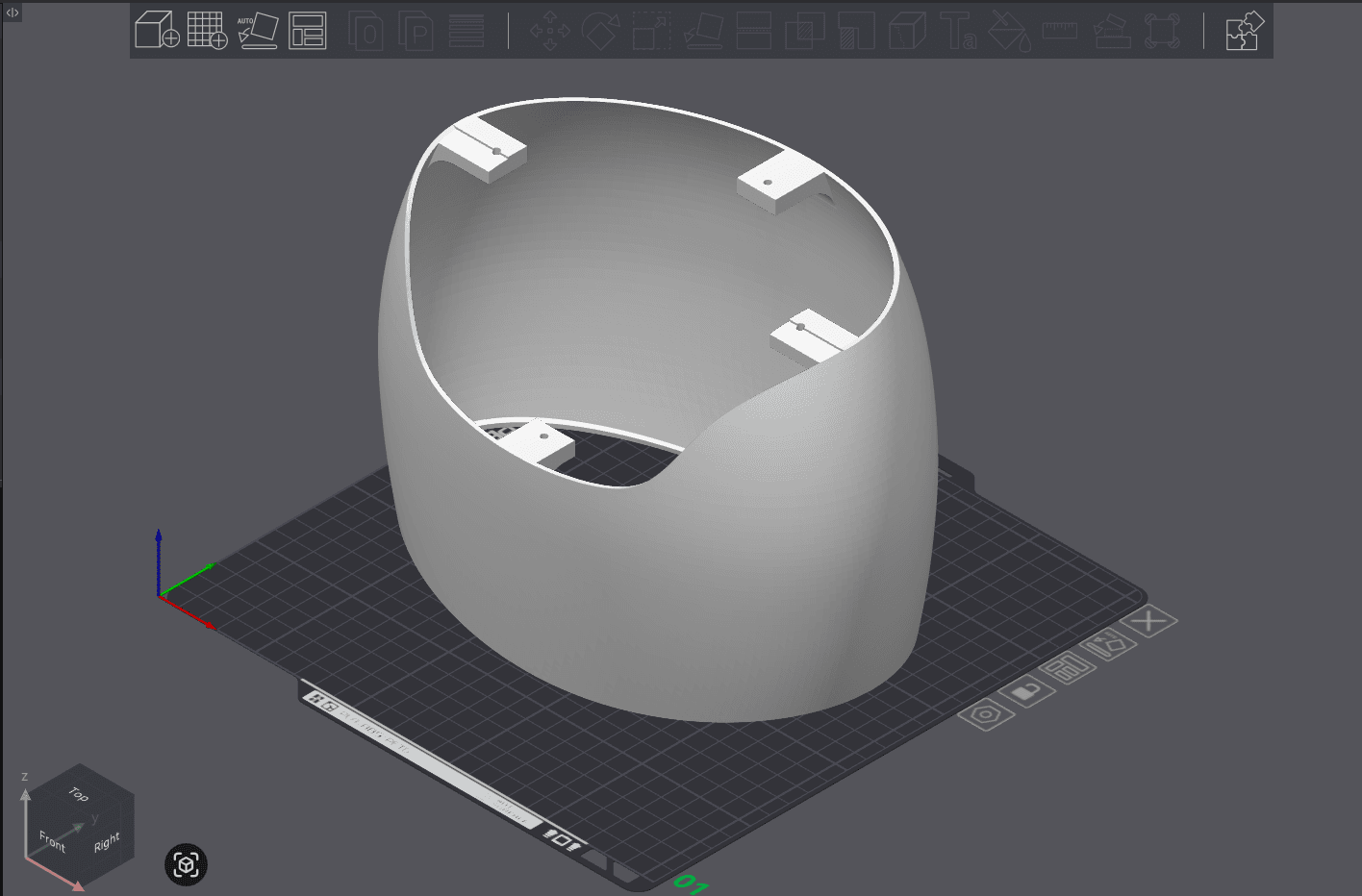

Pre-Sliced View (Raw Model on Build Plate)

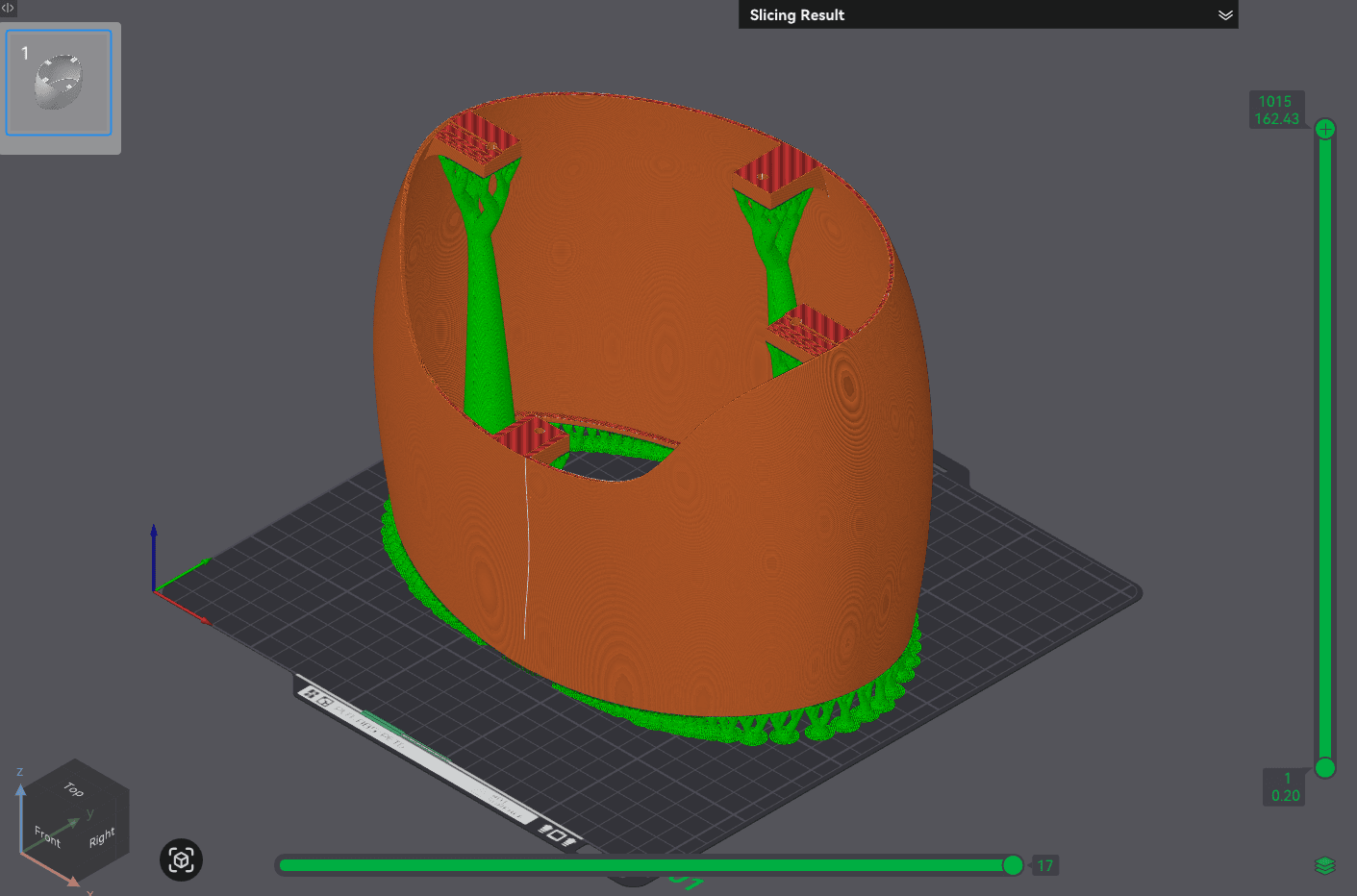

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
12. BaseCenterShell

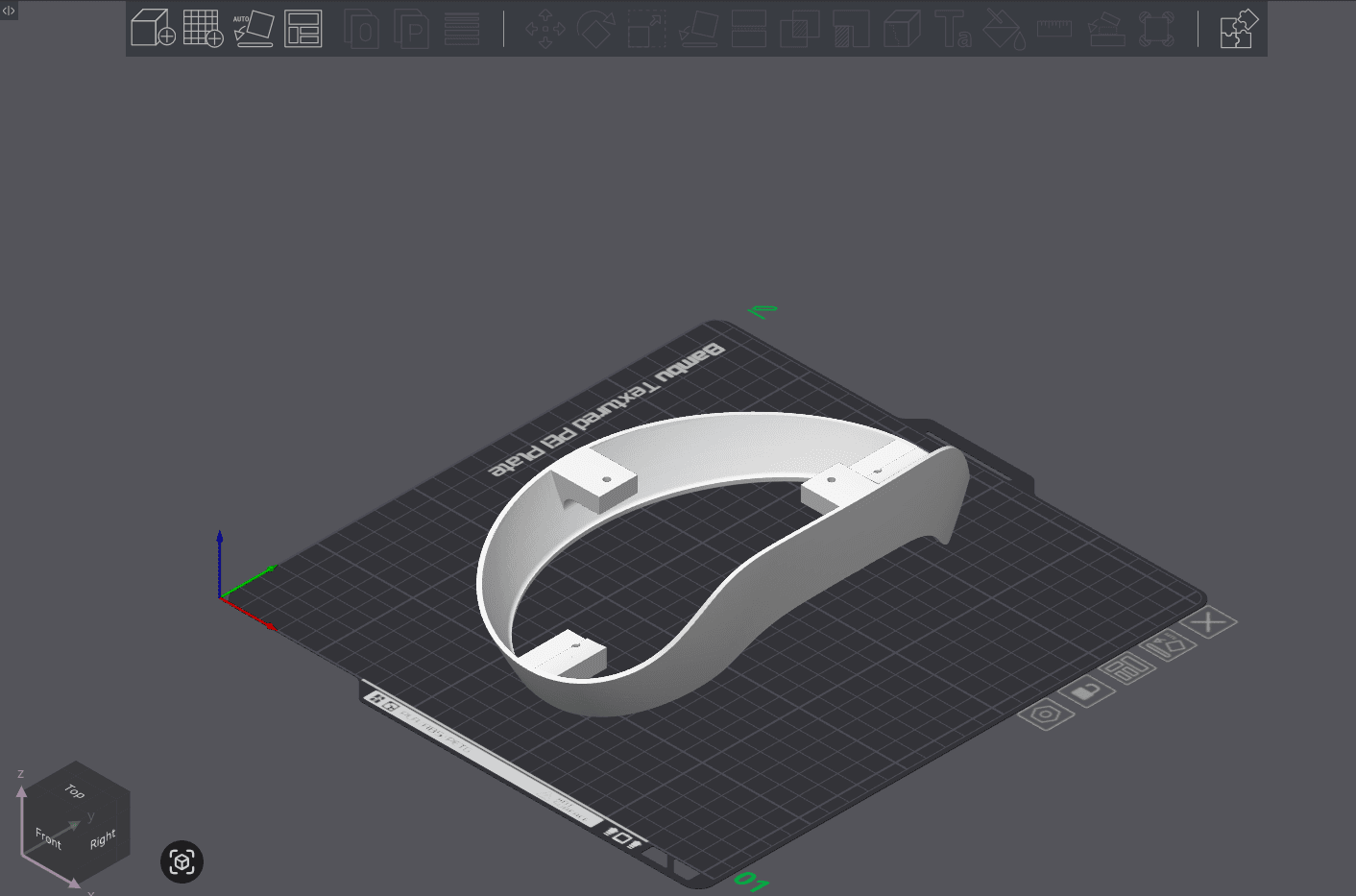

Pre-Sliced View (Raw Model on Build Plate)

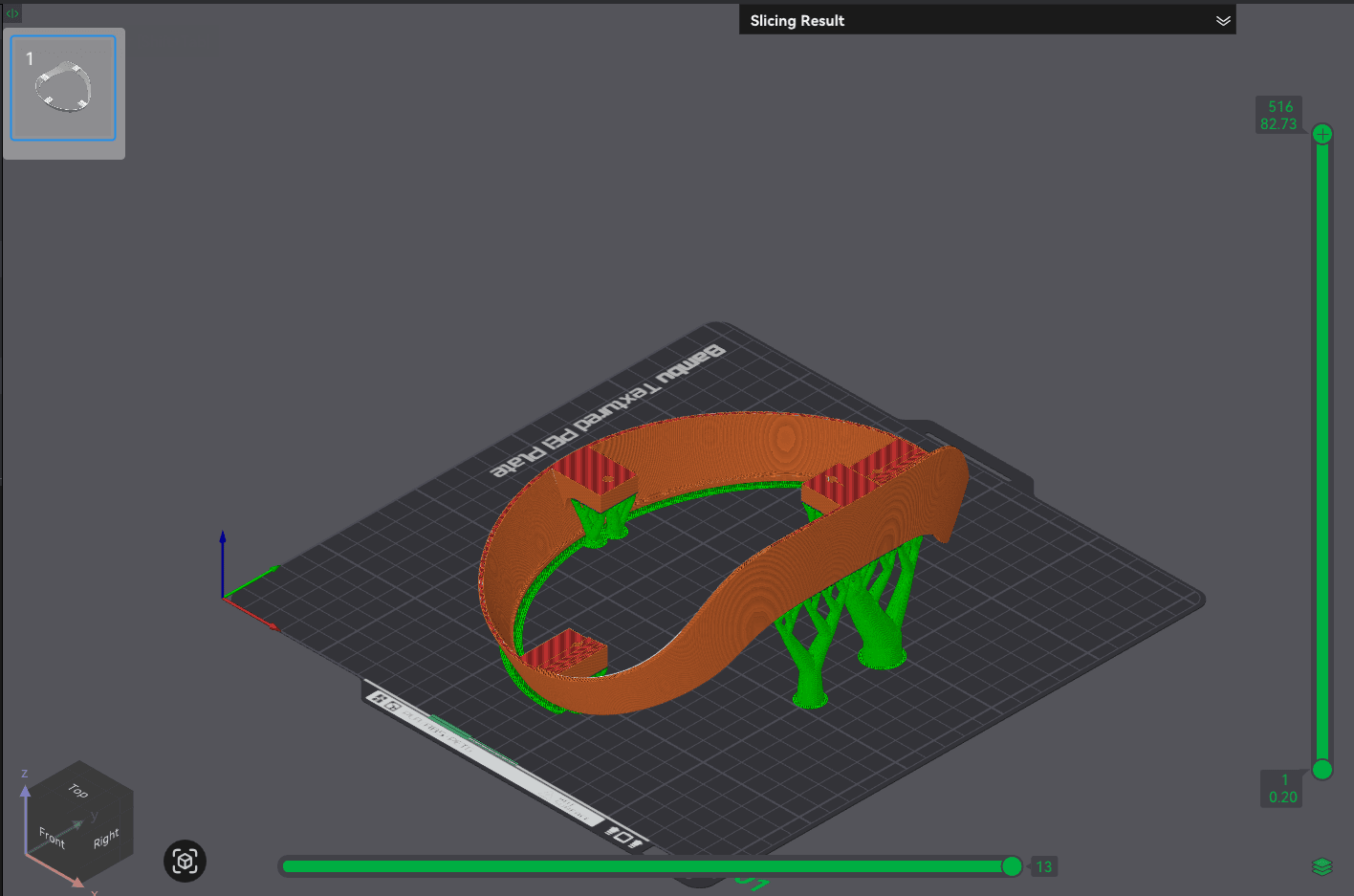

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm Raft Contact Z Distance.
13. BaseTopShell

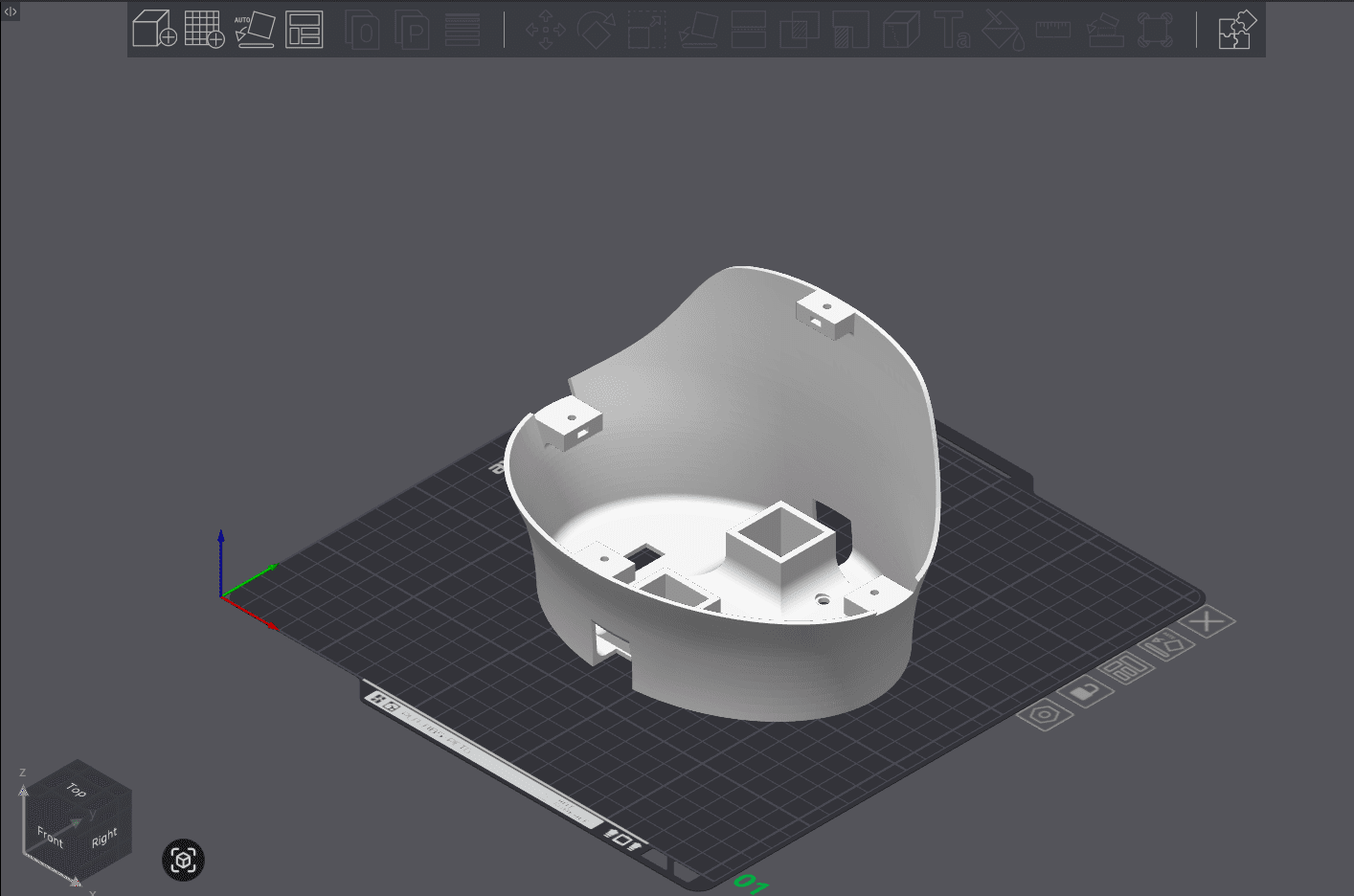

Pre-Sliced View (Raw Model on Build Plate)

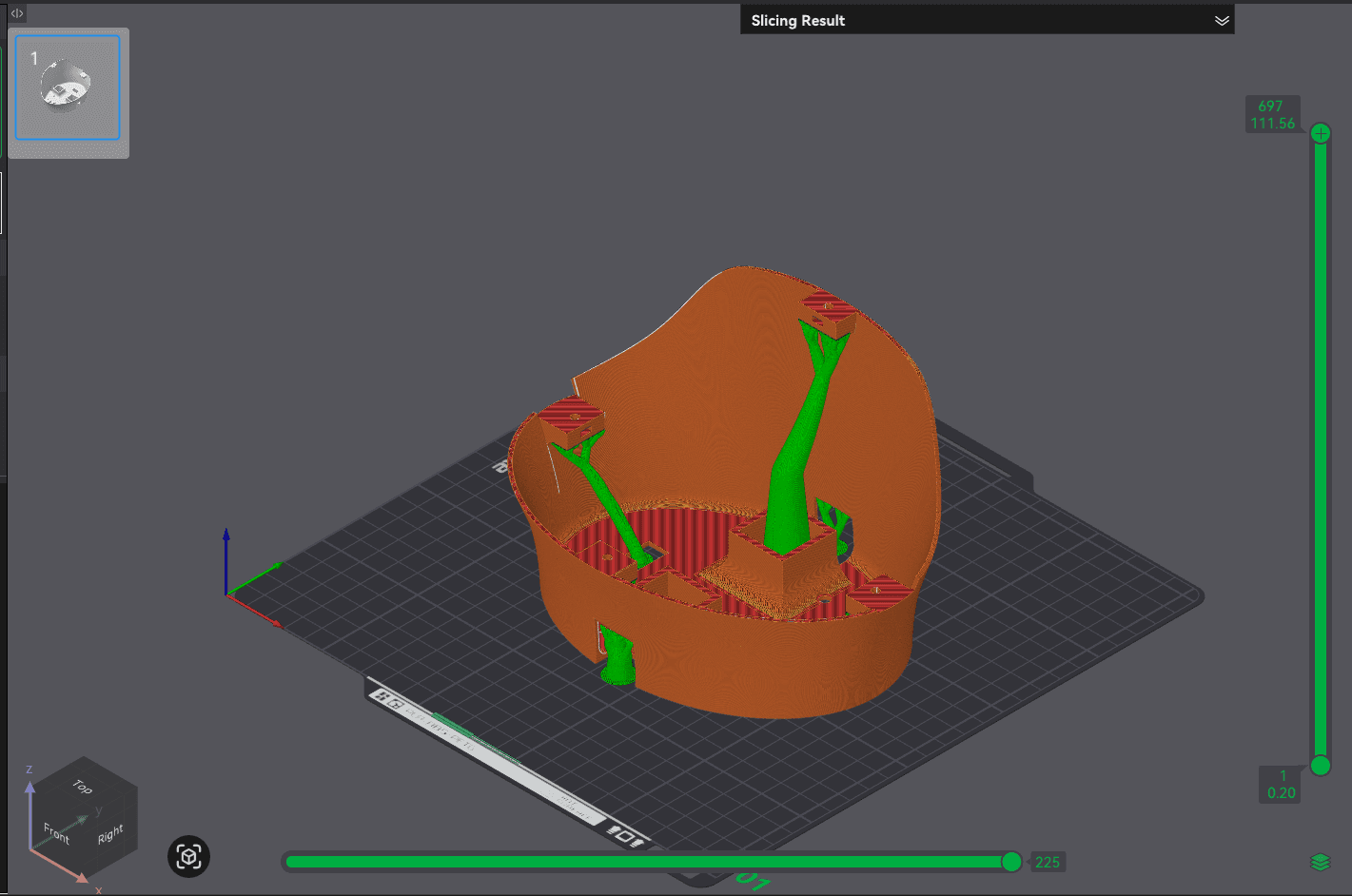

Post-Sliced View (Slicer Preview)
Raft not required.
