Upper Parts
This document is a dedicated reference for all BonicBot A2 upper components. It defines the validated print orientation, slicing view, and raft requirements for each upper part. Numbering starts from 1 for this section.
1. UpperFrontLower

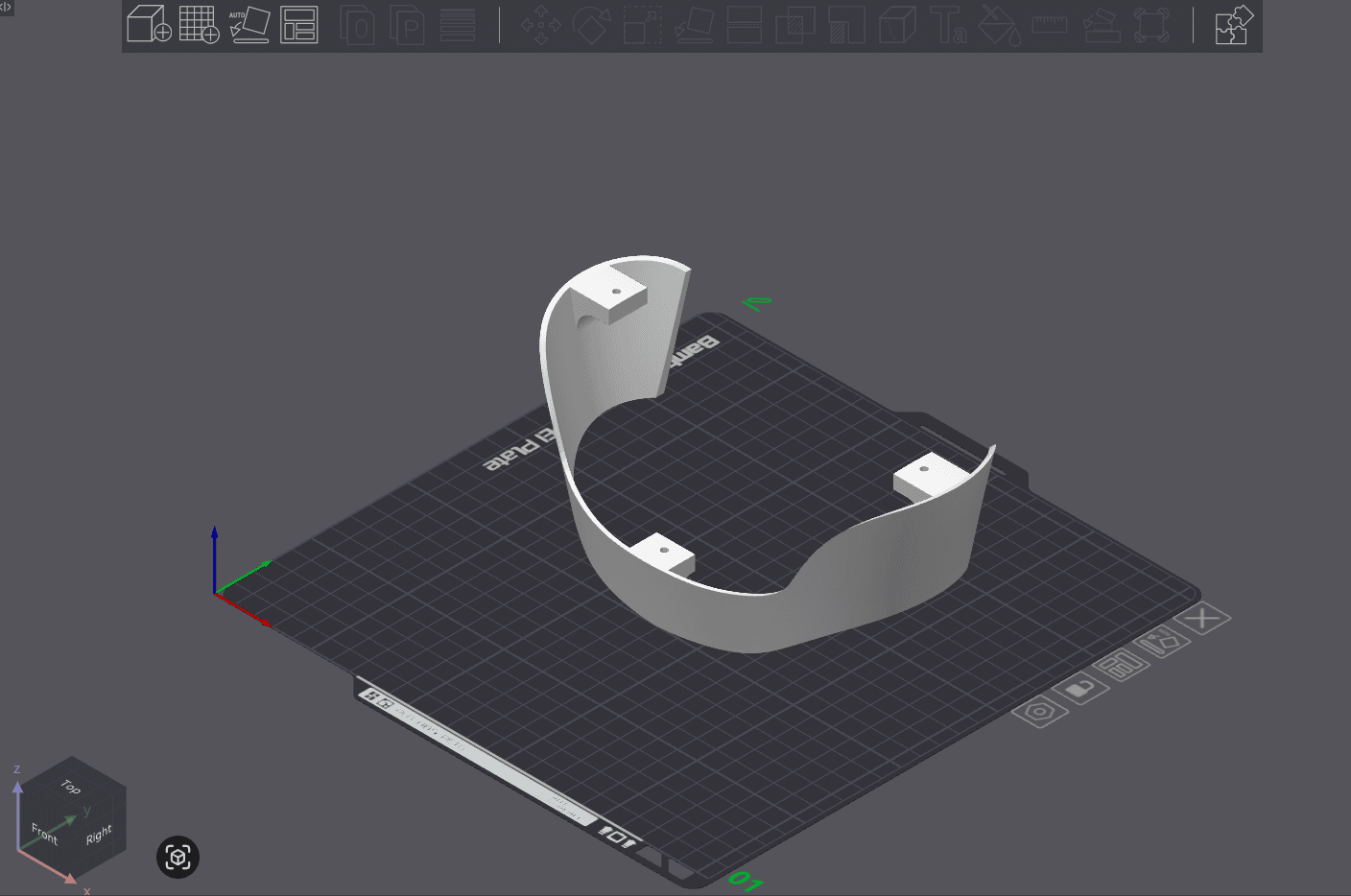

Pre-Sliced View (Raw Model on Build Plate)

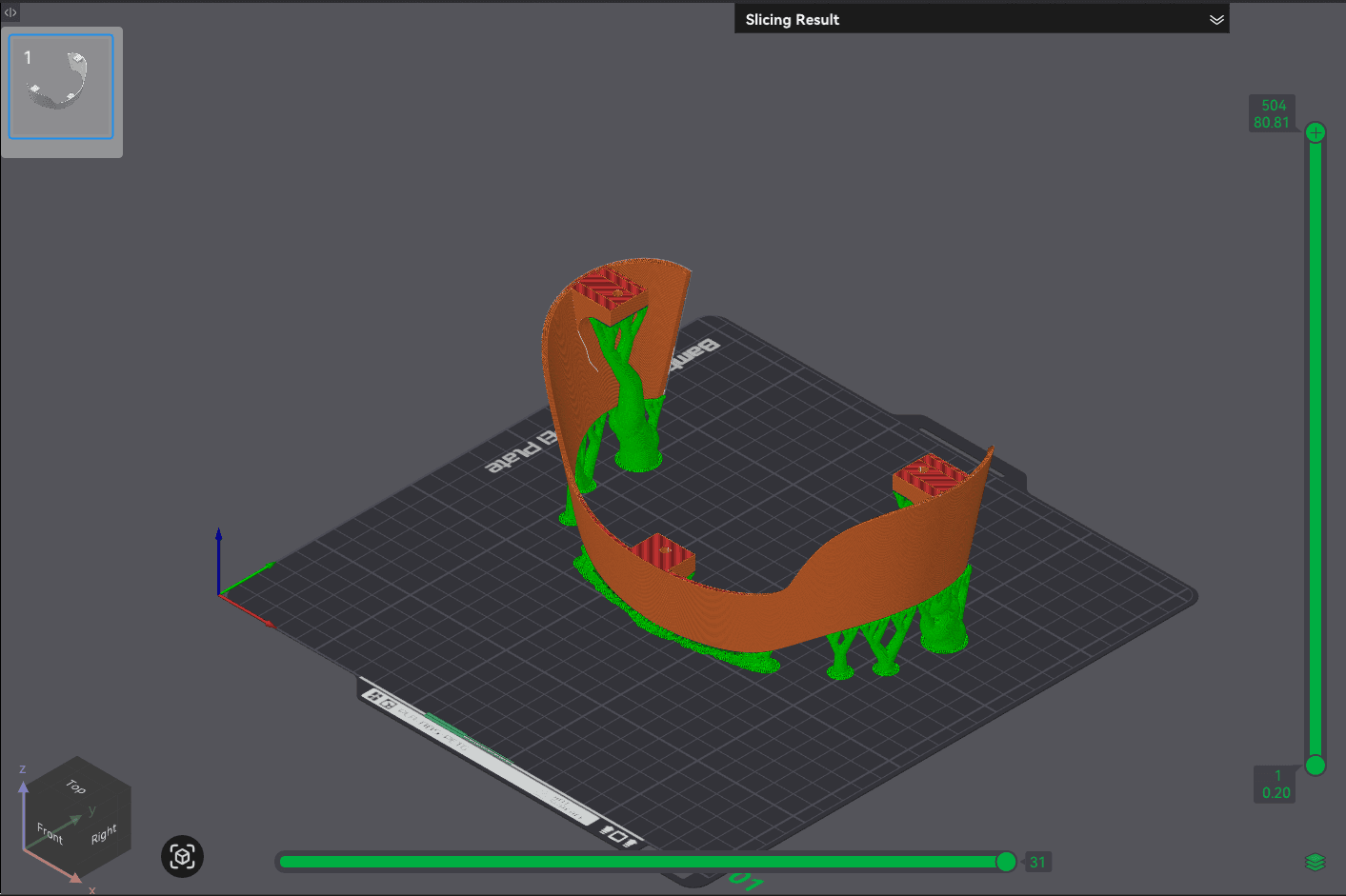

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
2. UpperBackLower

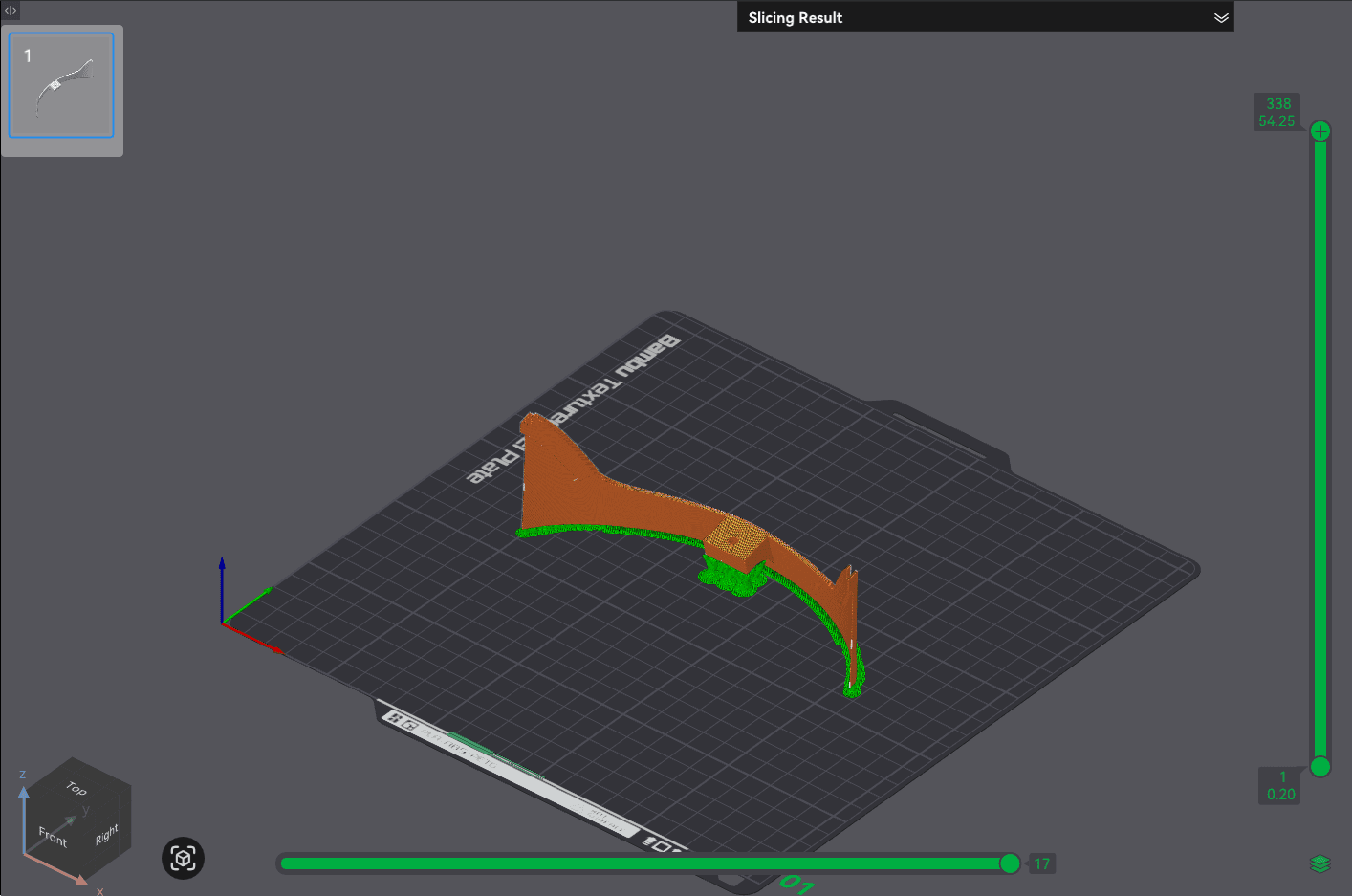

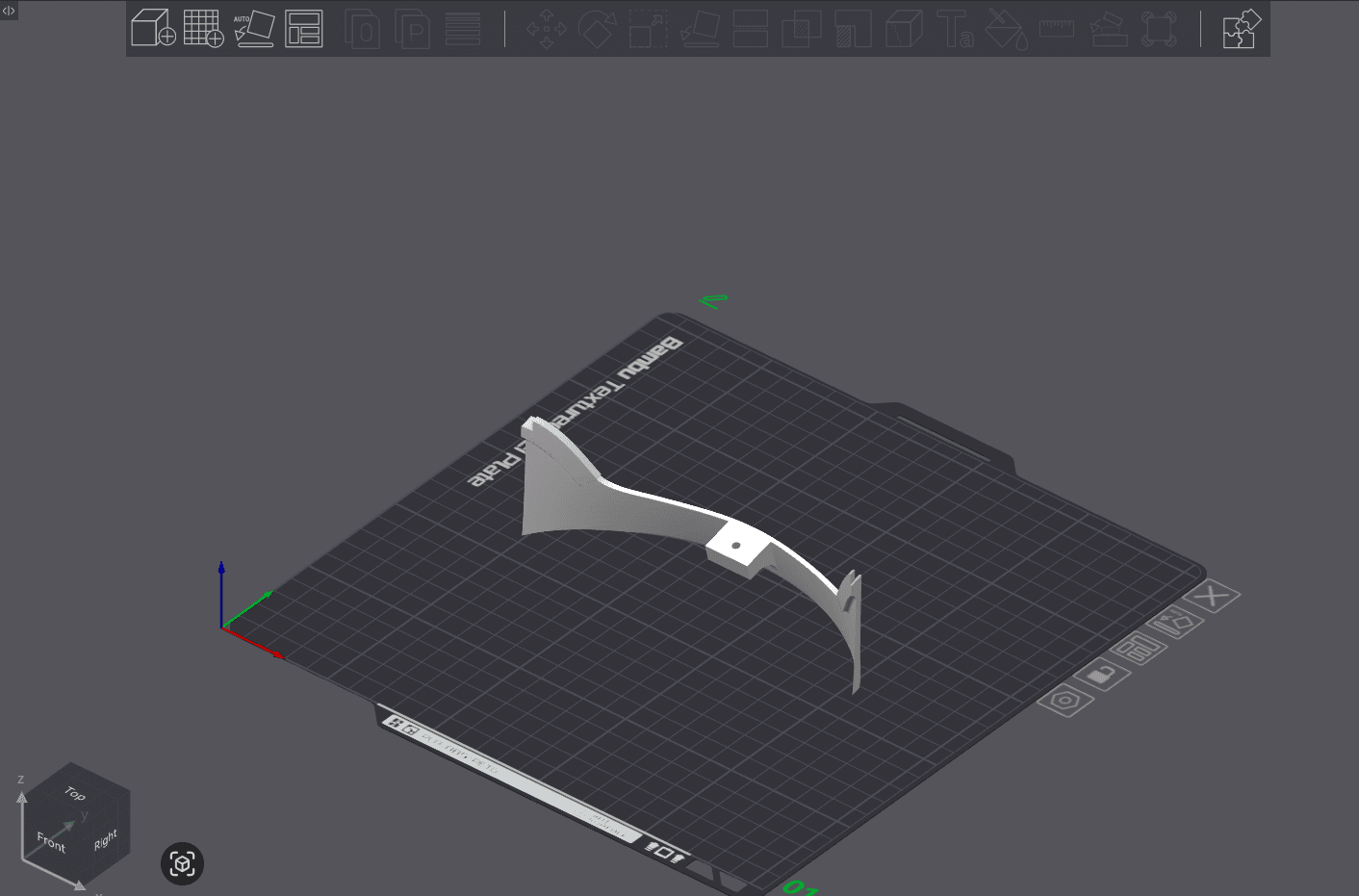

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
3. UpperMainBody

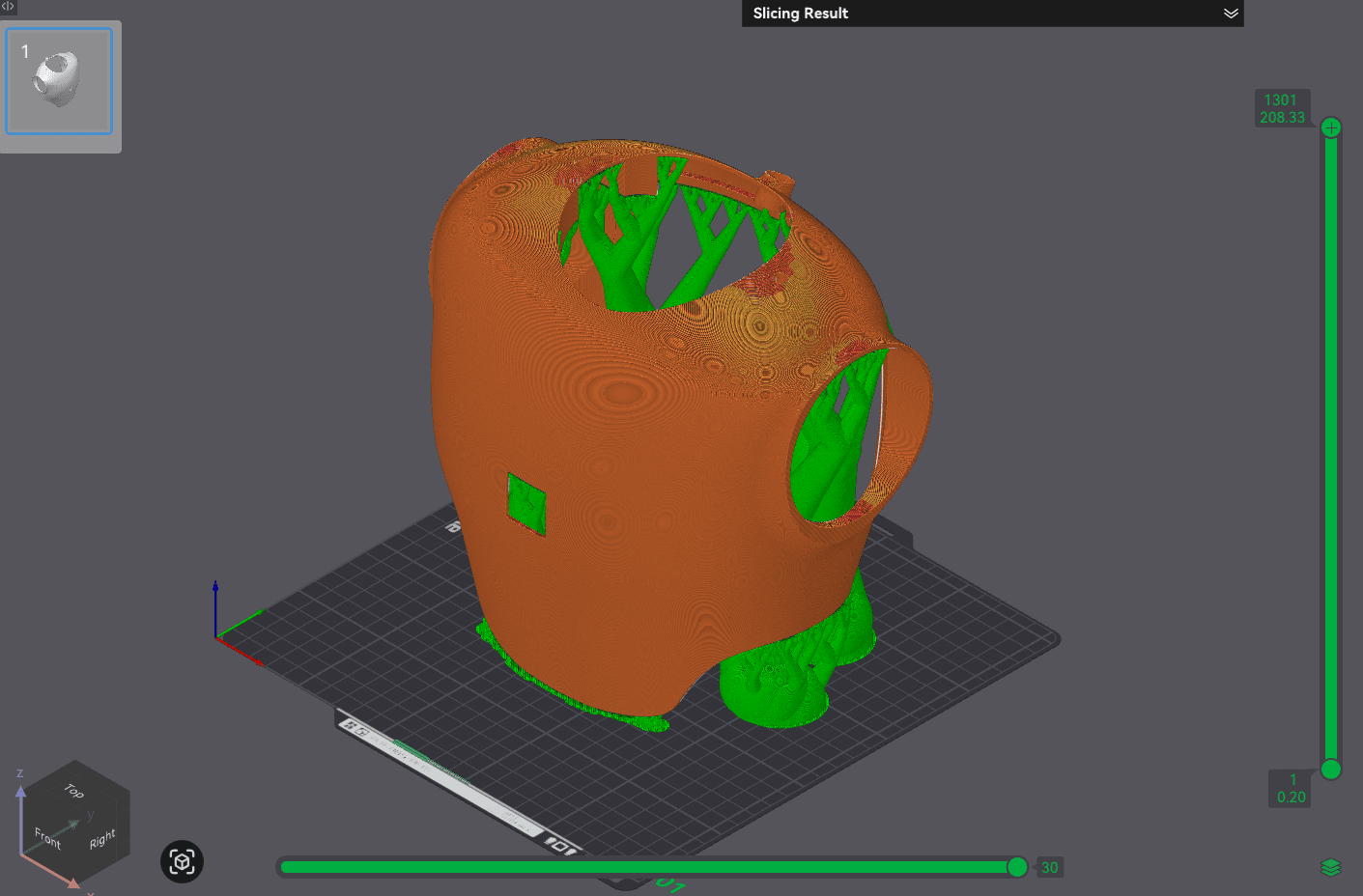

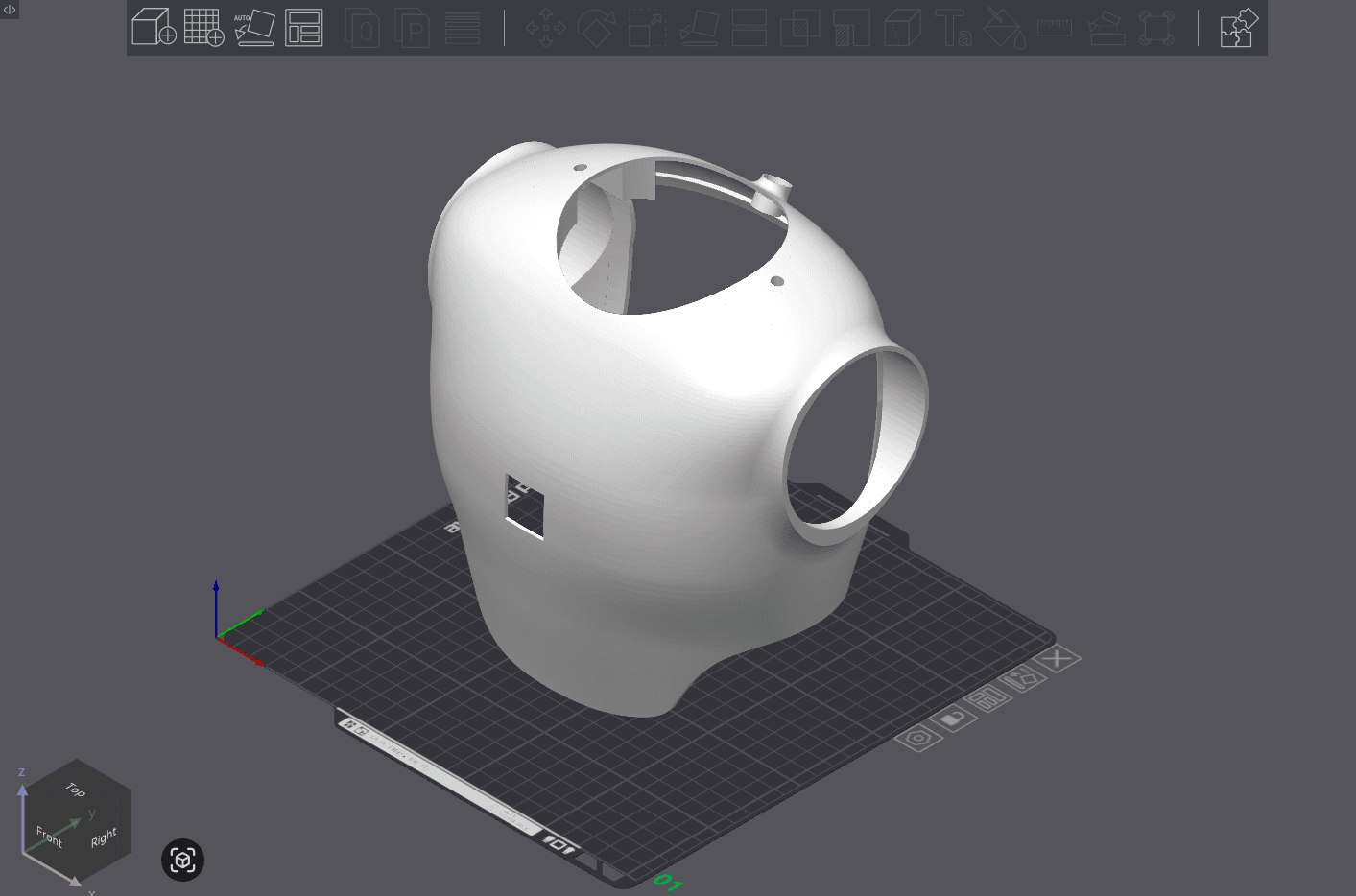

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
4. UpperRearCover

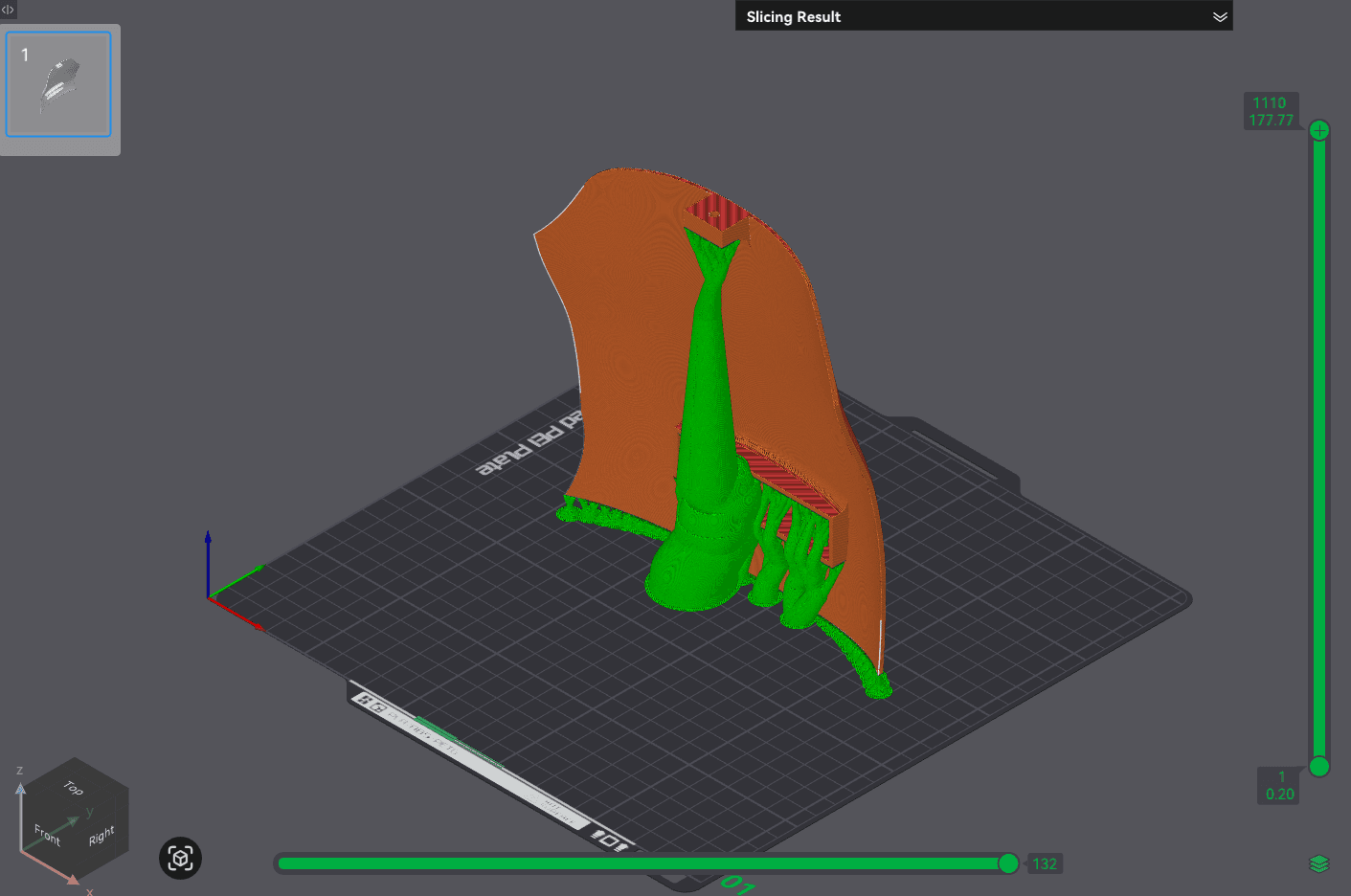

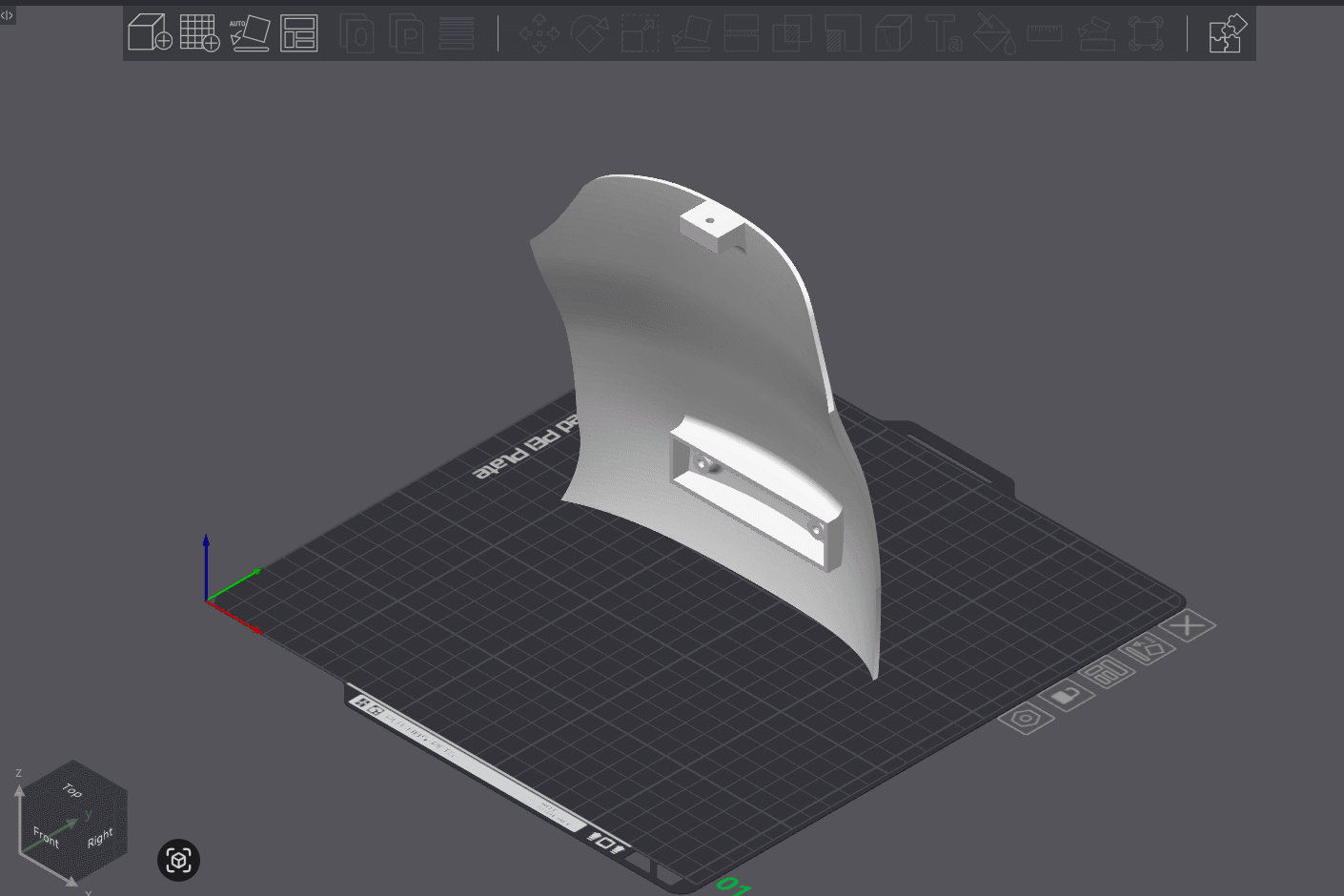

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
5. NeckCover

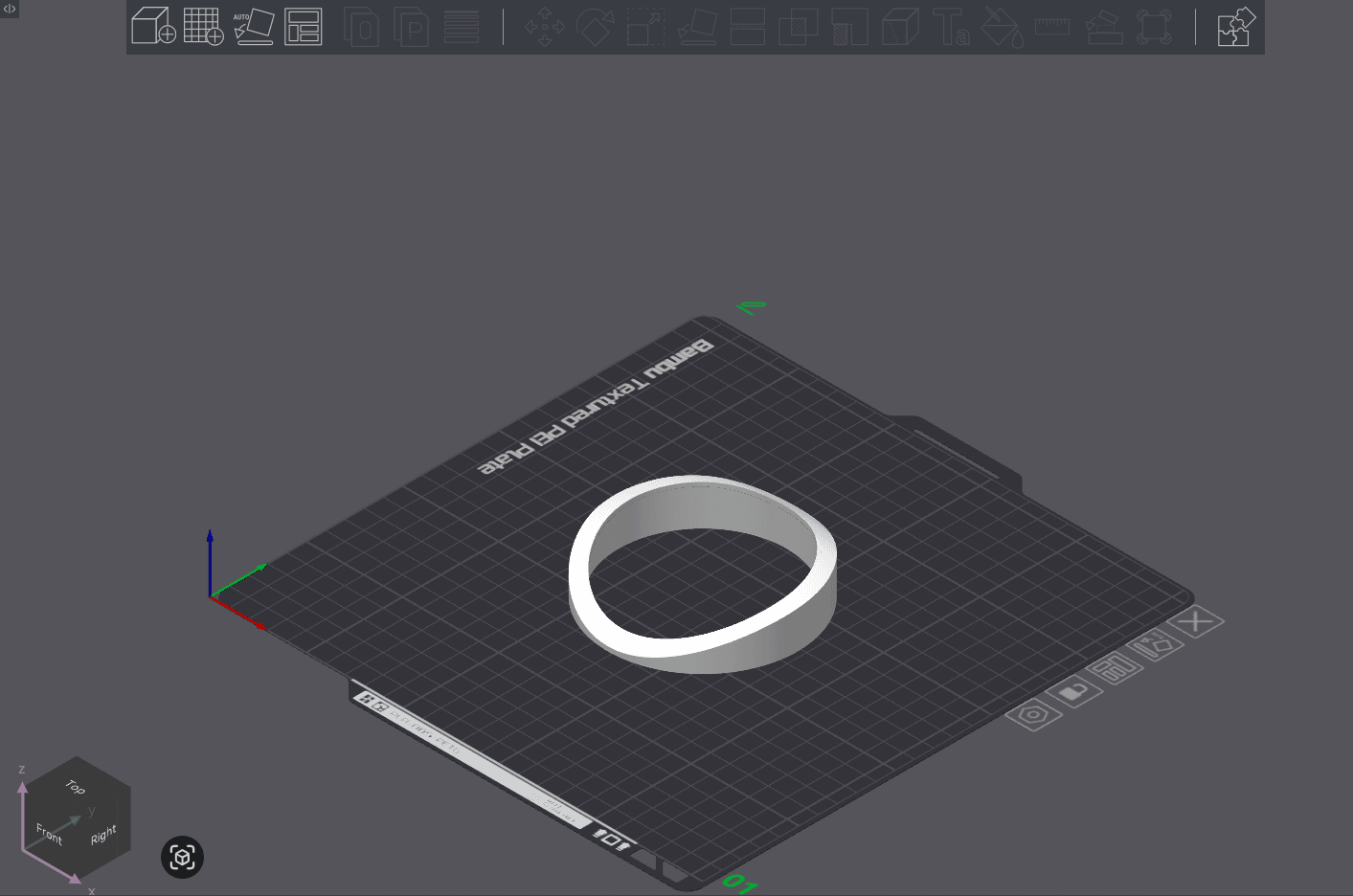

Pre-Sliced View (Raw Model on Build Plate)

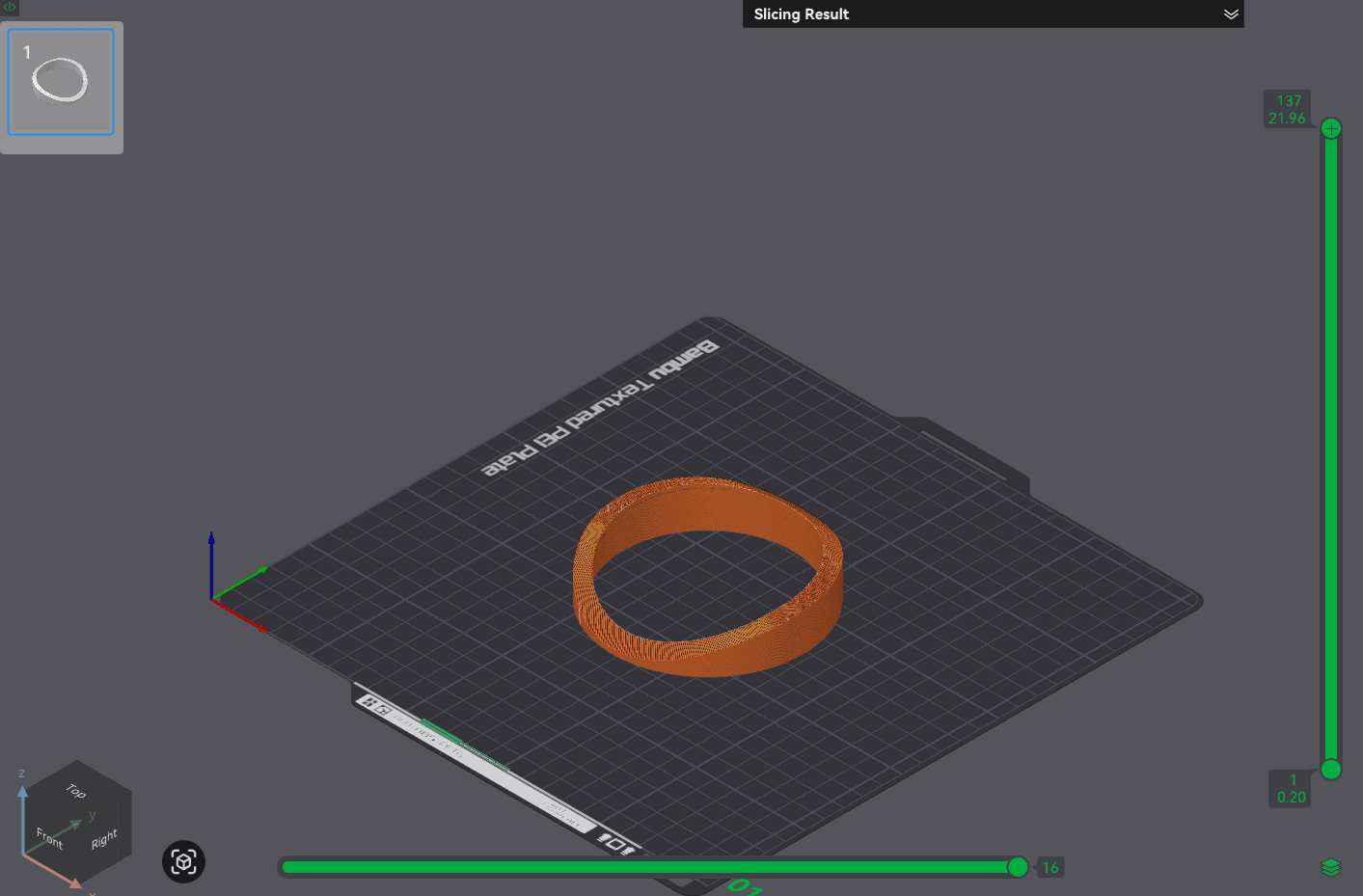

Post-Sliced View (Slicer Preview)
Raft not required.
6. CenterJoint

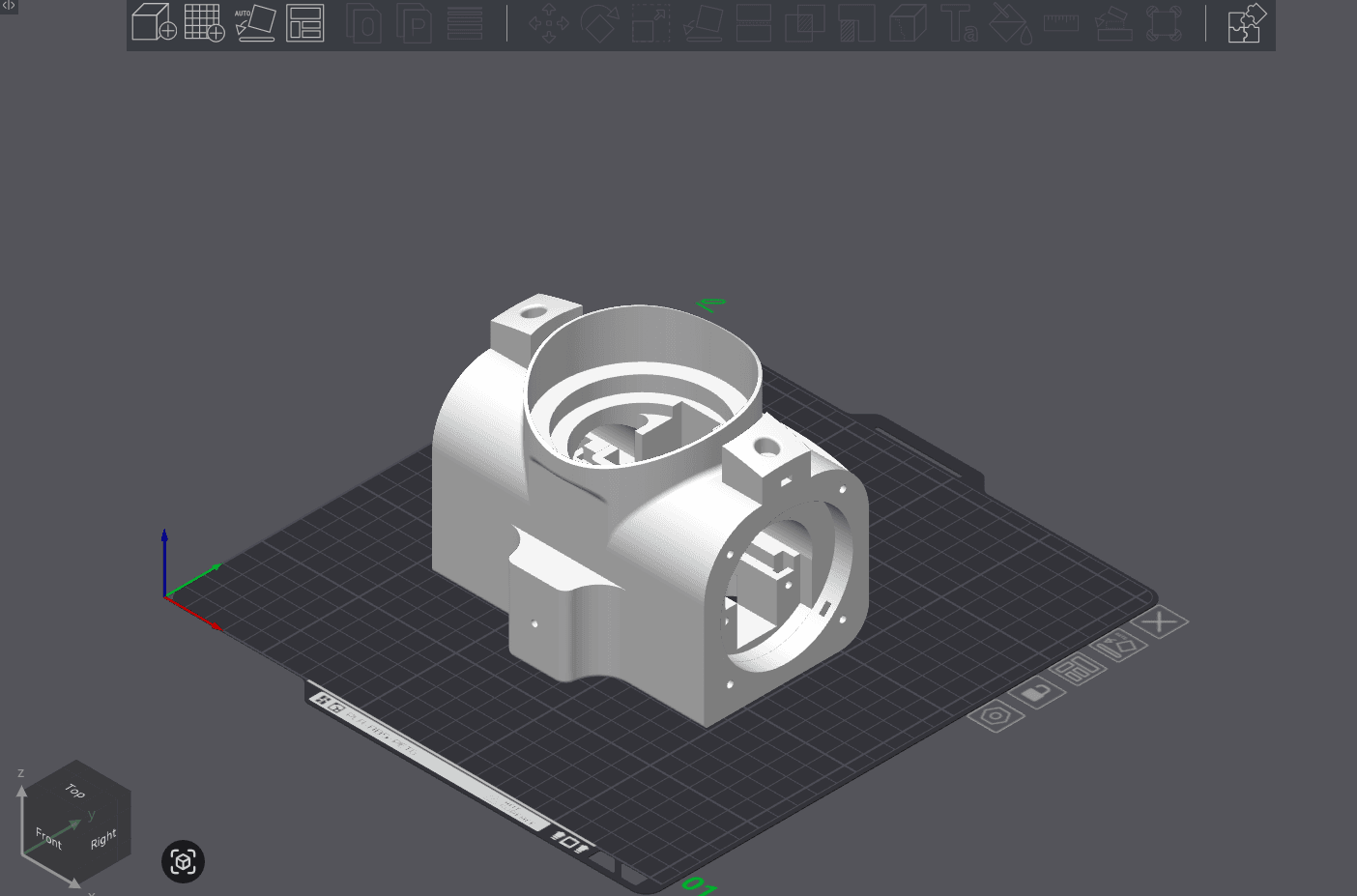

Pre-Sliced View (Raw Model on Build Plate)

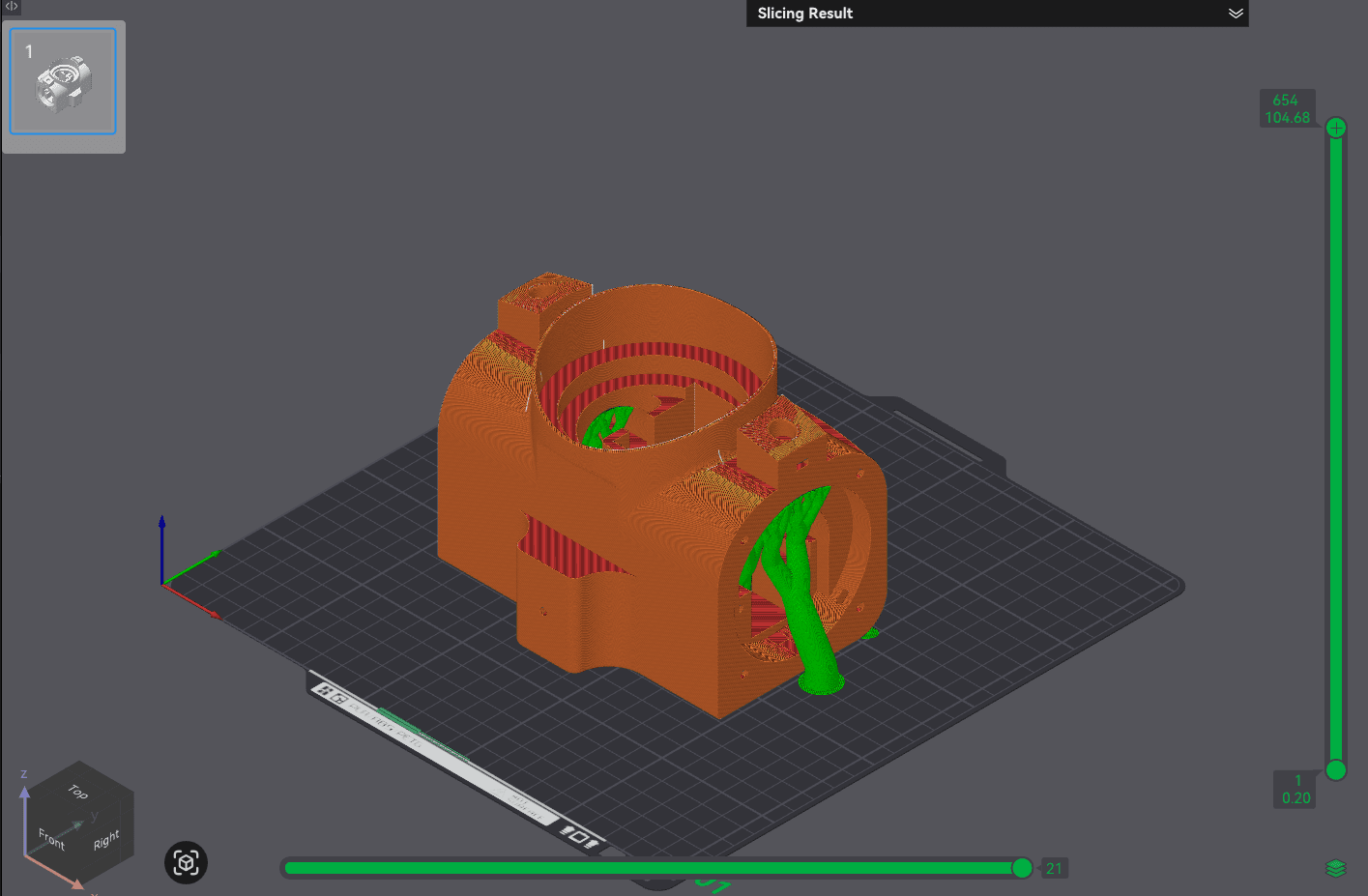

Post-Sliced View (Slicer Preview)
Raft not required.
7. CenterJointServoLeft

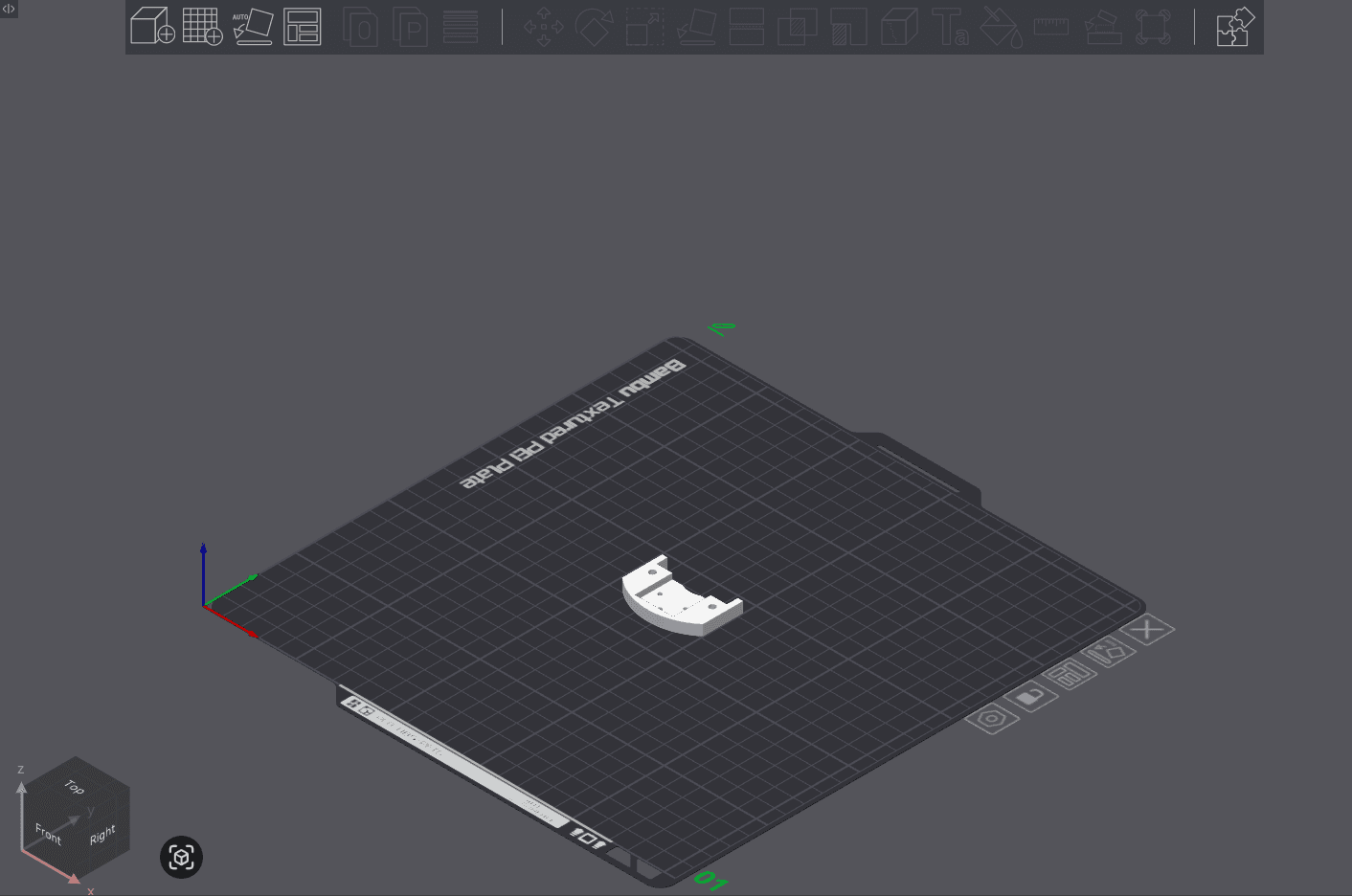

Pre-Sliced View (Raw Model on Build Plate)

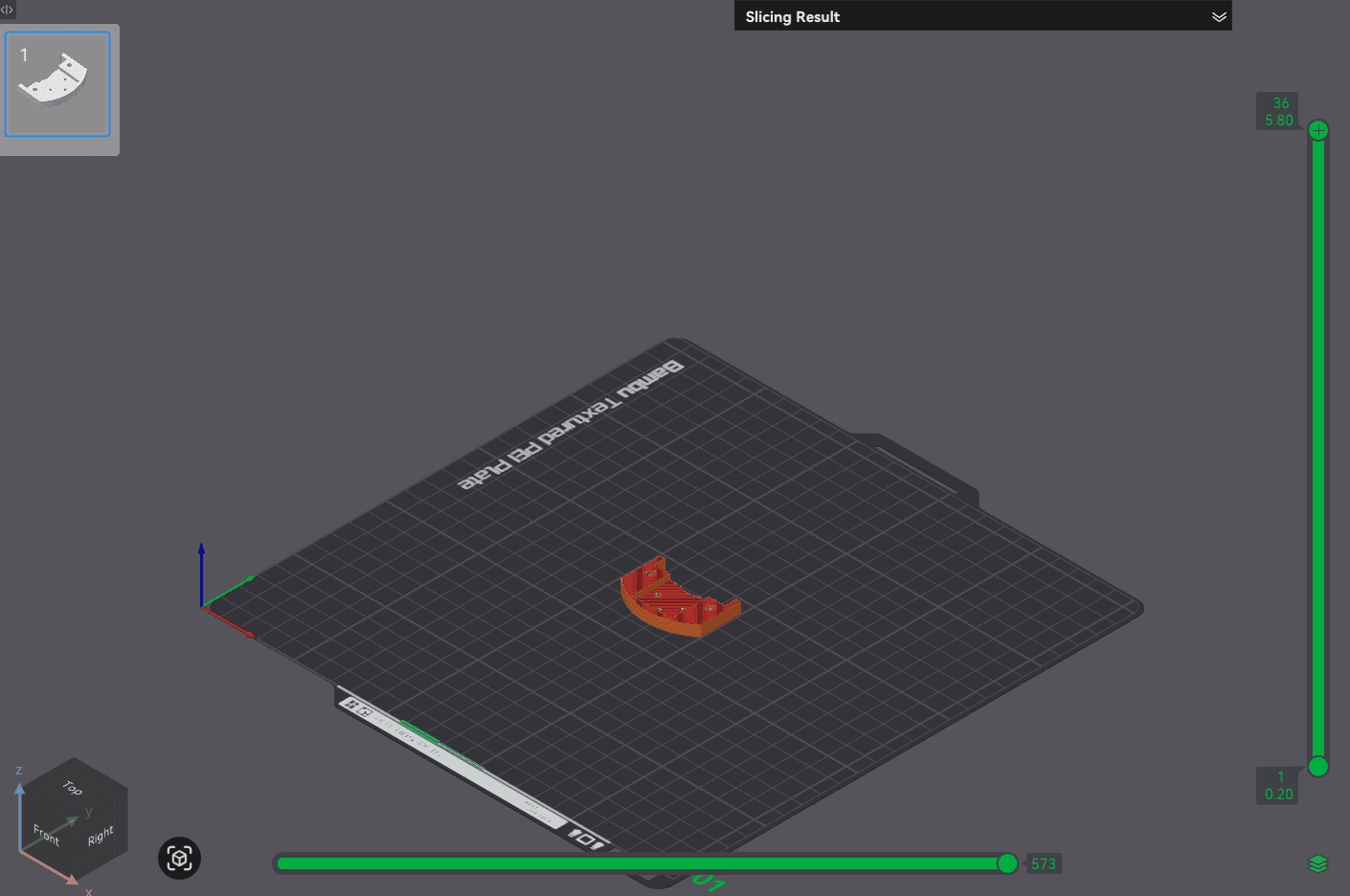

Post-Sliced View (Slicer Preview)
Raft not required.
8. CenterJointServoRight

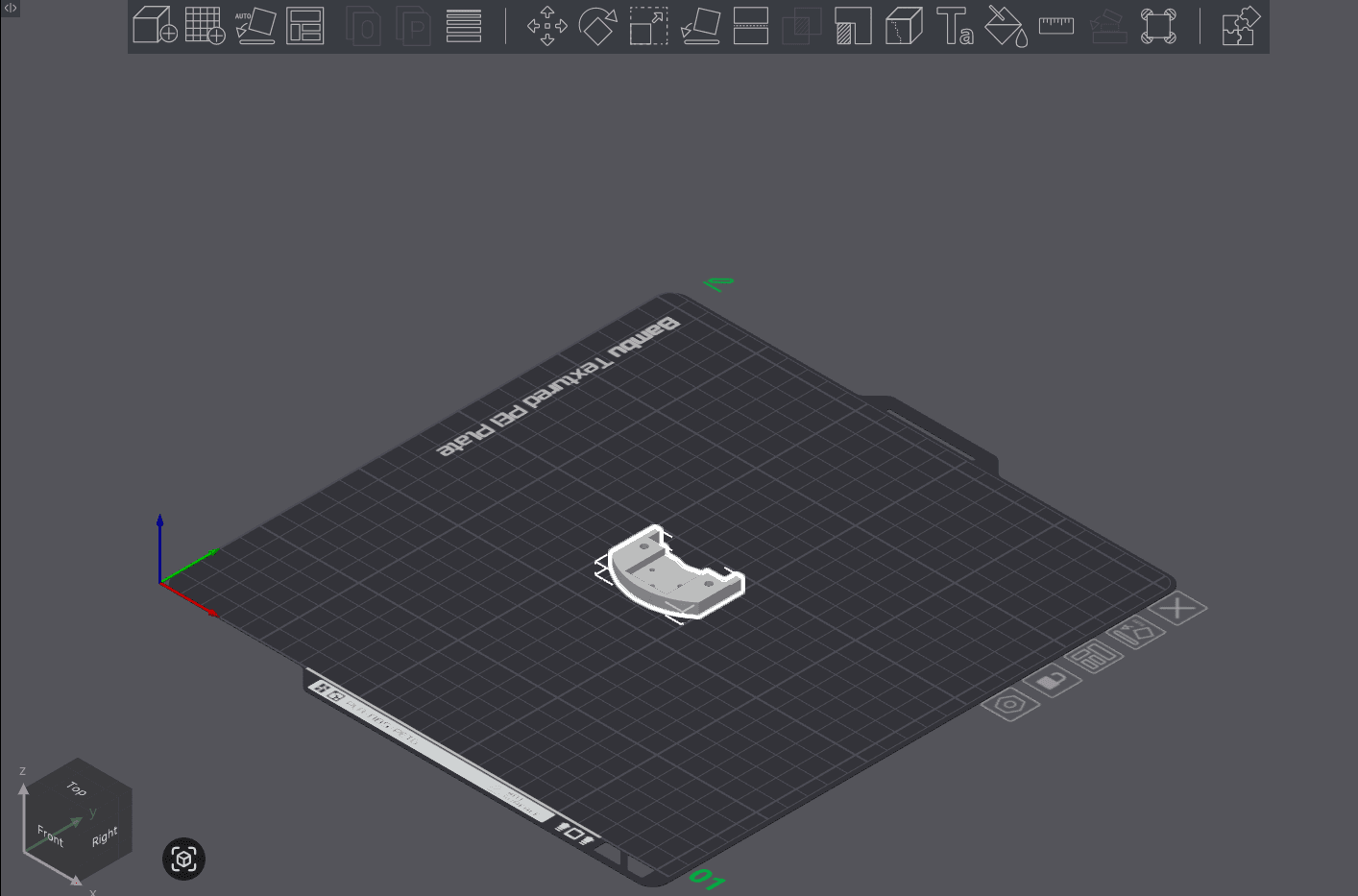

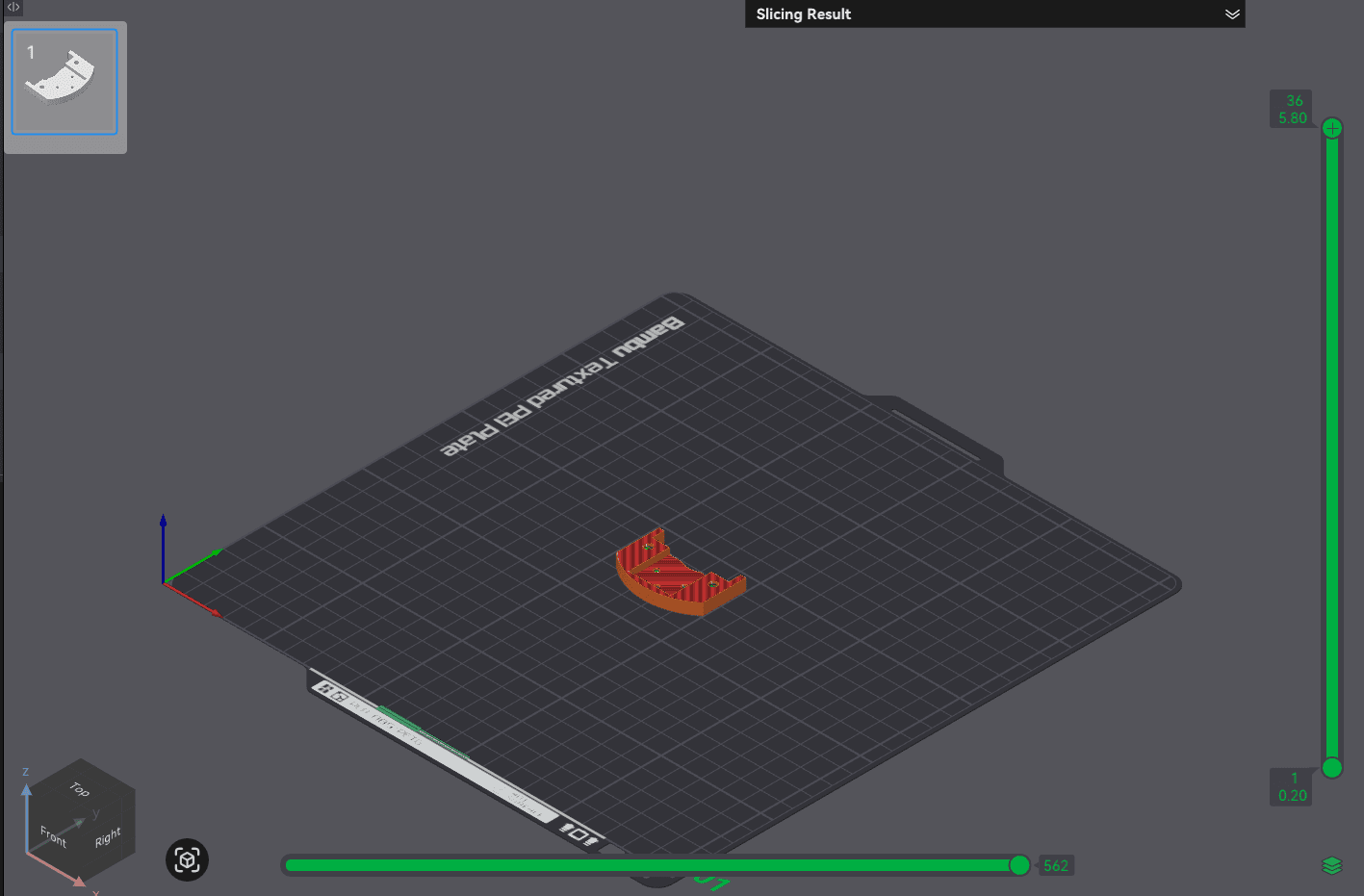

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
9. CenterJointCoverLeft

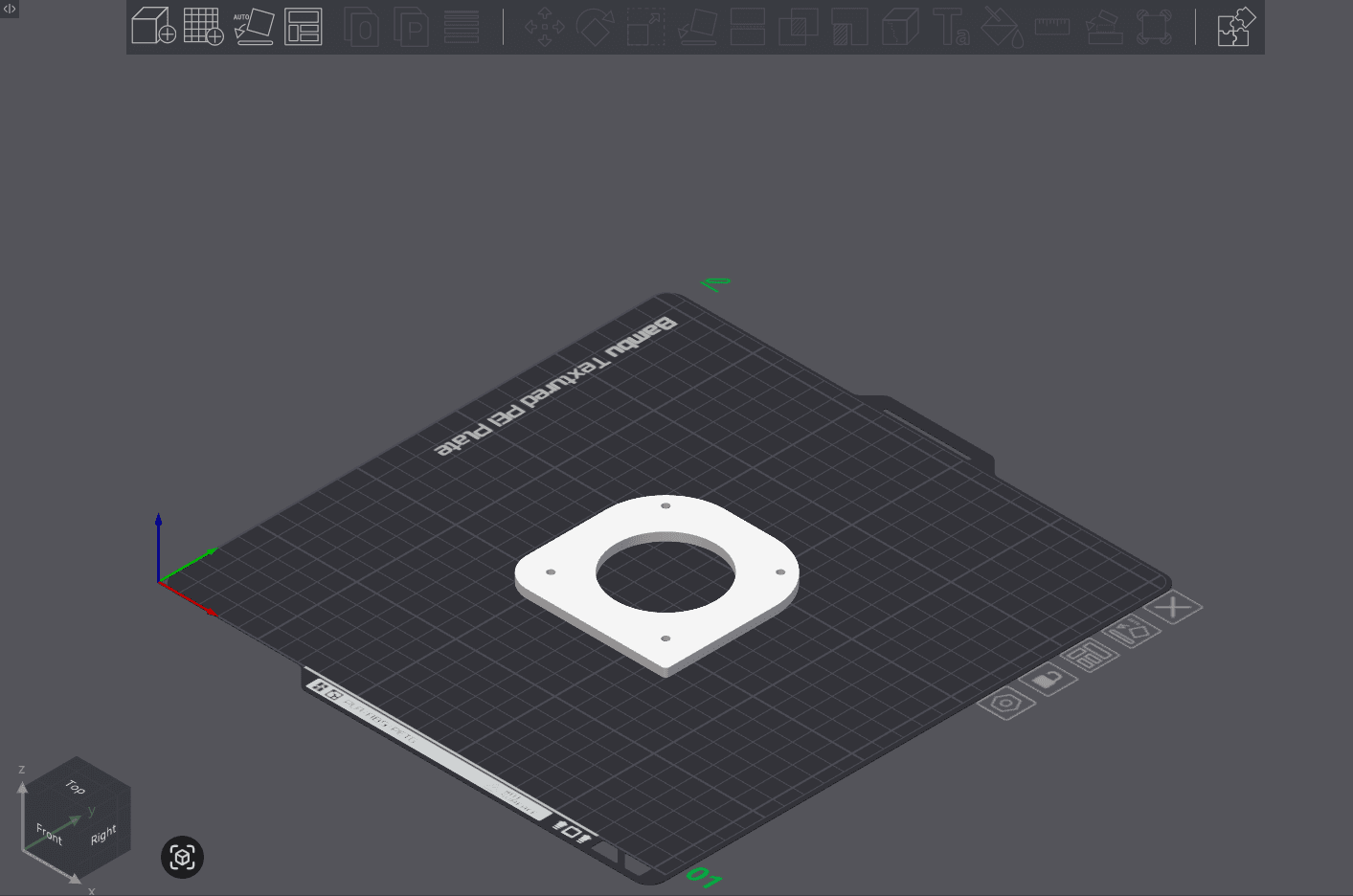

Pre-Sliced View (Raw Model on Build Plate)

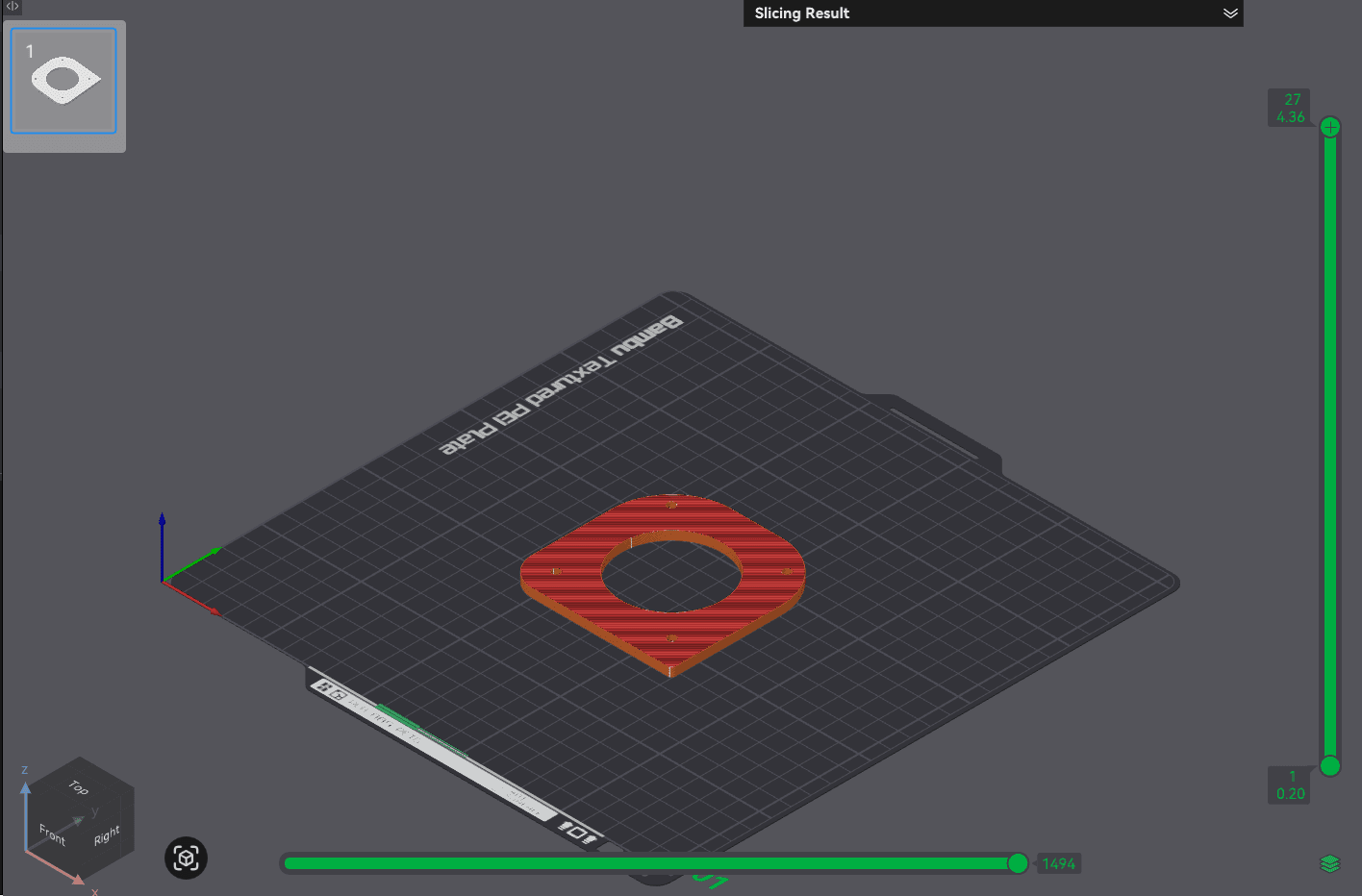

Post-Sliced View (Slicer Preview)
Raft not required.
10. CenterJointCoverRight

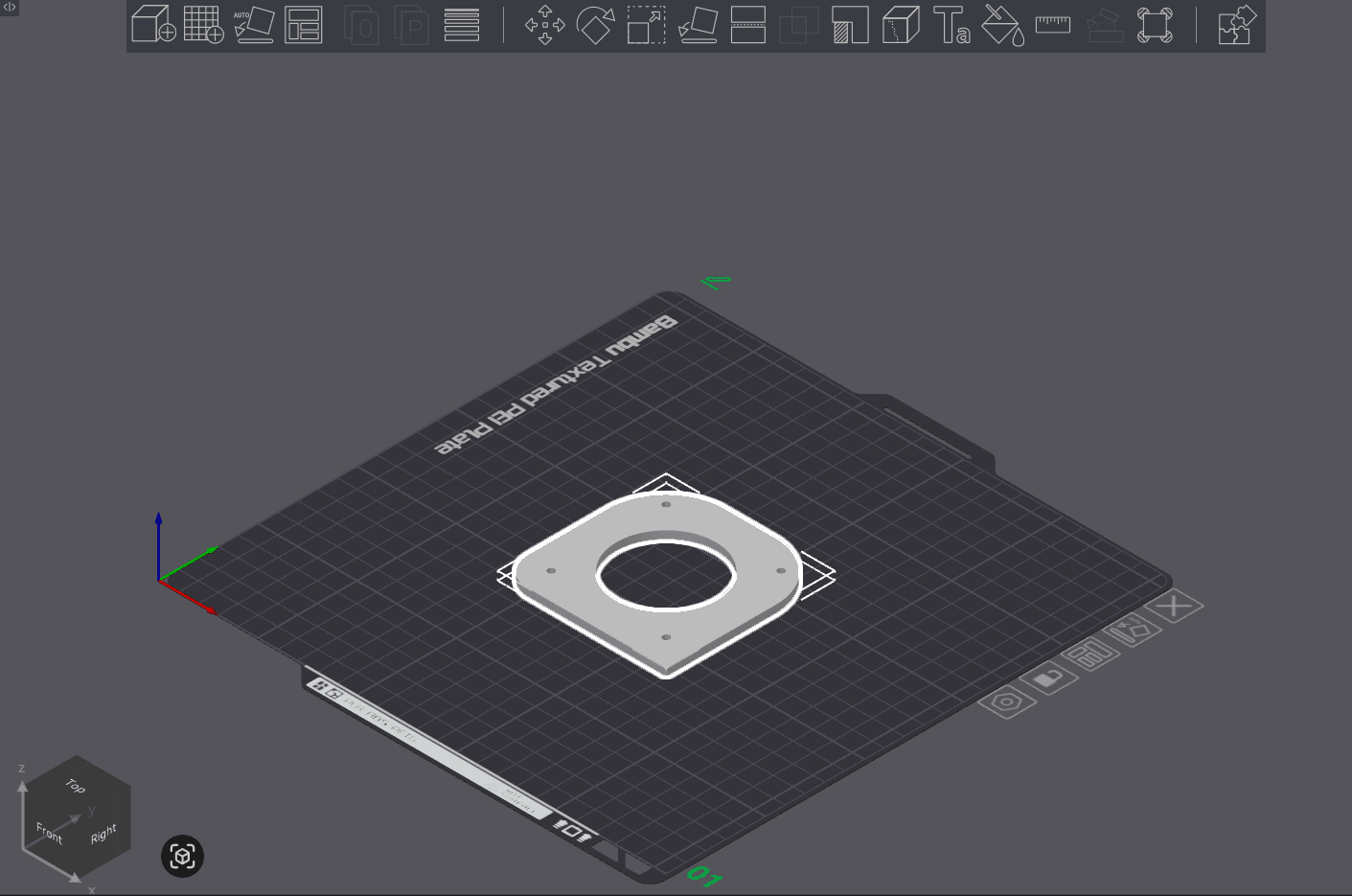

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
11. ServoClamp

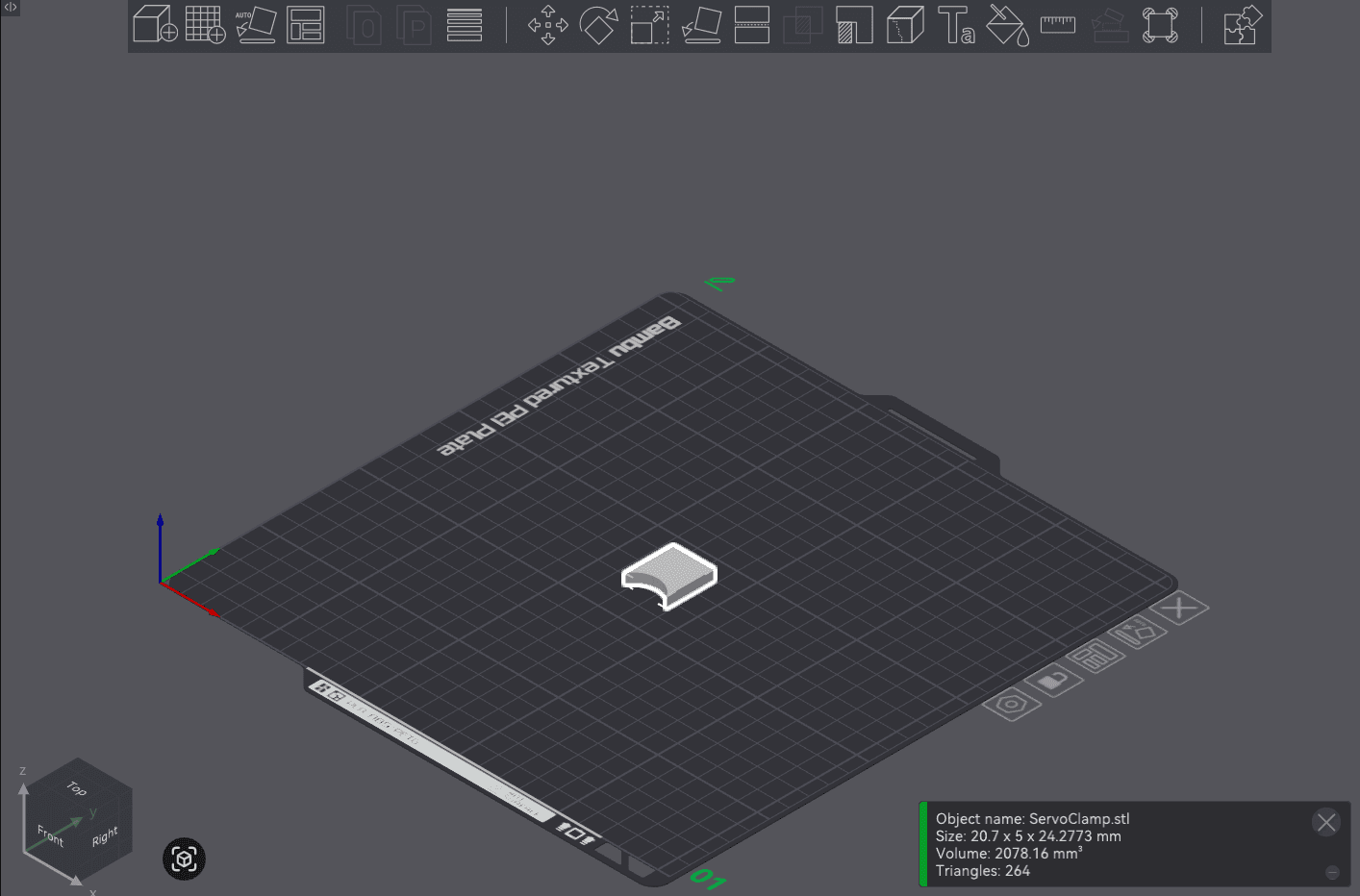

Pre-Sliced View (Raw Model on Build Plate)

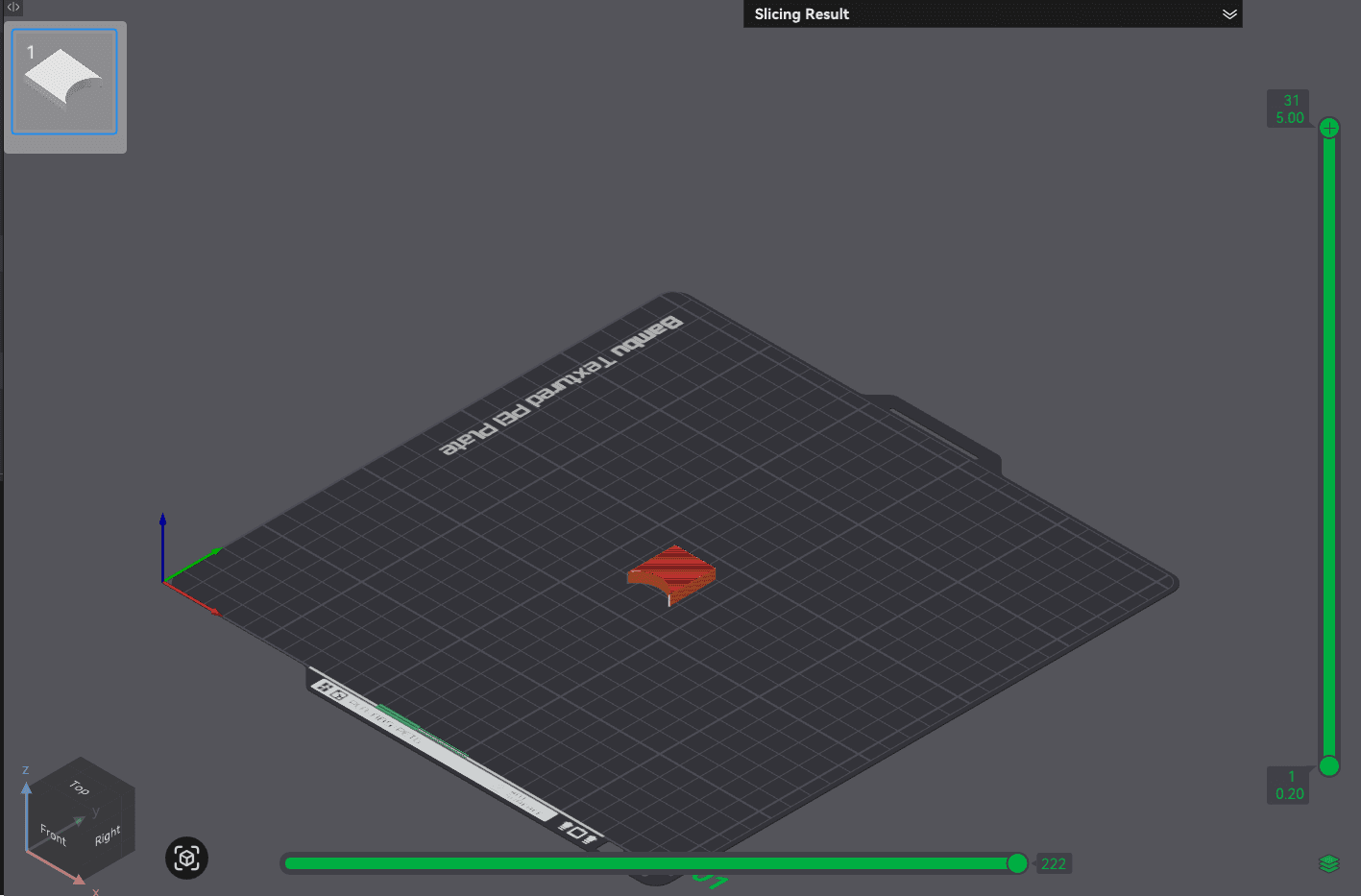

Post-Sliced View (Slicer Preview)
Raft not required.
12. PhoneMountJoint

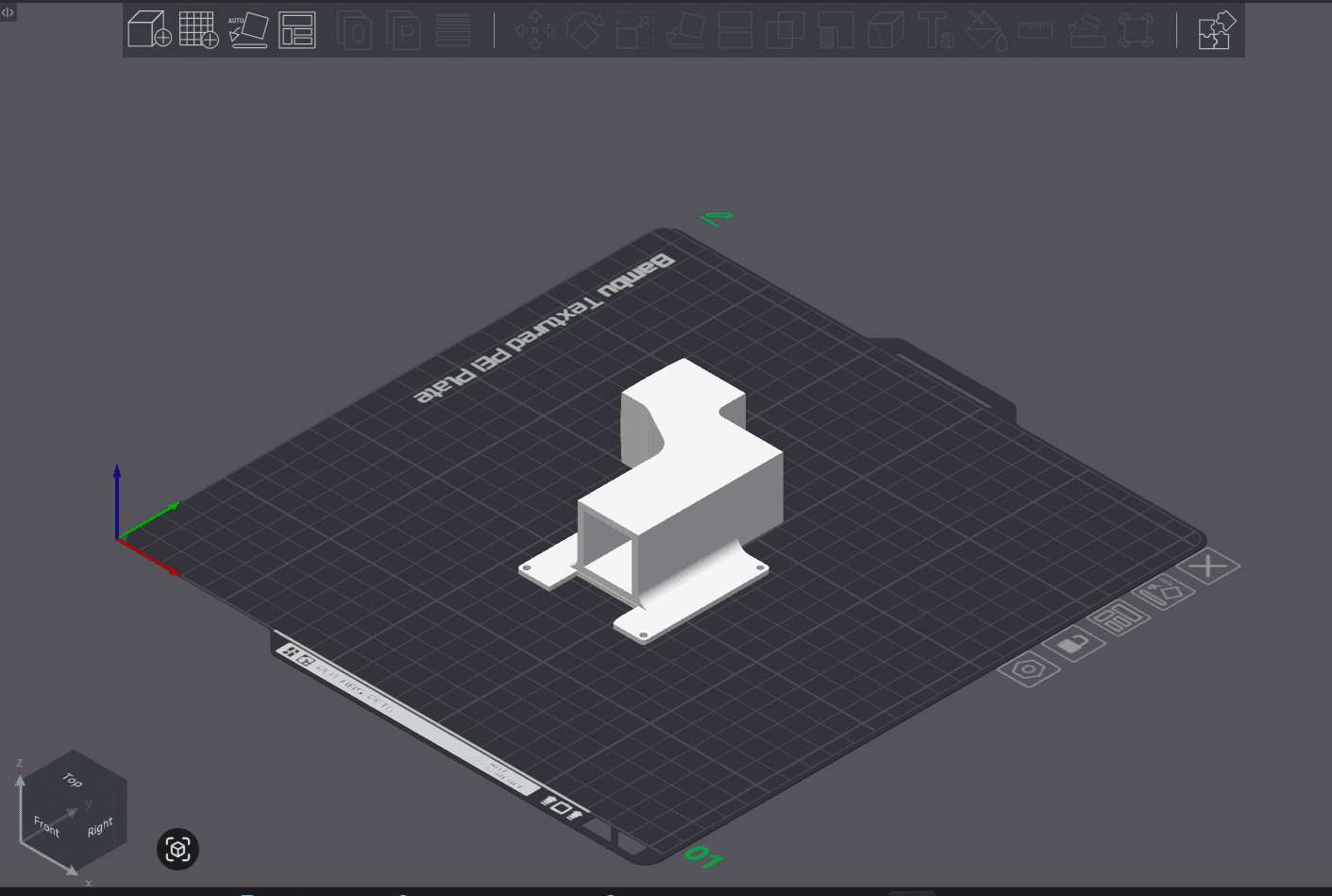

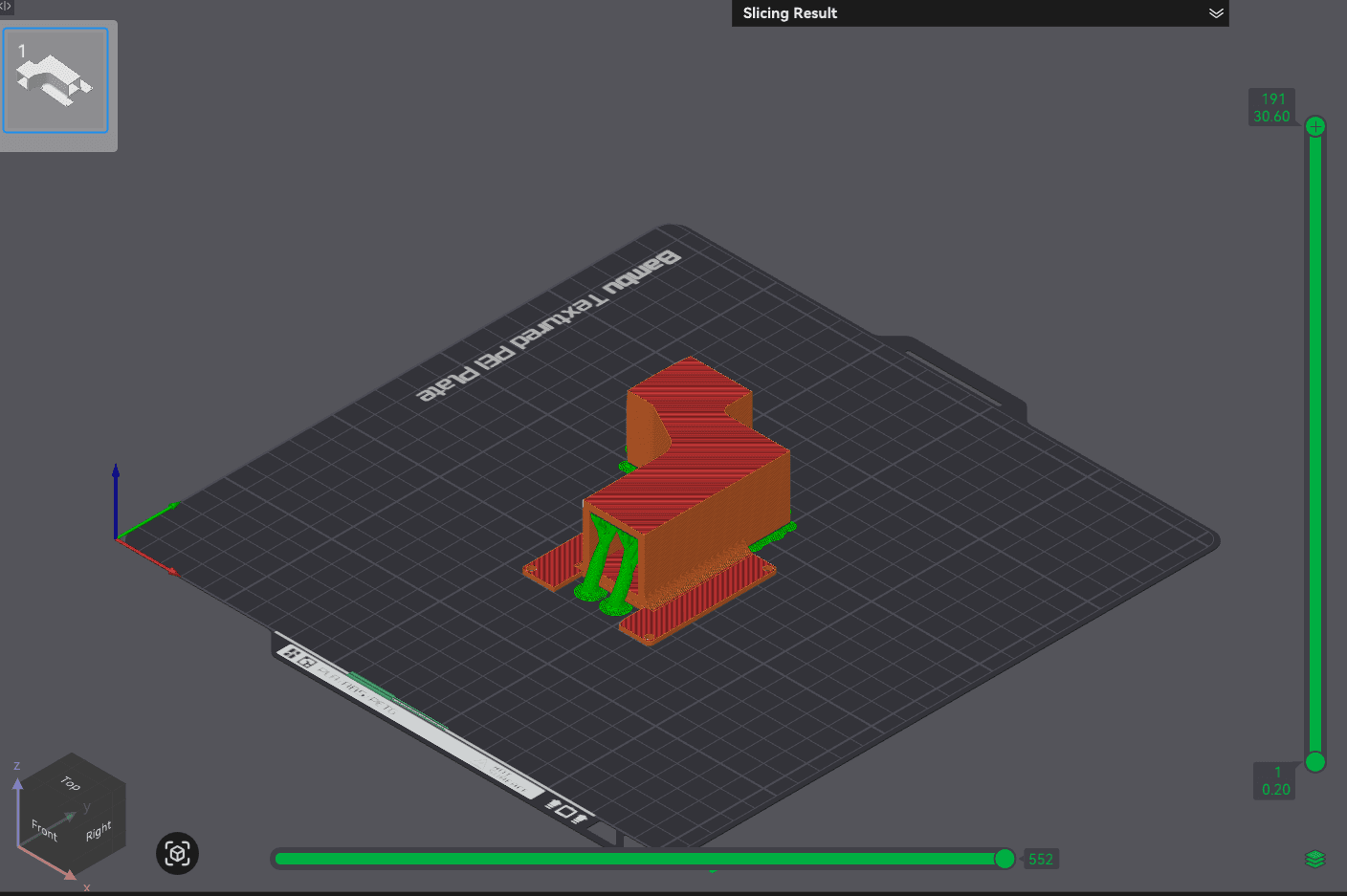

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
13. BodyCenterJoint

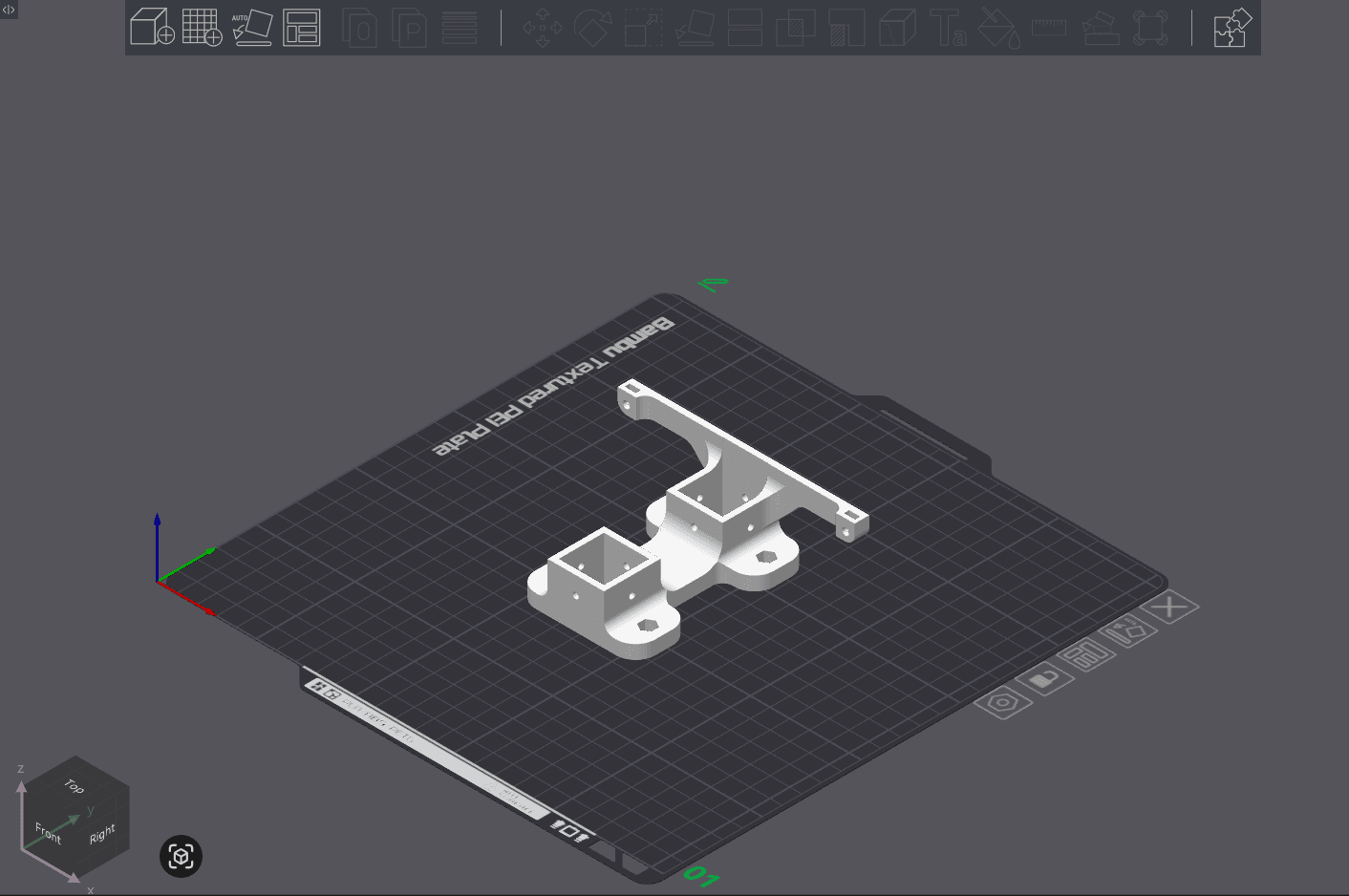

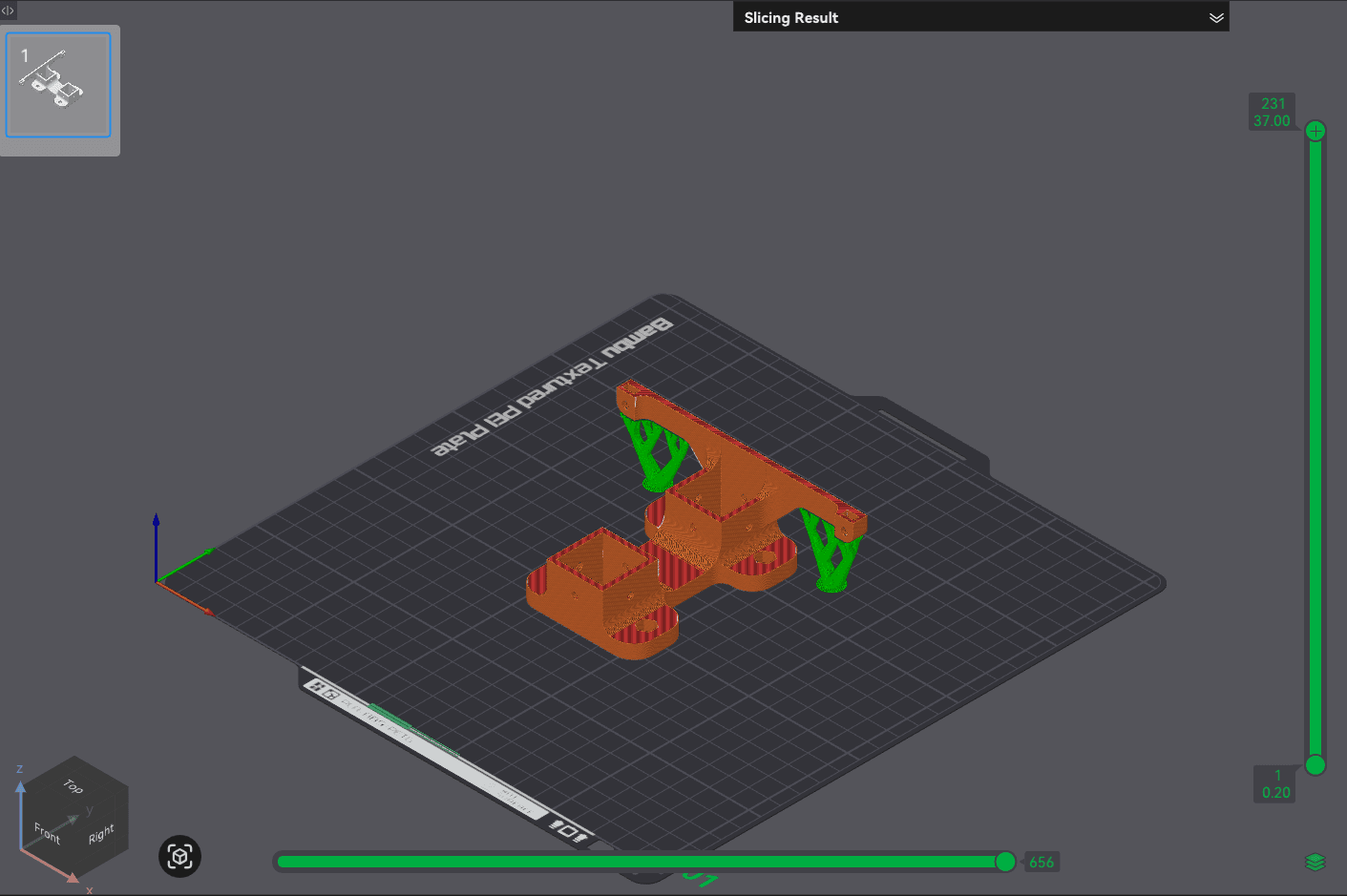

Pre-Sliced View (Raw Model on Build Plate)
Post-Sliced View (Slicer Preview)
Raft not required.
14. NeckJoint

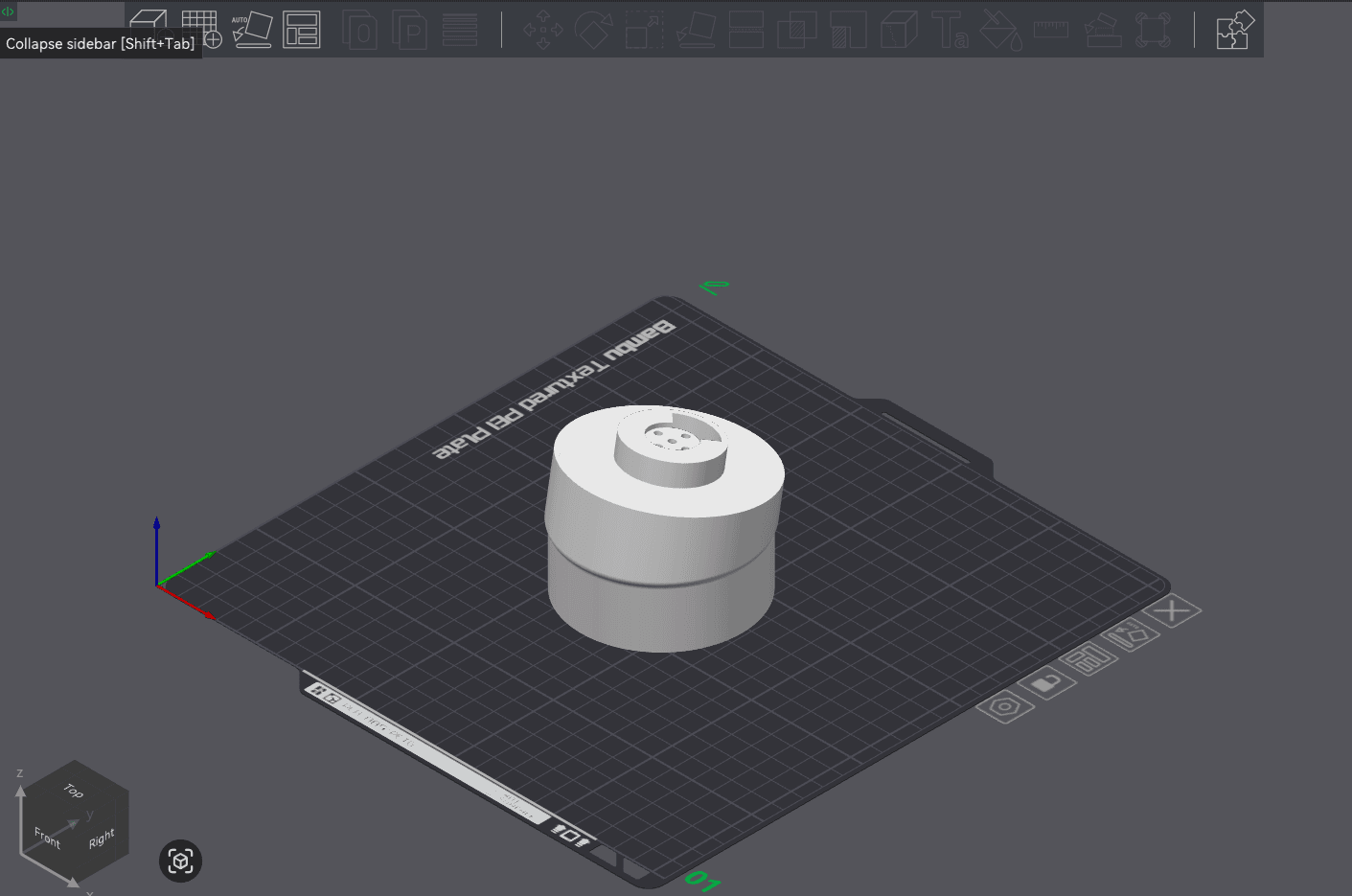

Pre-Sliced View (Raw Model on Build Plate)

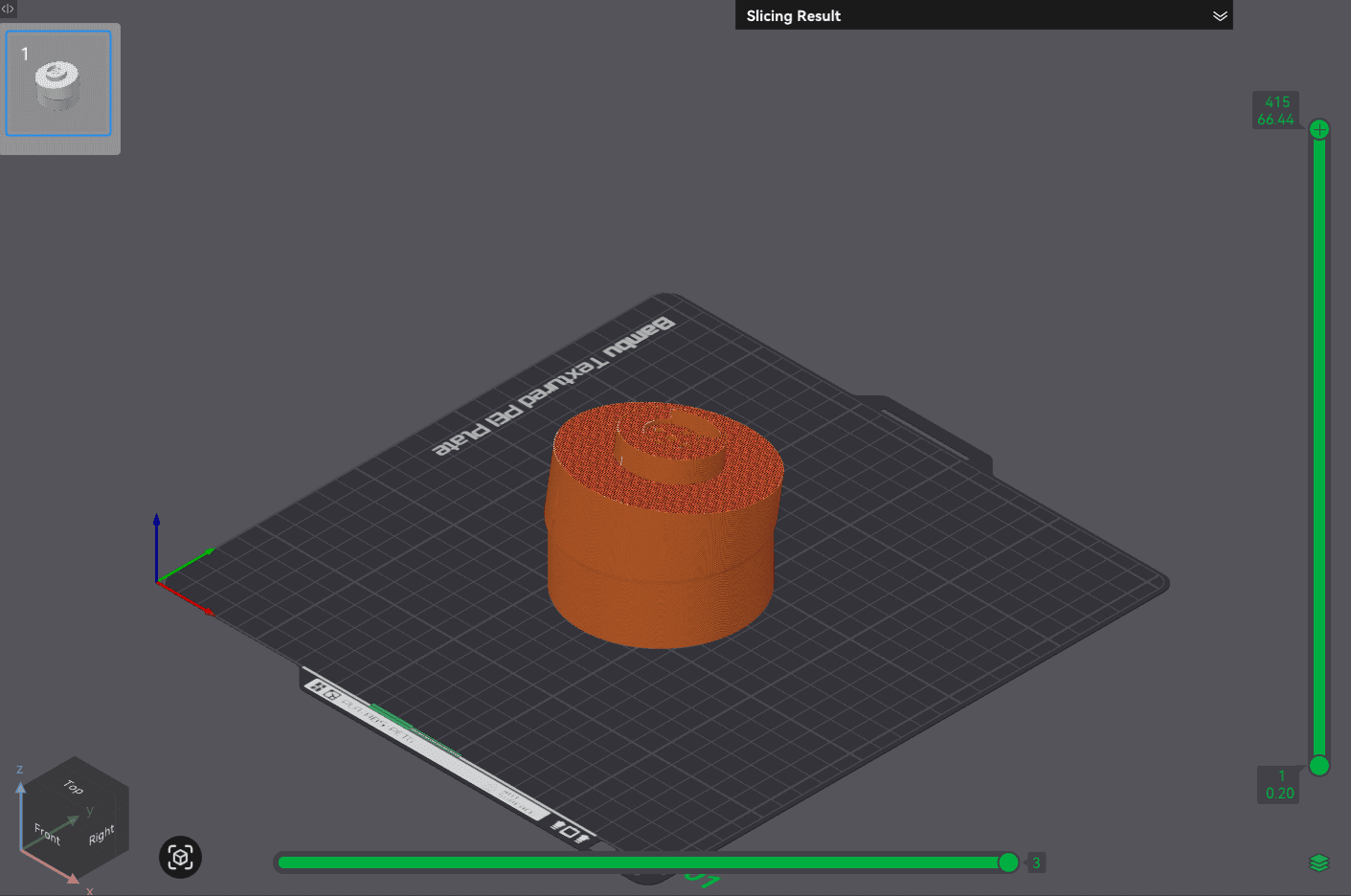

Post-Sliced View (Slicer Preview)
Raft not required.
15. LogoMount

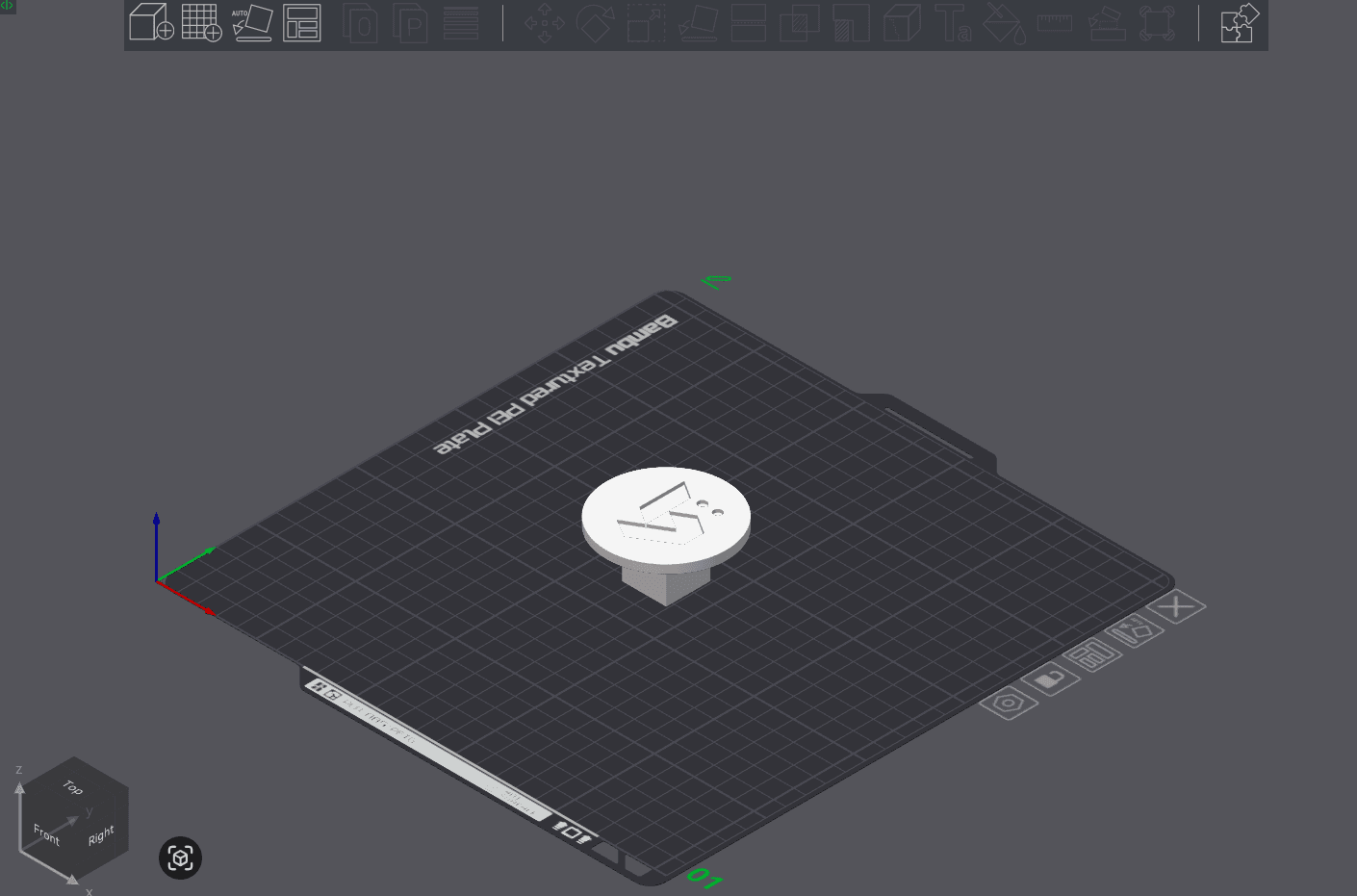

Pre-Sliced View (Raw Model on Build Plate)

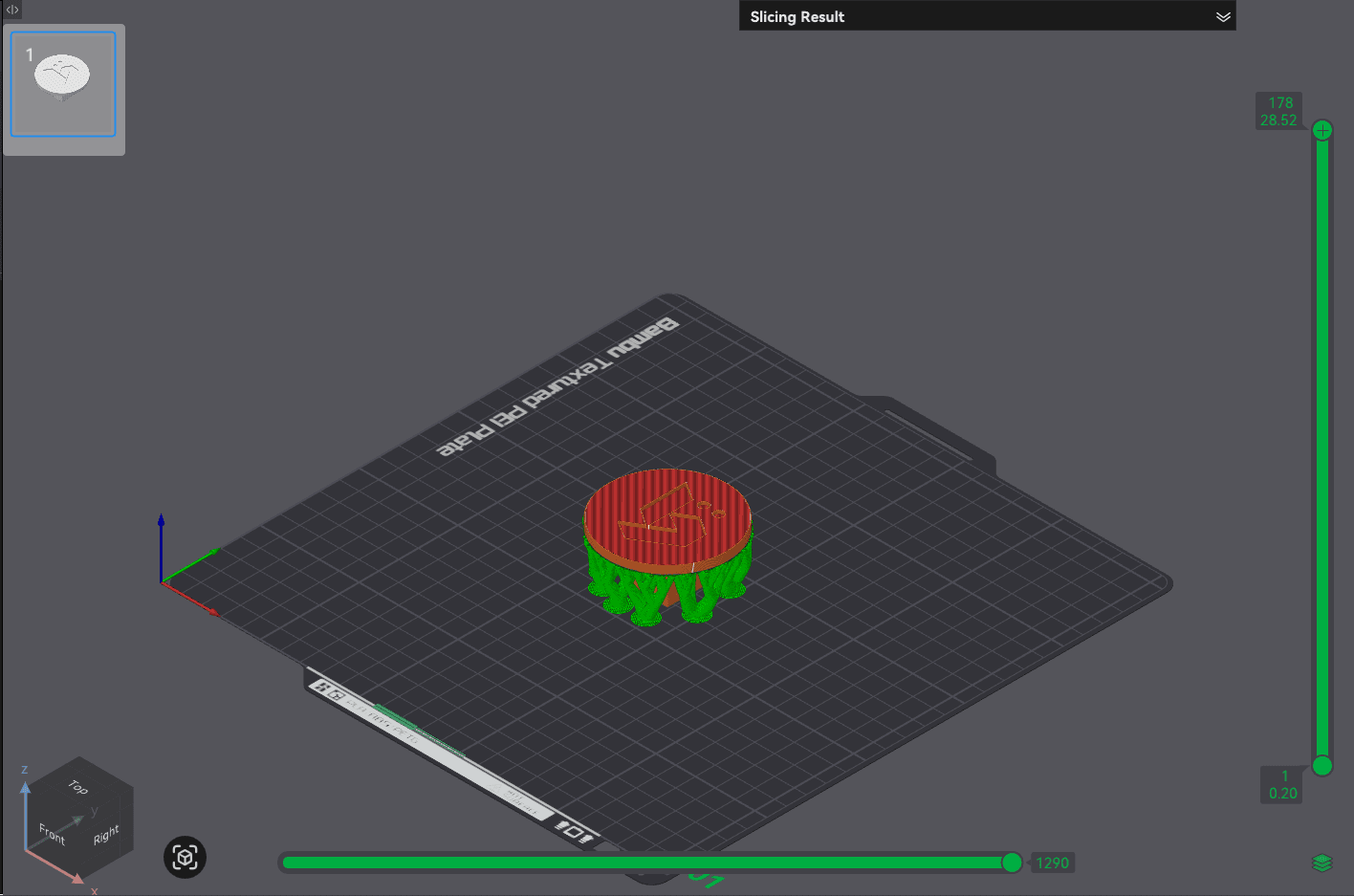

Post-Sliced View (Slicer Preview)
Raft not required.
16. BonicLogo

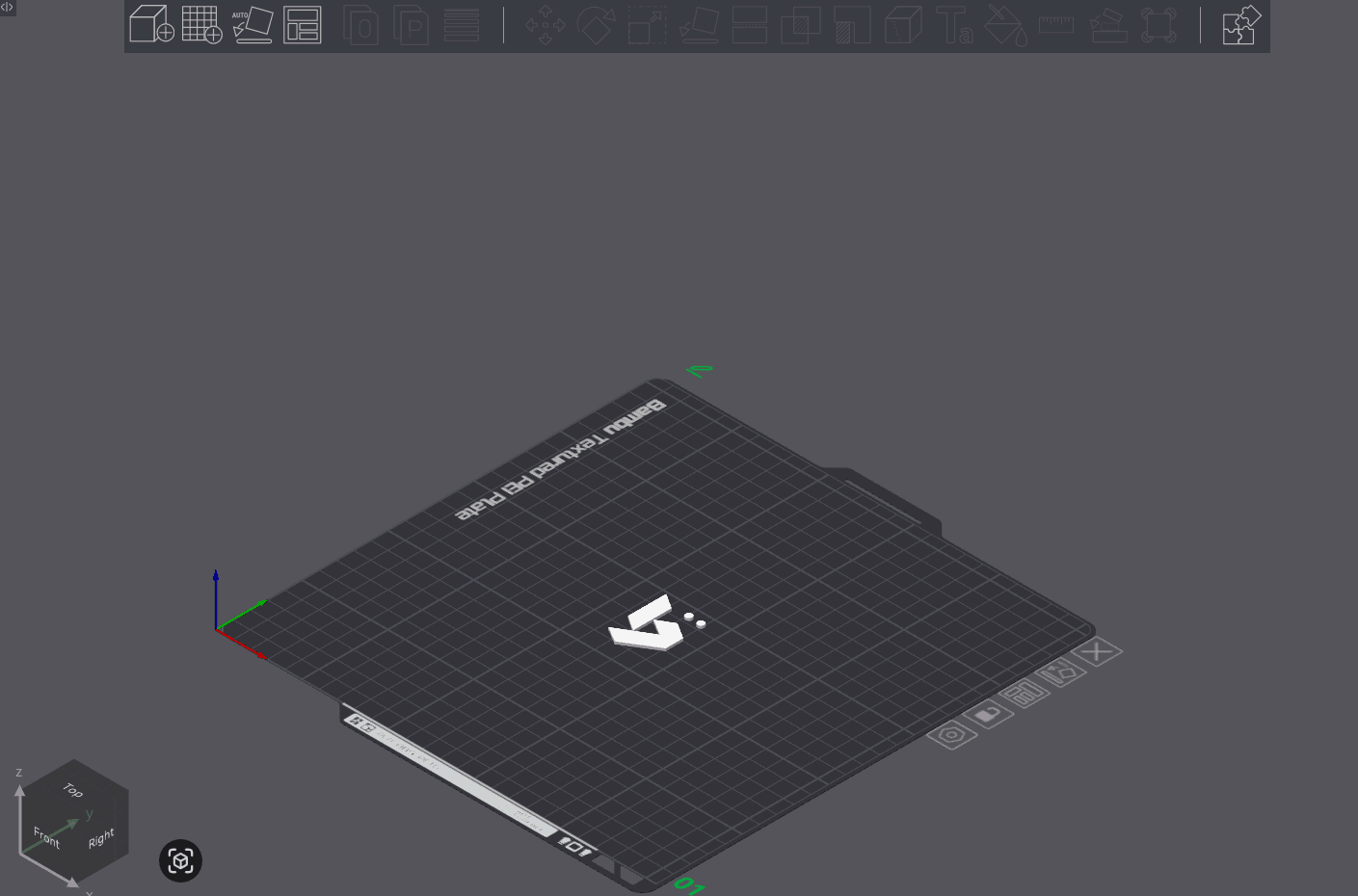

Pre-Sliced View (Raw Model on Build Plate)

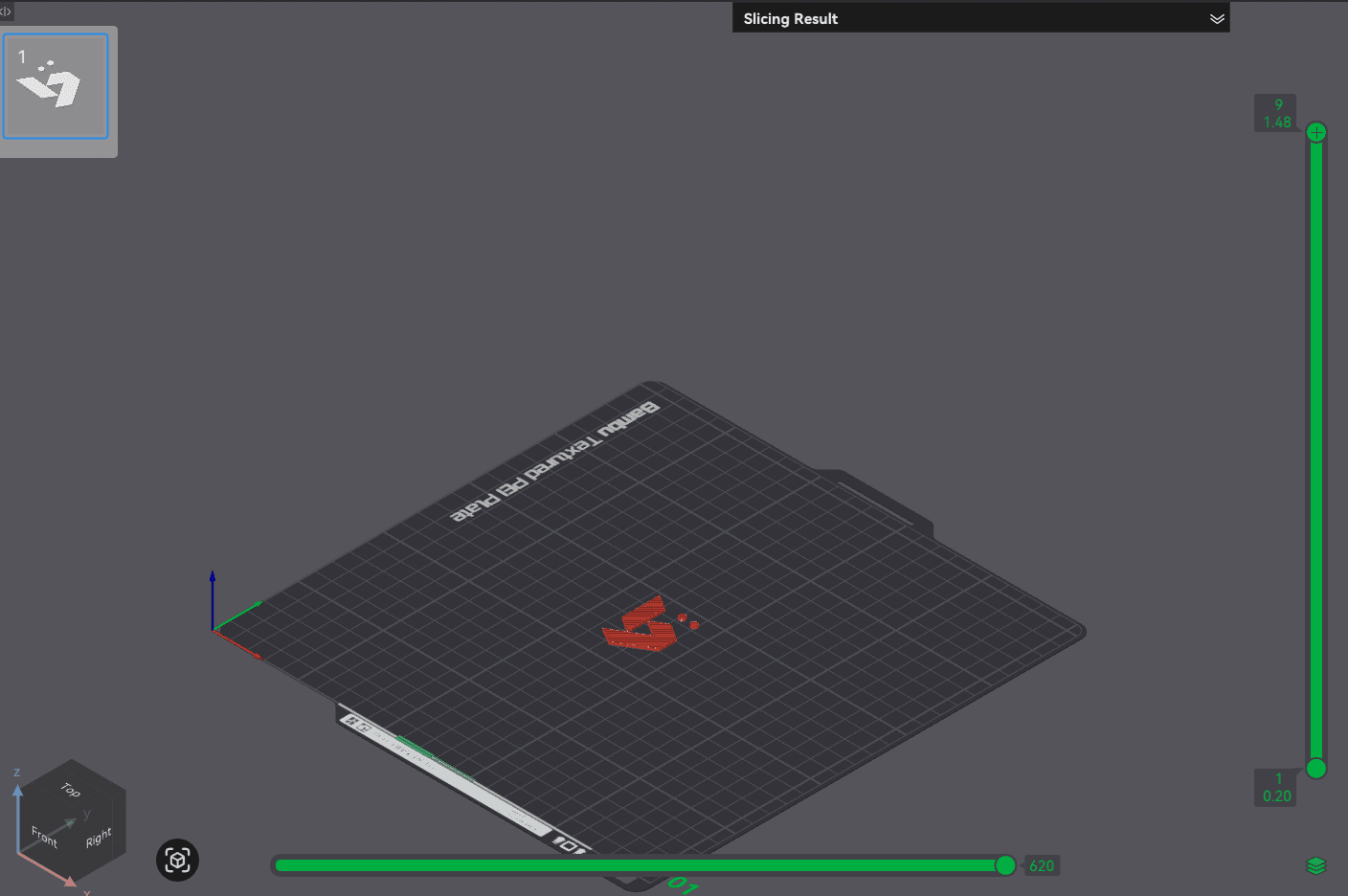

Post-Sliced View (Slicer Preview)
Raft not required.
