Left Hand Parts
This document defines the validated print orientation, slicing view, and raft requirements for all BonicBot A2 hand and arm components for the left side.
1. ShoulderJointLeft

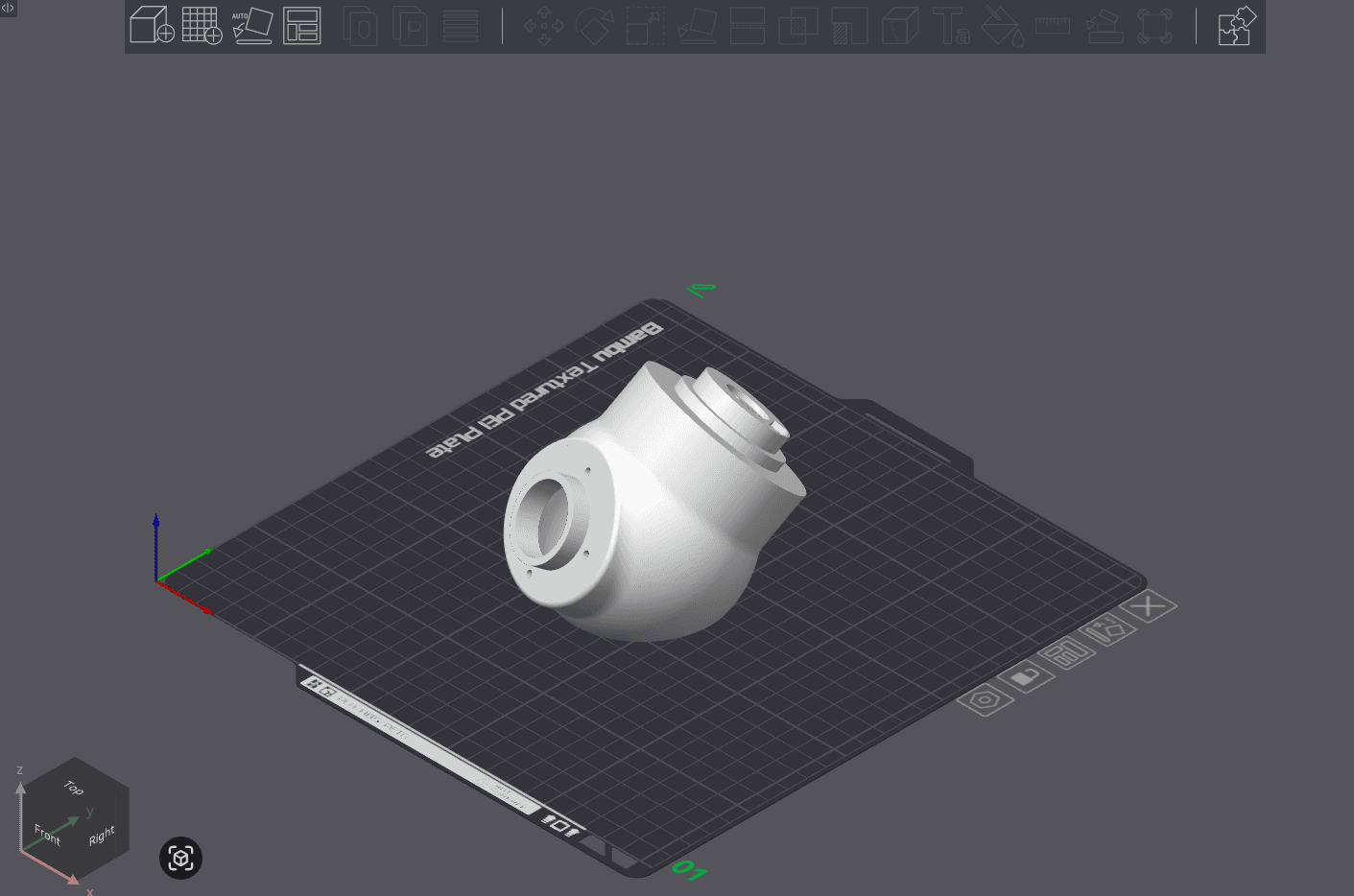

Pre-Sliced View (Raw Model on Build Plate)

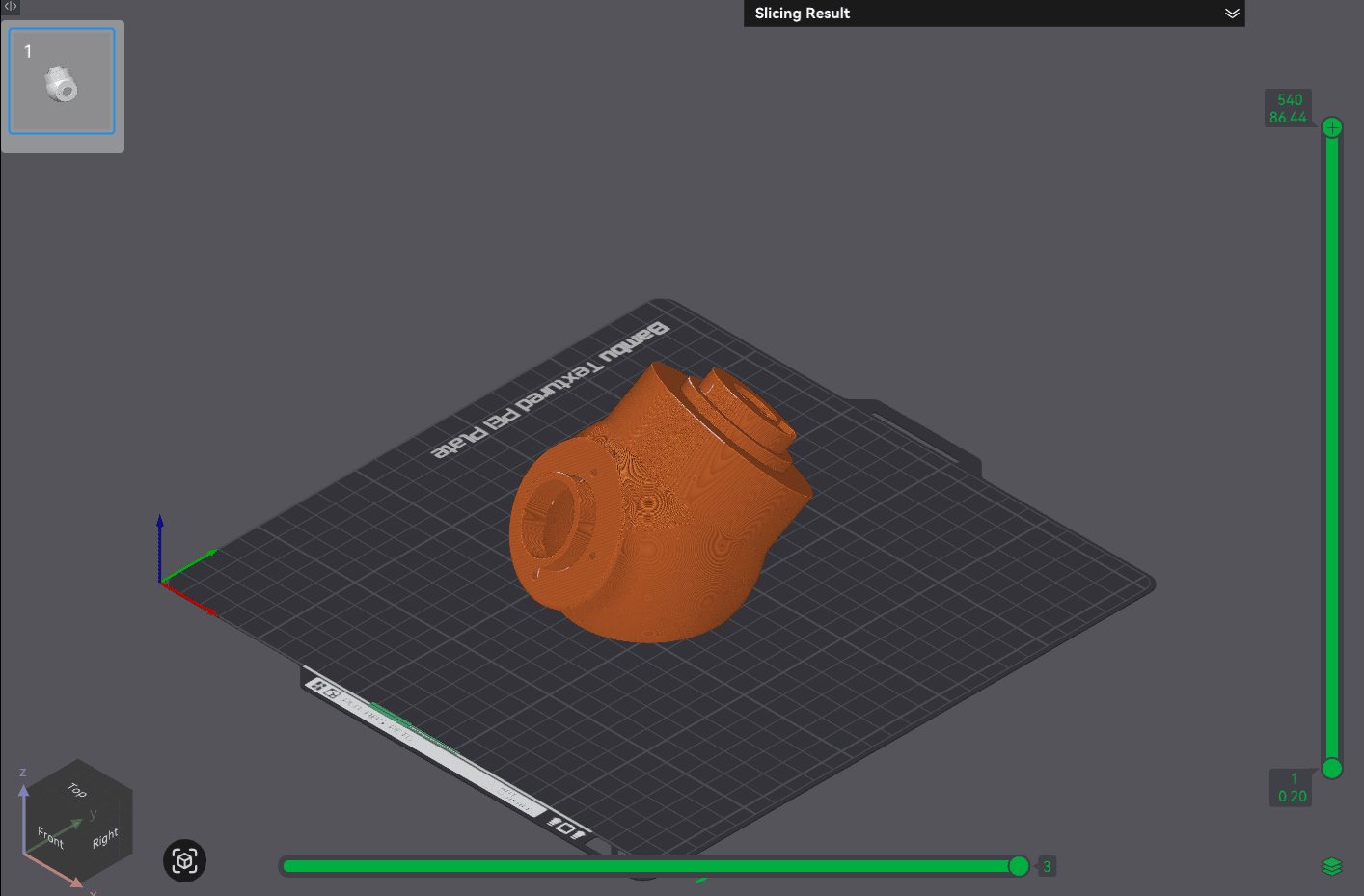

Post-Sliced View (Slicer Preview)
Raft not required.
2. ShoulderCoverLeft

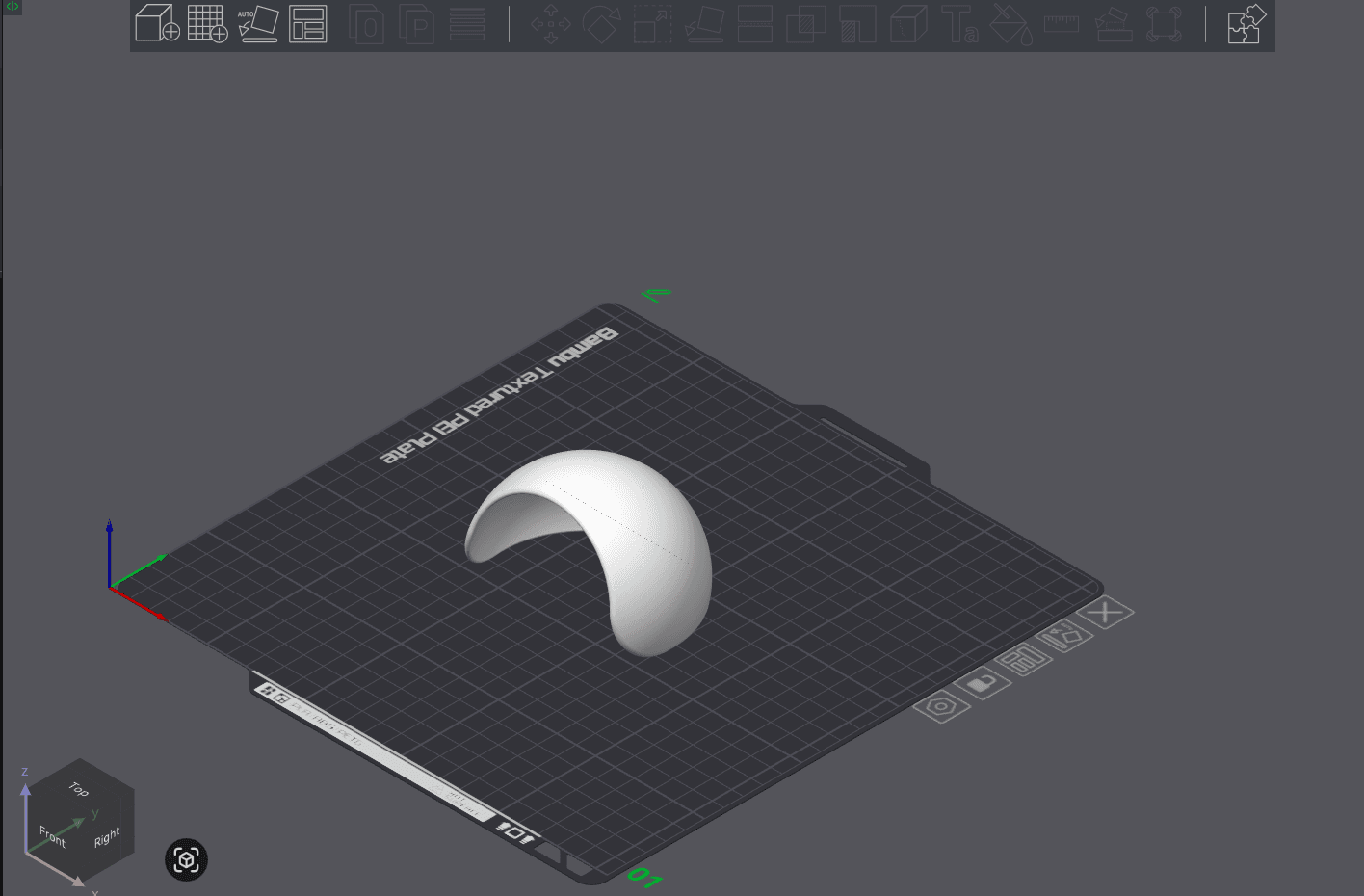

Pre-Sliced View (Raw Model on Build Plate)

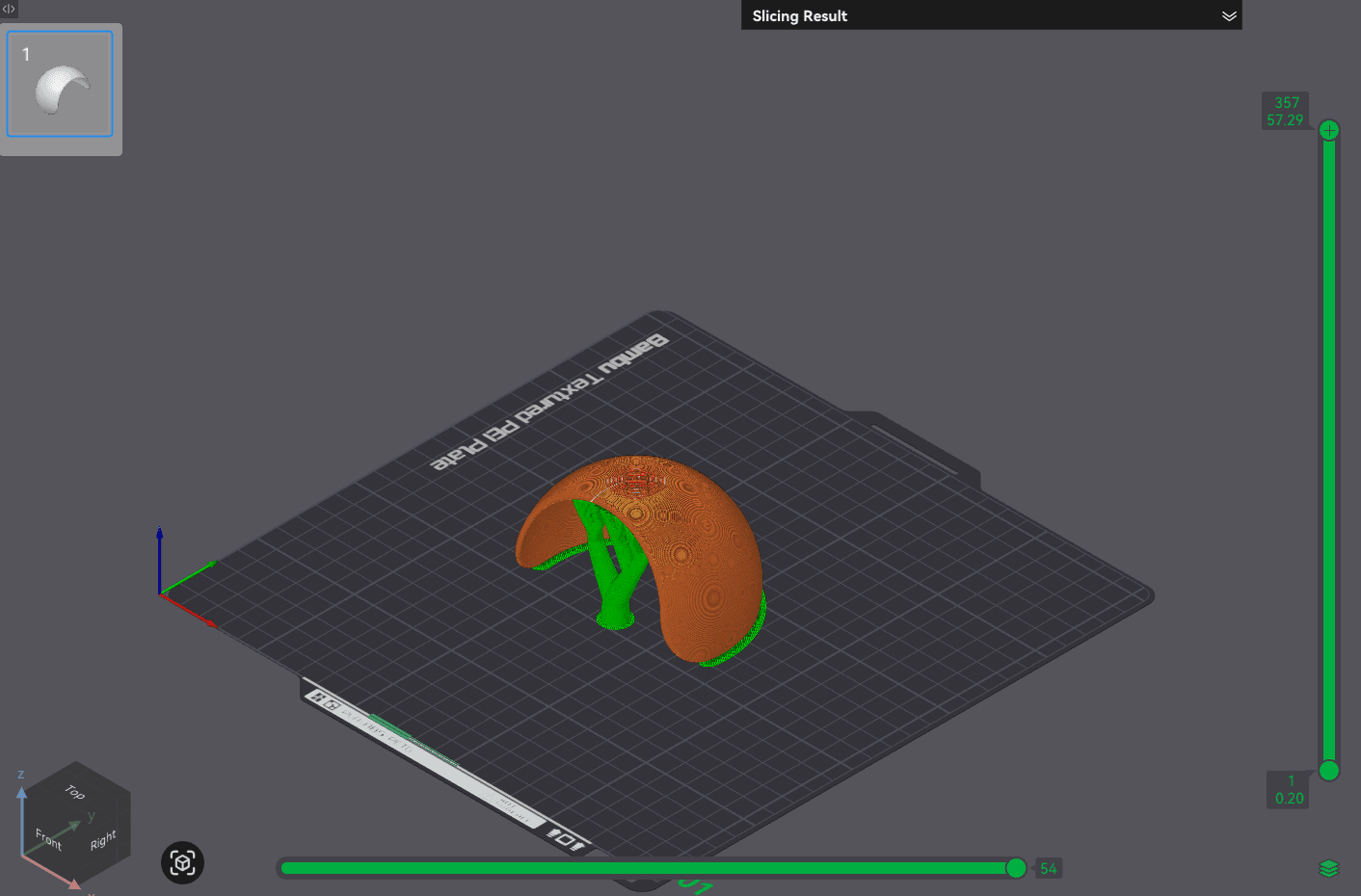

Post-Sliced View (Slicer Preview)
Raft is recommended with 2 layers and 0.15 mm raft contact Z distance.
3. UpperArmLeft

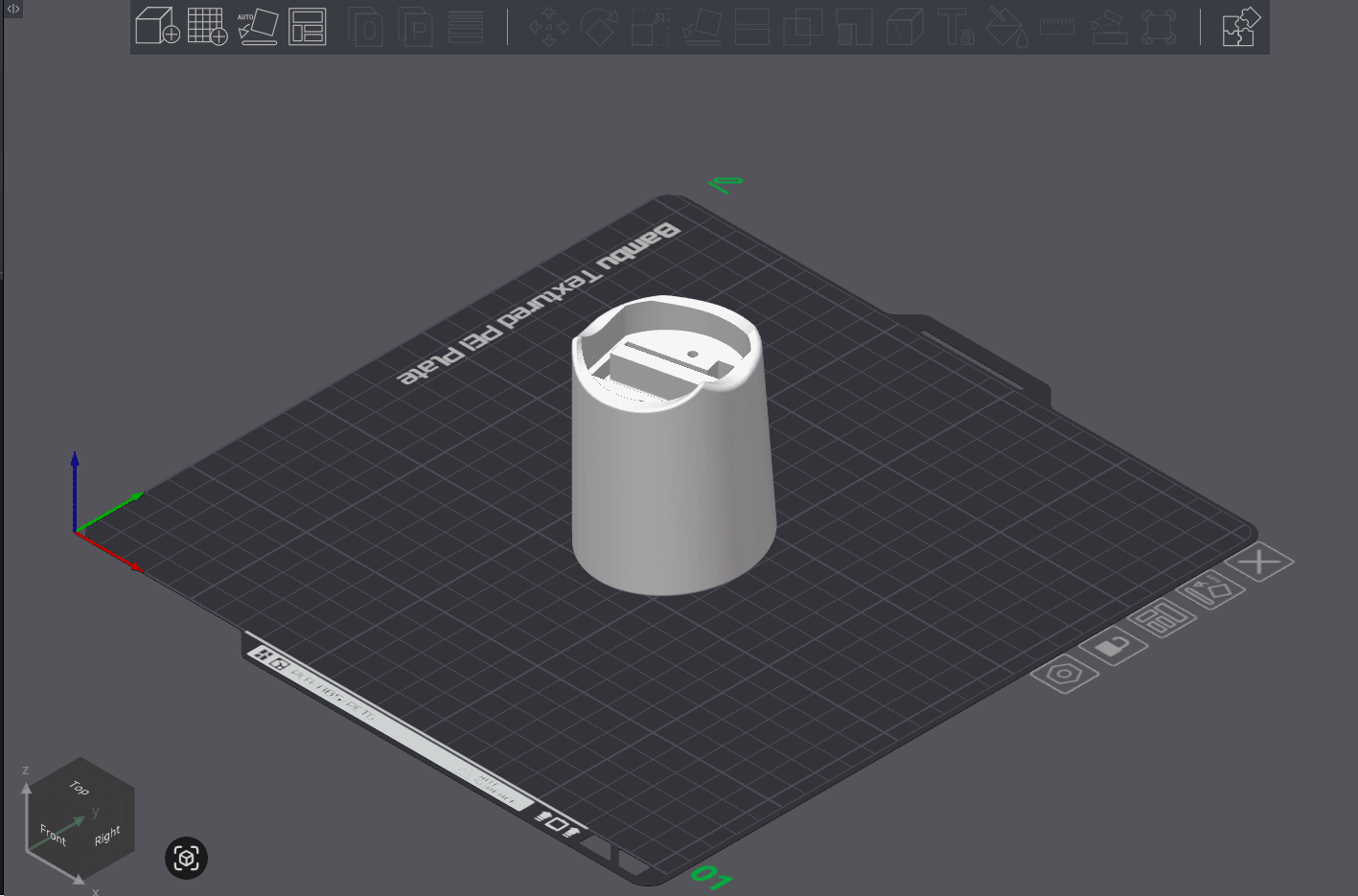

Pre-Sliced View (Raw Model on Build Plate)

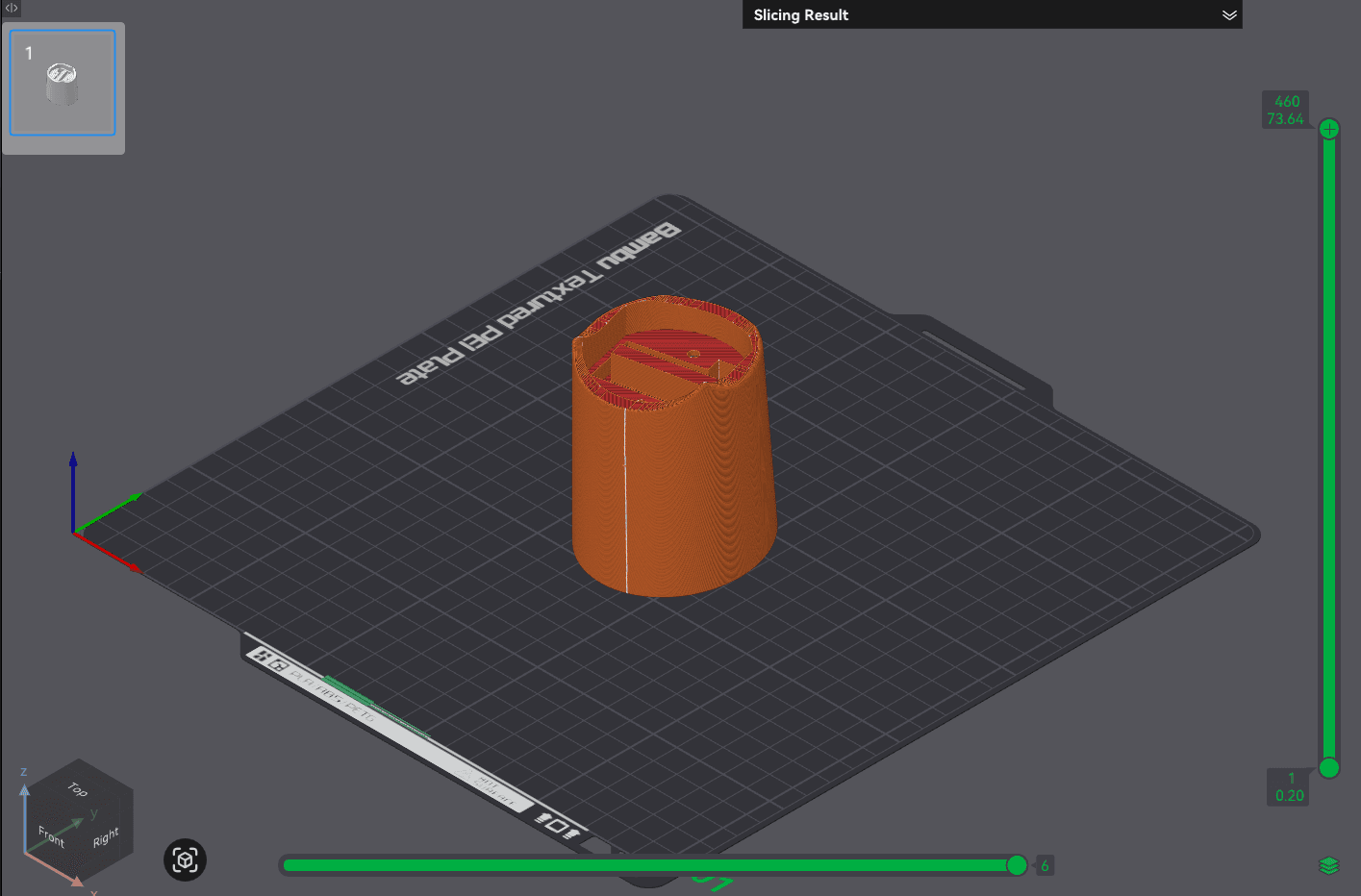

Post-Sliced View (Slicer Preview)
Raft not required.
4. ElbowServoMountLeft

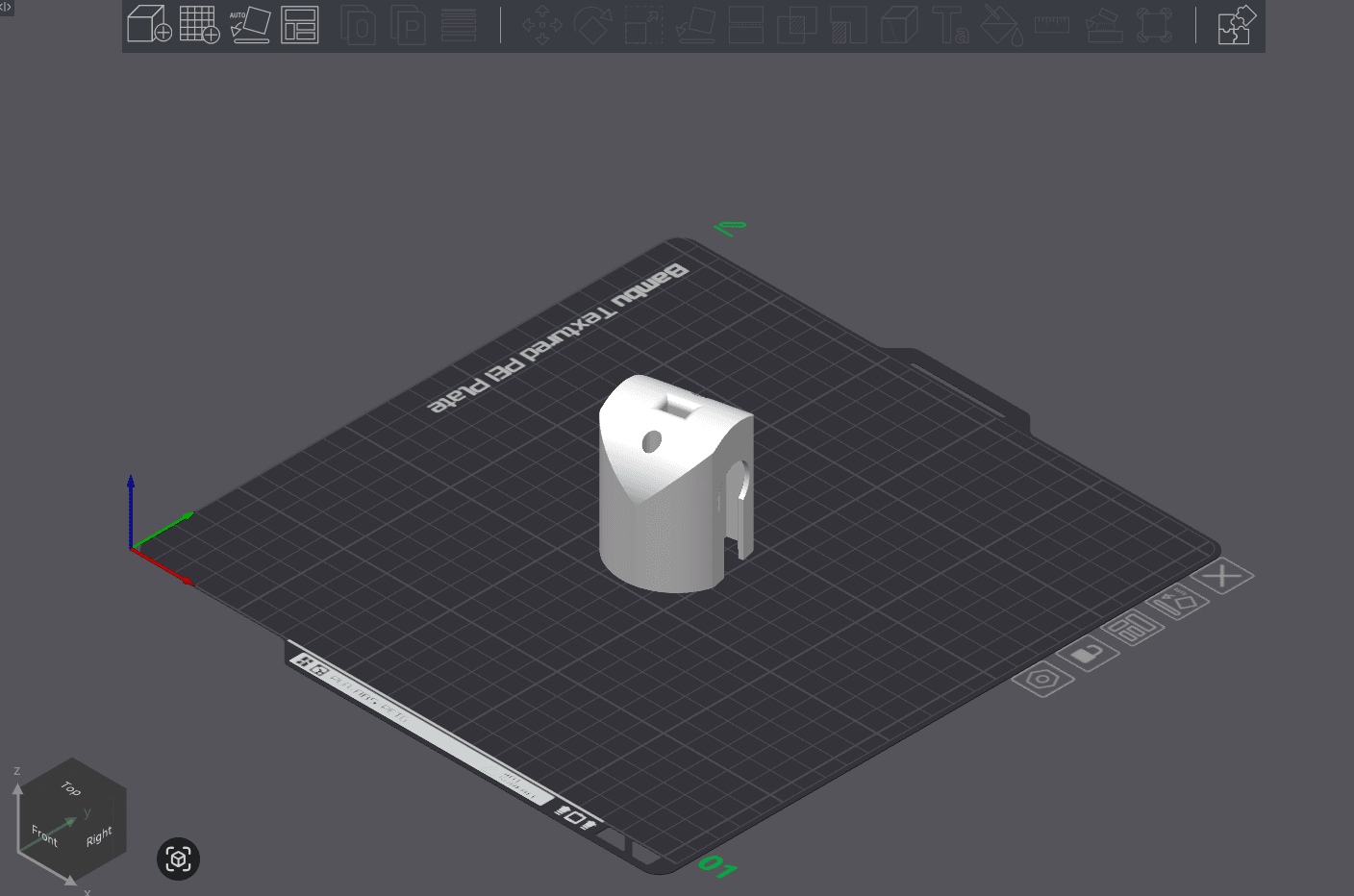

Pre-Sliced View (Raw Model on Build Plate)

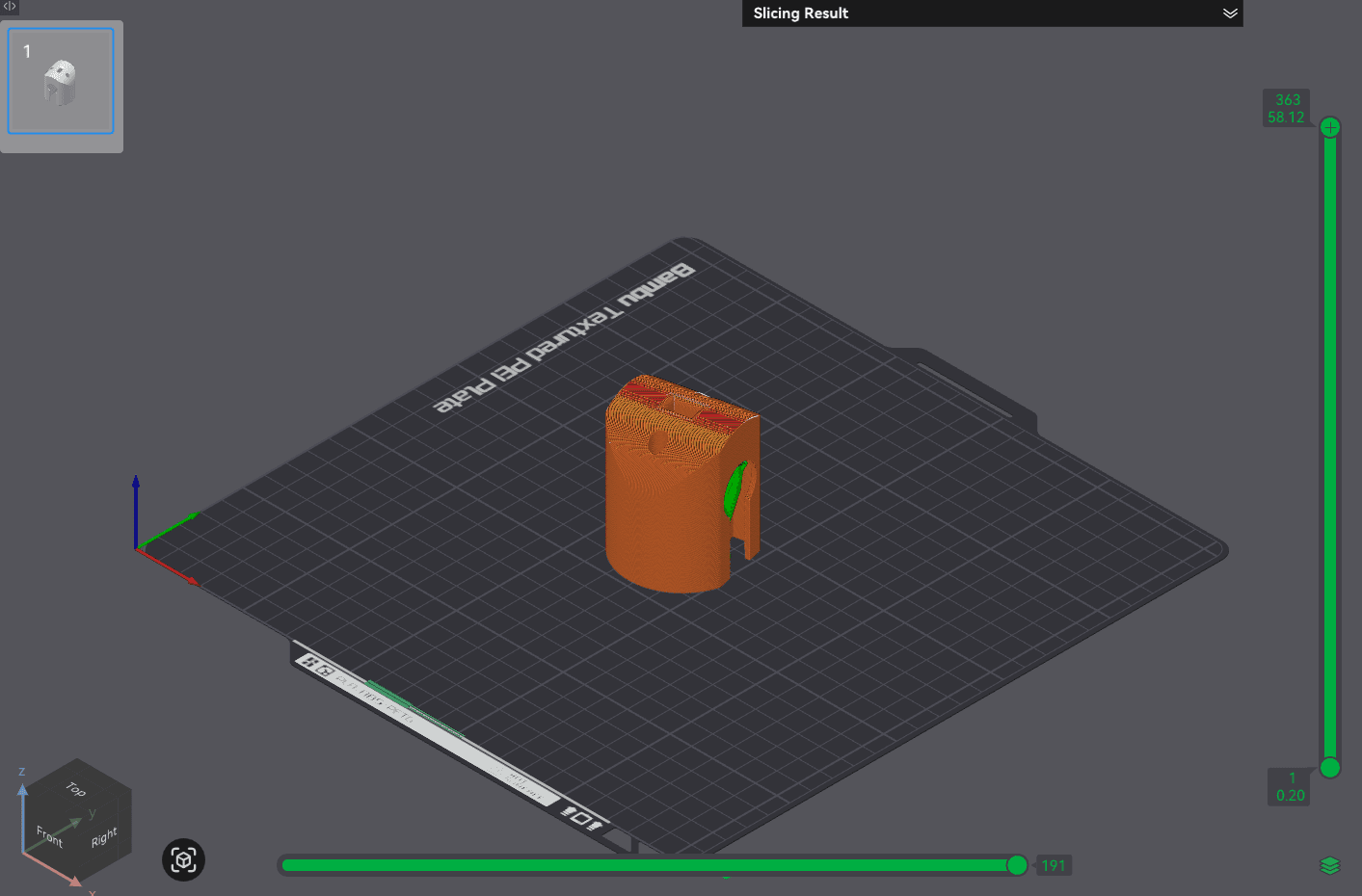

Post-Sliced View (Slicer Preview)
Raft not required.
5. ElbowJointLeft

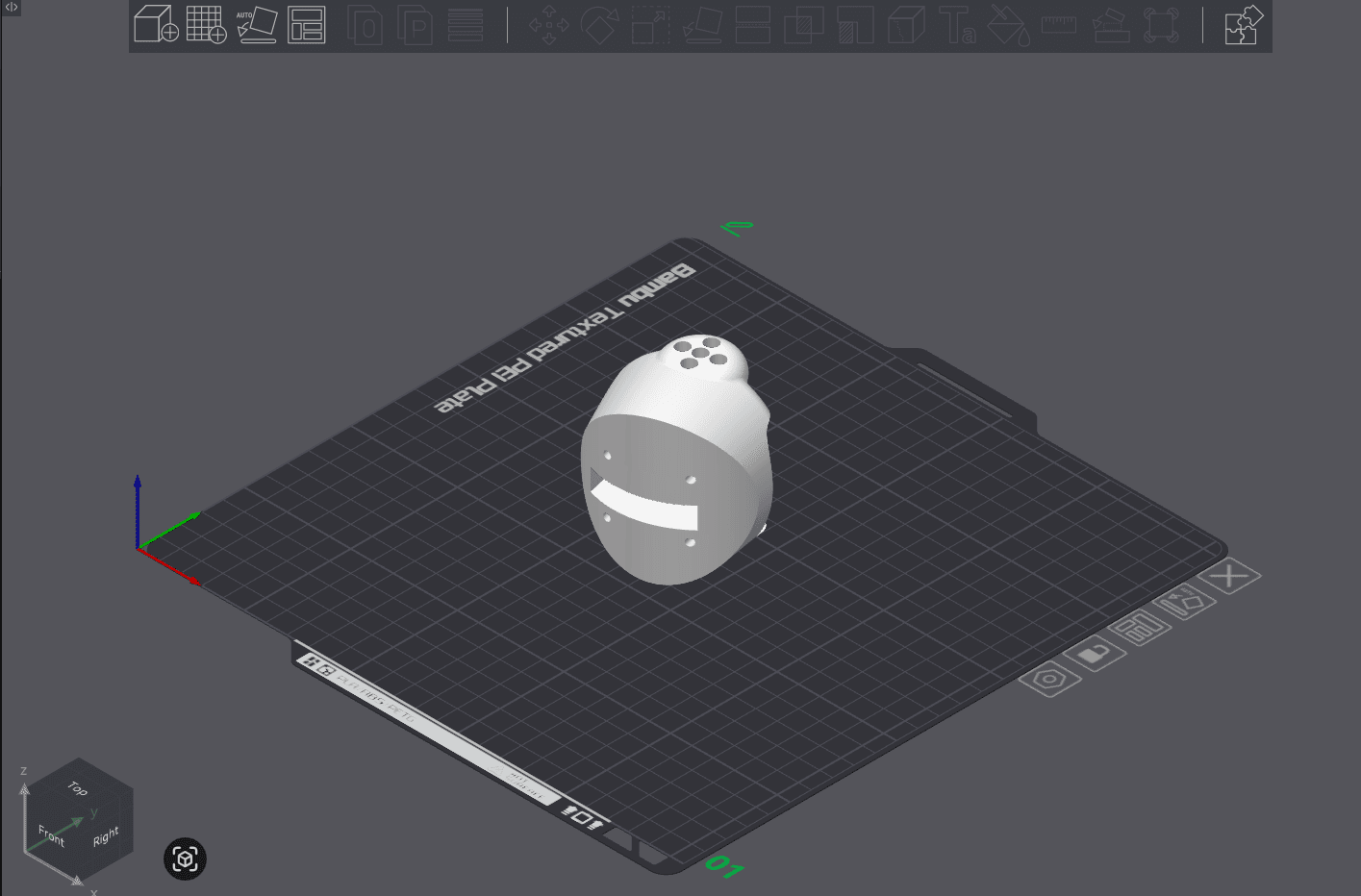

Pre-Sliced View (Raw Model on Build Plate)

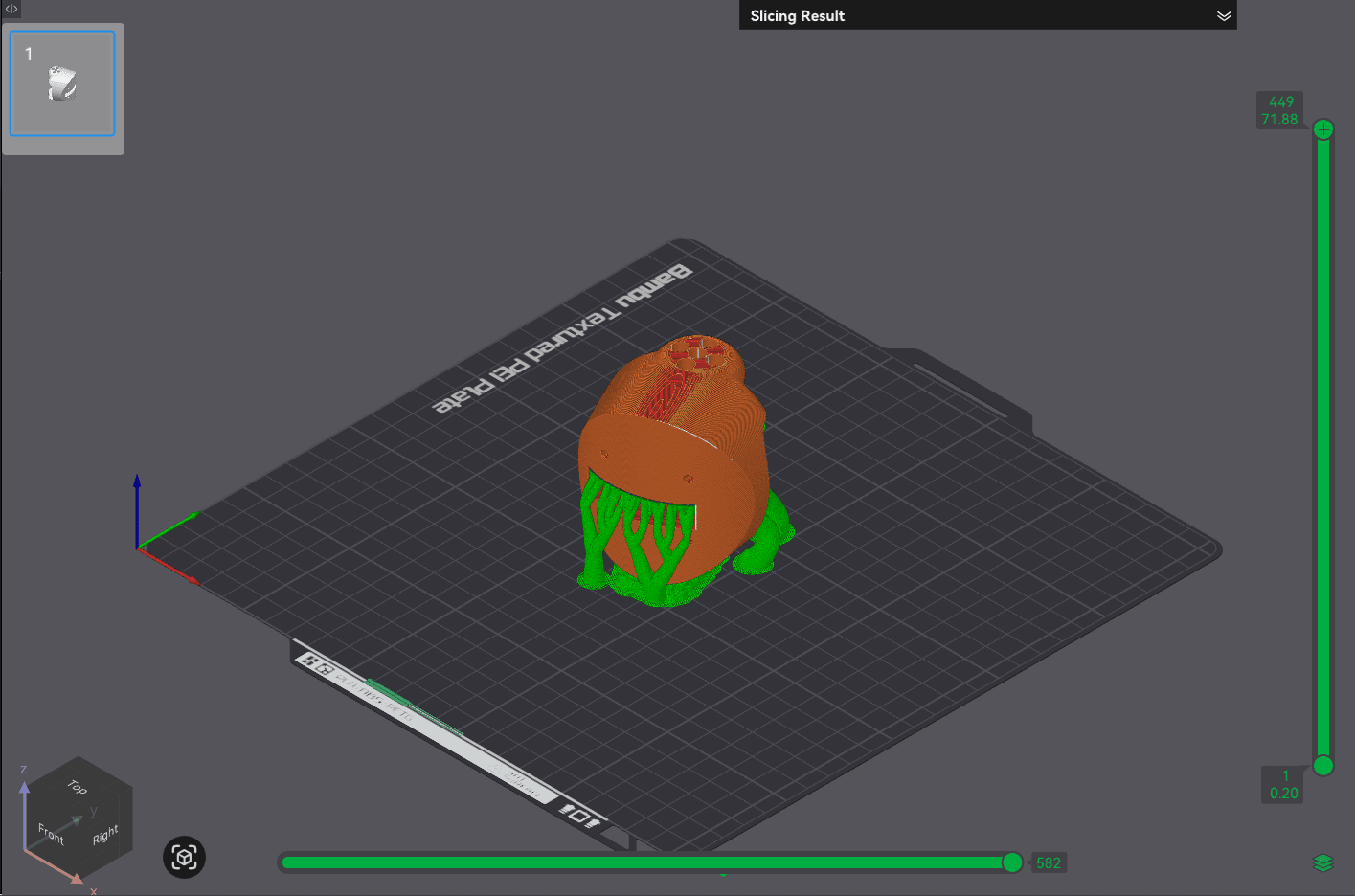

Post-Sliced View (Slicer Preview)
Raft not required.
6. WristJointLeft

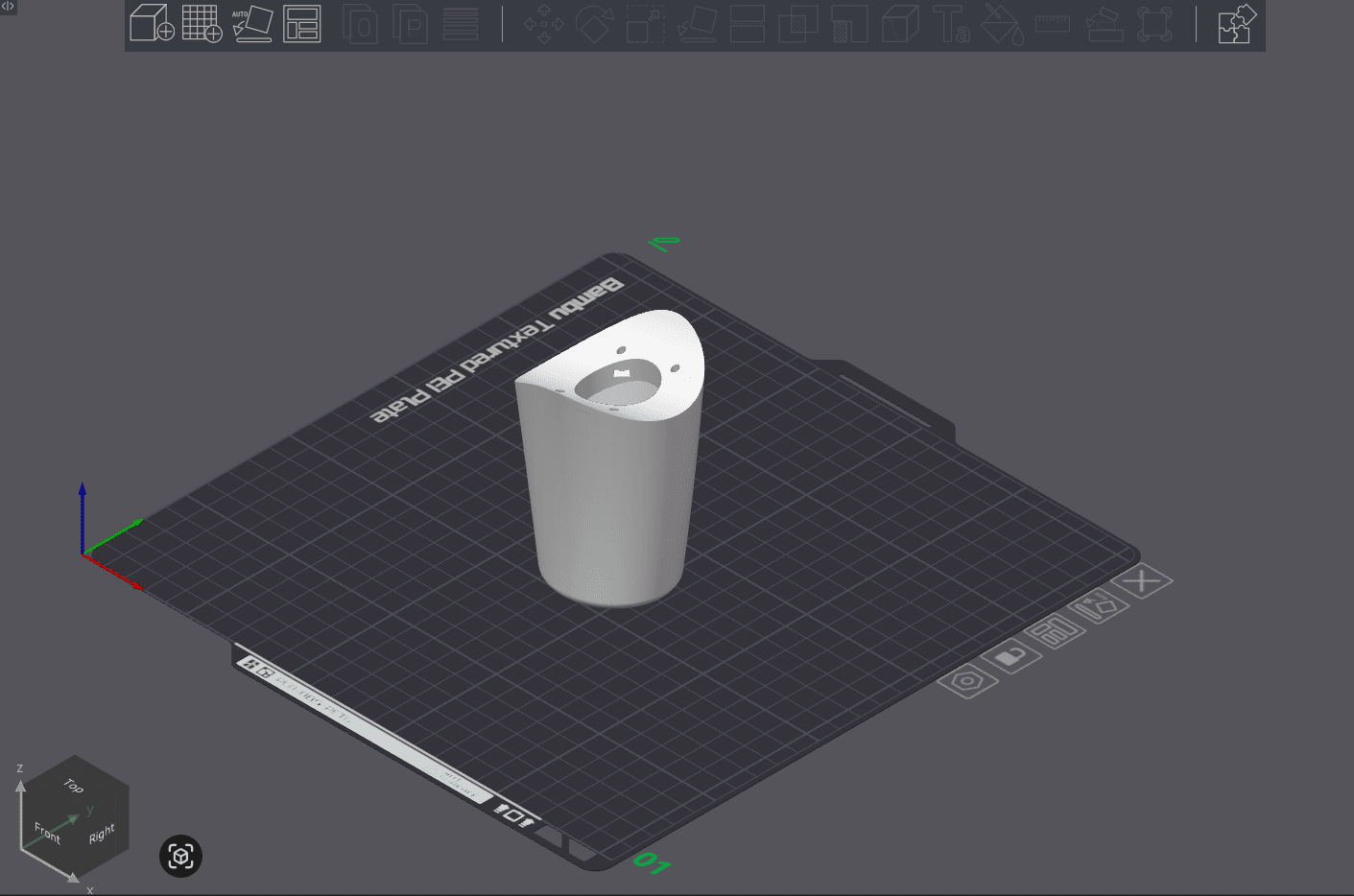

Pre-Sliced View (Raw Model on Build Plate)

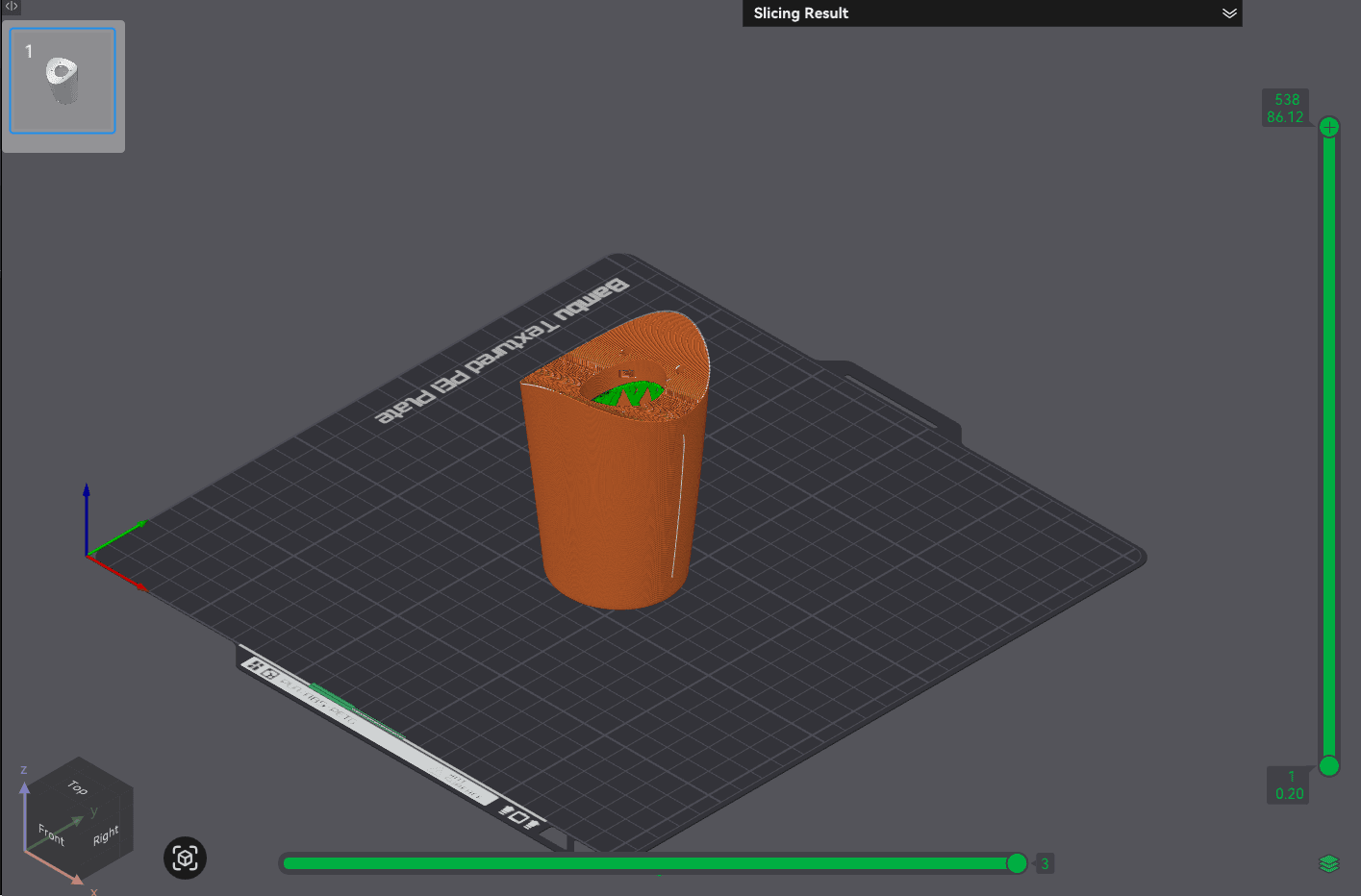

Post-Sliced View (Slicer Preview)
Raft not required.
7. PalmLeft

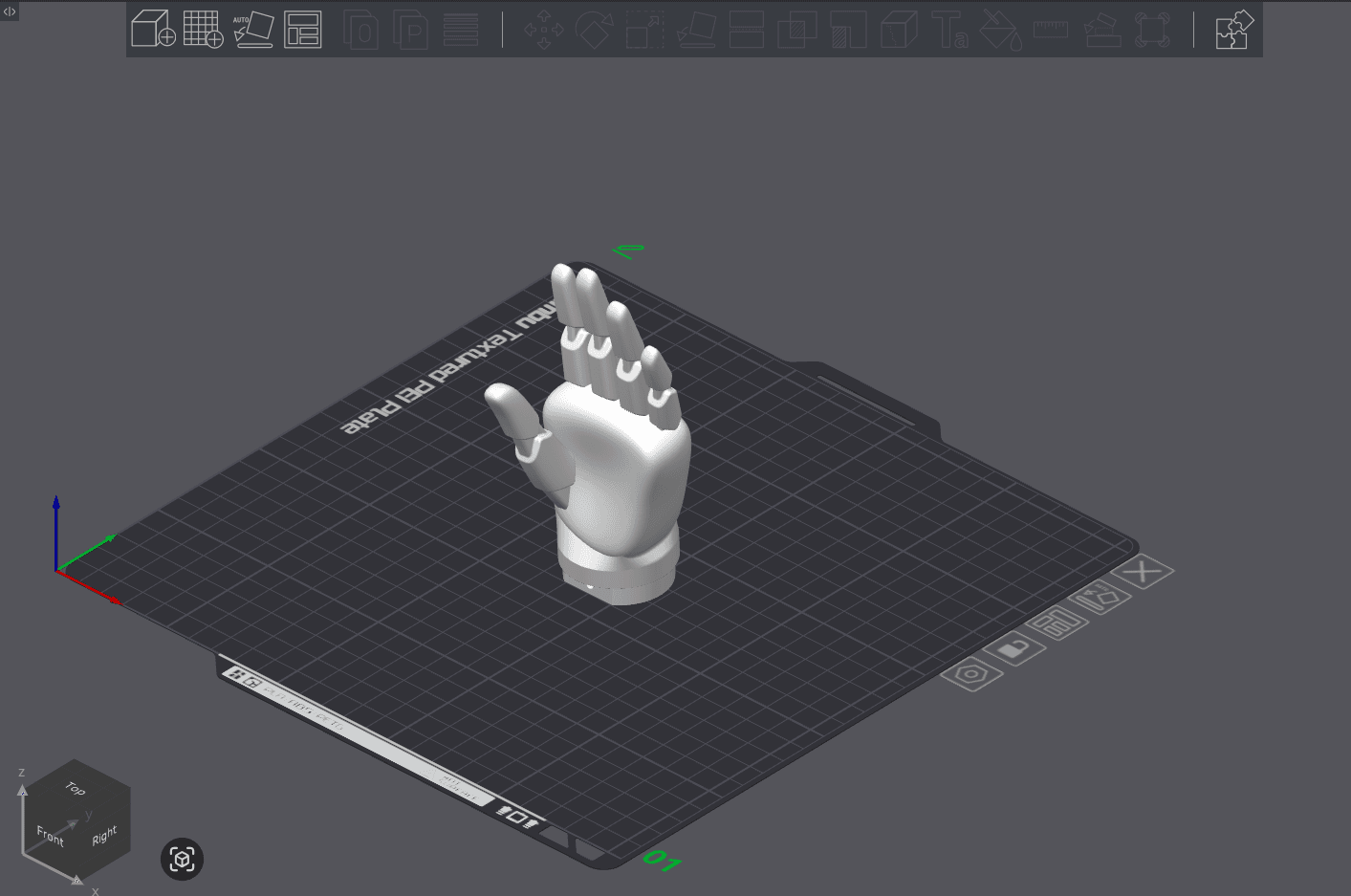

Pre-Sliced View (Raw Model on Build Plate)

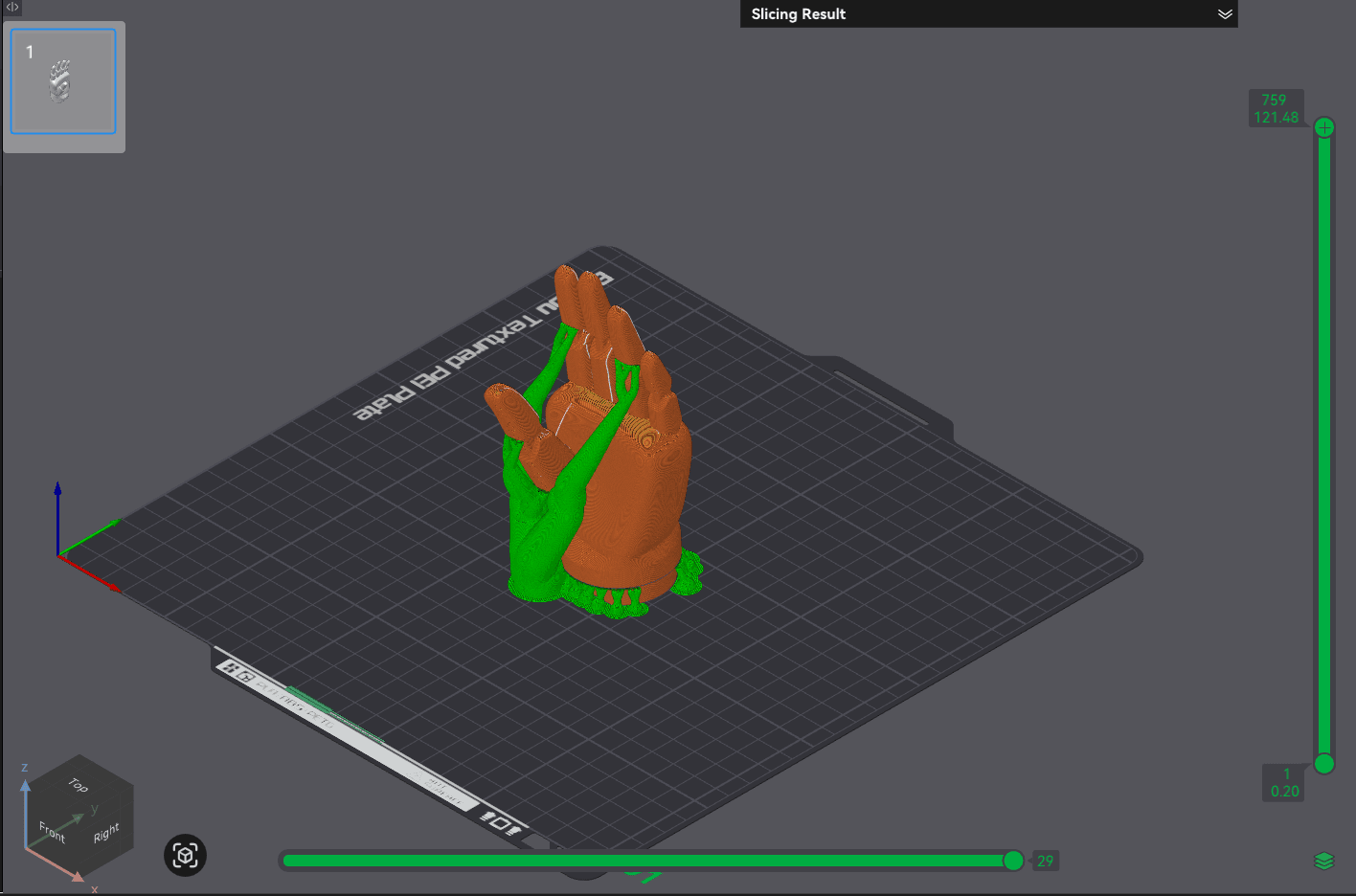

Post-Sliced View (Slicer Preview)
Raft not required.
